Name: Diotec Si high voltage rectifier BY8 D7.3x22 8000 V 0.50 A
Brand: Diotec
SKU: 2807354
Availability: BackOrder

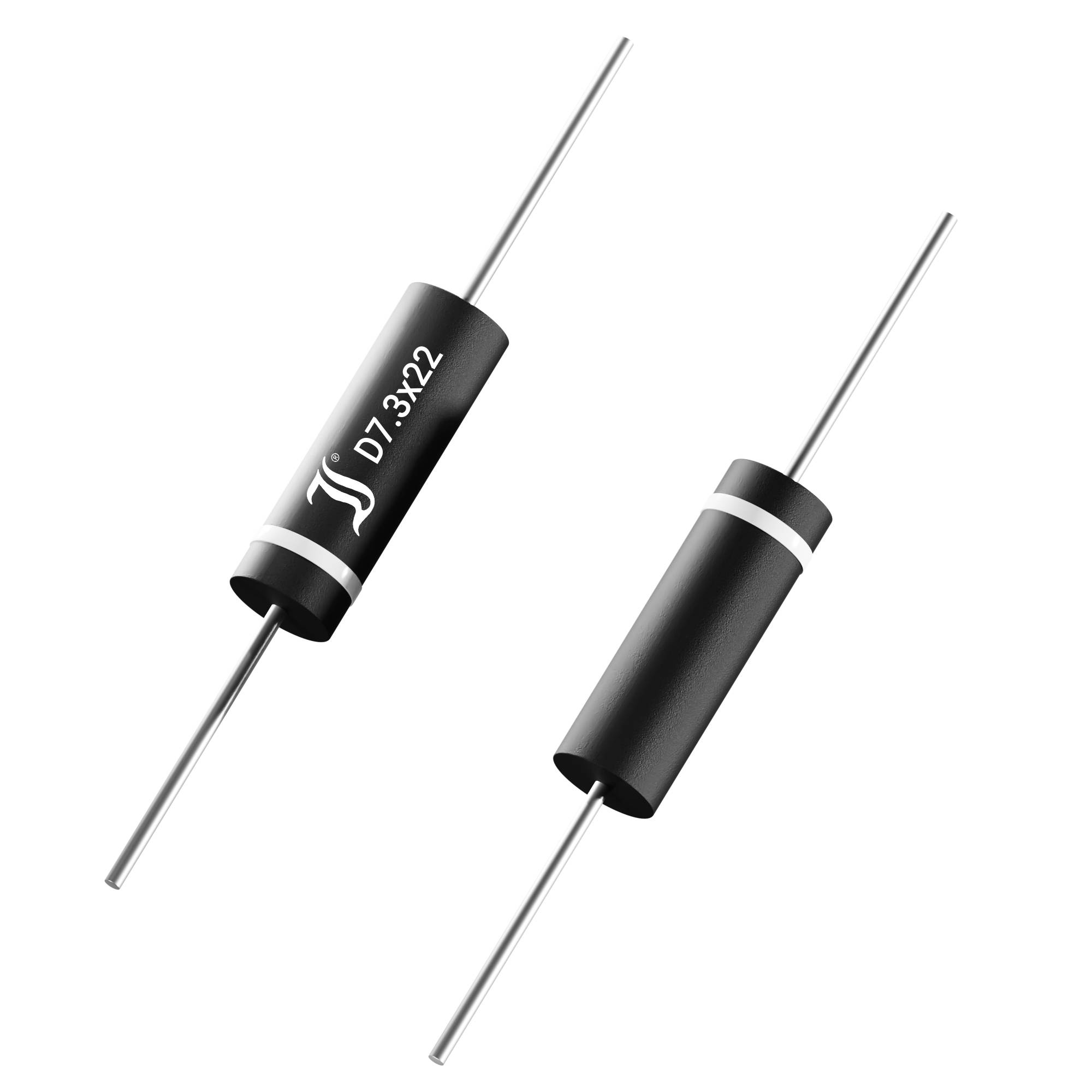

Two small cylindrical components with long wire connections, one marked 'D7 z3x22', likely electronic components.

Image similar

Product type

Si high voltage rectifier

Enclosure

D7.3x22

Forward current I(F)

0.50 A

Reverse voltage U(R)

8000 V

Forward voltage U(F)

8 V

Datasheet (PDF)

Dispatches on Thu, 7 Jan 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 20

Total (€ 1.78866 / piece)

€ 35.77

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type AxialHousing: D7.3x22Periodic Peak Reverse Voltage - VRRM 8000 VContinuous current - IFAV 0.50 AReverse delay time - trr: NsJunction temperature - Tjmax 150 °CSurge current - IFSM 30.00 AForward voltage - VF 8.00 VIF 0.50 AReverse current - IR 1,000 µAVR 8000 VLock layer capacity - CJ: PFVR V

Type: BY8

Product type: Si high voltage rectifier

Enclosure: D7.3x22

Manufacturer: Diotec

Forward current I(F): 0.50 A

Reverse voltage U(R): 8000 V

Forward voltage U(F): 8 V

Reverse leakage current I(r): 1 µA

Operating temperature (max.): 150 °C

Mounting type: Through-hole mounting

I(FSM) 50Hz: 30 A

RoHS-compliant: Yes

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Enclosure

Forward voltage U(F)

Forward current I(F)

Reverse voltage U(R)

Mounting type

Diotec Si high voltage rectifier BY8 D7.3x22 8000 V 0.50 A

Item no:2807354

Dispatches on Thu, 7 Jan 2027

Conrad Electronic

This article

D7.3x22

8 V

0.50 A

8000 V

Through-hole mounting

Piece(s)

Minimum order quantity: 20

Multiple: 1

€ 1.78866^*

Diotec Si high voltage rectifier BY4 D7.3x22 4000 V 1 A

Item no:2807347

Dispatches on Thu, 7 Jan 2027

Conrad Electronic

D7.3x22

4 V

1 A

4000 V

Through-hole mounting

Piece(s)

Minimum order quantity: 20

Multiple: 1

€ 1.39888^*

Diotec Si high voltage rectifier BY6 D7.3x22 6000 V 1 A

Item no:2807352

Dispatches on Thu, 7 Jan 2027

Conrad Electronic

D7.3x22

6 V

1 A

6000 V

Through-hole mounting

Piece(s)

Minimum order quantity: 20

Multiple: 1

€ 1.66243^*

Diotec Si high voltage rectifier DD1000 D3x12 10000 V 1 A

Item no:2807618

Dispatches on Fri 23 Oct

2690 Piece(s)Conrad Electronic

D3x12

40 V

1 A

10000 V

Through-hole mounting

Piece(s)

Minimum order quantity: 50

Multiple: 1

€ 0.54487^*

Diotec Si high voltage rectifier DD1200 D3x12 12000 V 1 A

Item no:2807619

Dispatches on Thu, 7 Jan 2027

Conrad Electronic

D3x12

40 V

1 A

12000 V

Through-hole mounting

Piece(s)

Minimum order quantity: 40

Multiple: 1

€ 0.57413^*

Diotec Si high voltage rectifier DD1400 D3x12 14000 V 1 A

Item no:2807620

Dispatches on Thu, 7 Jan 2027

Conrad Electronic

D3x12

40 V

1 A

14000 V

Through-hole mounting

Piece(s)

Minimum order quantity: 40

Multiple: 1

€ 0.60494^*

Diotec Si high voltage rectifier DD1600 D3x12 16000 V 1 A

Item no:2807621

Dispatches on Thu, 7 Jan 2027

Conrad Electronic

D3x12

40 V

1 A

16000 V

Through-hole mounting

Piece(s)

Minimum order quantity: 40

Multiple: 1

€ 0.63066^*

Diotec Si high voltage rectifier DD1800 D3x12 18000 V 1 A

Item no:2807623

Fast track dispatch on Wed 21 Oct

3492 Piece(s)Conrad Electronic

D3x12

40 V

1 A

18000 V

Through-hole mounting

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 0.87166^*

Diotec Si high voltage rectifier DD300 D2.5x6.5 3000 V 1 A

Item no:2807624

Fast track dispatch on Wed 21 Oct

4759 Piece(s)Conrad Electronic

D2.5x6.5

40 V

1 A

3000 V

Through-hole mounting

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.19829^*

Diotec Si high voltage rectifier DD600 D2.5x6.5 6000 V 1 A

Item no:2807625

Dispatches on Fri 23 Oct

2900 Piece(s)Conrad Electronic

D2.5x6.5

40 V

1 A

6000 V

Through-hole mounting

Piece(s)

Minimum order quantity: 50

Multiple: 1

€ 0.51433^*
