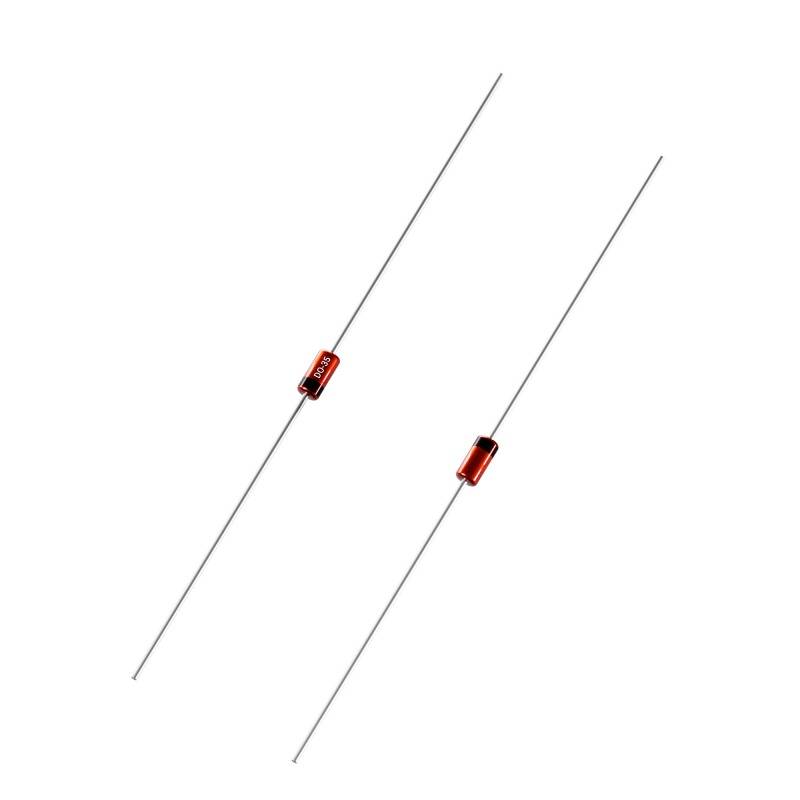

Two red electronic diodes with metal connections on a white background, used for current direction control in circuits.

Two red electronic diodes with metal connections on a white background, used for current direction control in circuits.

Image similar

Product type

Small-signal diode

Enclosure

DO 35

Forward current I(F)

0.10 A

Reverse voltage U(R)

100 V

Forward voltage U(F)

1 V

Datasheet (PDF)

Diotec

Dispatches on Wed 21 Oct

742 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 1000

Total (€ 0.02977 / piece)

€ 29.77

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type AxialDO-35 housingPeriodic Peak Reverse Voltage - VRRM 100 VContinuous current - IFAV 0.25 AJunction temperature - Tjmax 200 °CReverse delay time - trr: 50 nsSurge current - IFSM 5.00 AForward voltage - VF 1.00 VIF 0.10 AReverse current - IR 0,100 µAVR 100 VLock layer capacity - CJ: PFVR V

Type: BAV19

Product type: Small-signal diode

Enclosure: DO 35

Manufacturer: Diotec

Forward current I(F): 0.10 A

Reverse voltage U(R): 100 V

Forward voltage U(F): 1 V

Reverse leakage current I(r): 0.100 µA

Operating temperature (max.): 200 °C

Mounting type: Through-hole mounting

I(FSM) 50Hz: 5 A

Reverse recovery time T(rr): 50 ns

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2807290 Diotec Small-signal diode BAV19 DO 35 100 V 0.10 A

User & Safety Instructions

User & Safety Instructions 2807290 Diotec Small-signal diode BAV19 DO 35 100 V 0.10 A
