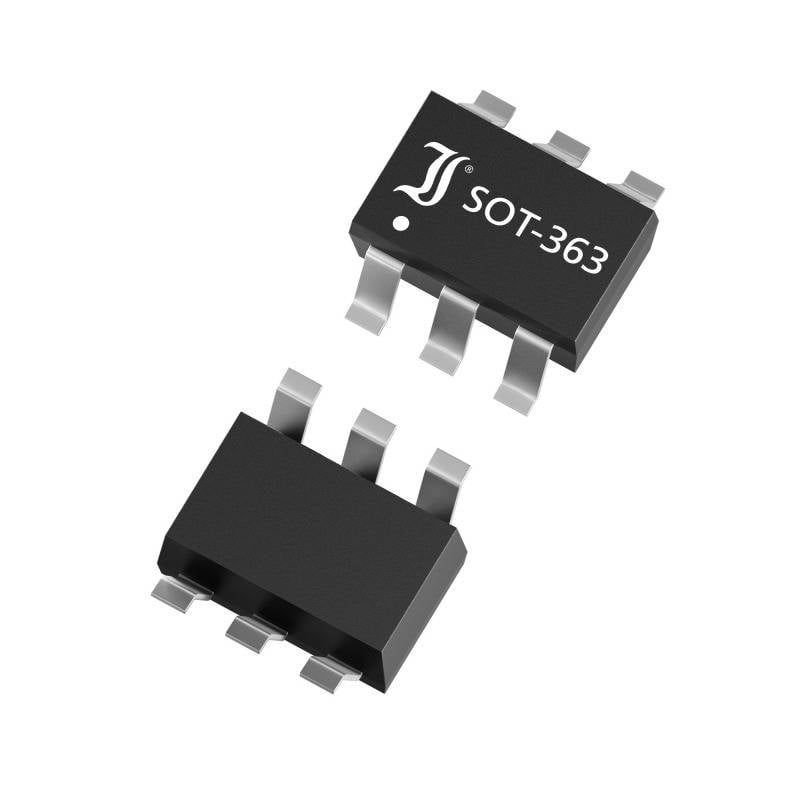

In the figure, two black electronic SMD components in SOT-363 packages with six connections each are shown.

In the figure, two black electronic SMD components in SOT-363 packages with six connections each are shown.

Image similar

Product type

Small-signal diode

Enclosure

SOT 363

Forward current I(F)

5 A

Reverse voltage U(R)

80 V

Forward voltage U(F)

1 V

Datasheet (PDF)

Diotec

Dispatches on Thu, 7 Jan 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 500

Total (€ 0.07152 / piece)

€ 35.76

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type SMDSOT-363 housingPeriodic Peak Reverse Voltage - VRRM 100 VContinuous current - IFAV 0.20 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 4 nsSurge current - IFSM 0.50 AForward voltage - VF 1.00 VIF 0.05 AReverse current - IR 0,500 µAVR 80 VLock layer capacity - CJ 2 pFVR 0 V

Type: BAV70DW

Product type: Small-signal diode

Enclosure: SOT 363

Manufacturer: Diotec

Forward current I(F): 5 A

Reverse voltage U(R): 80 V

Forward voltage U(F): 1 V

Reverse leakage current I(r): 0.500 µA

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

I(FSM) 50Hz: 0.50 A

Reverse recovery time T(rr): 4 ns

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2807313 Diotec Small-signal diode BAV70DW SOT 363 80 V 5 A

User & Safety Instructions

User & Safety Instructions 2807313 Diotec Small-signal diode BAV70DW SOT 363 80 V 5 A
