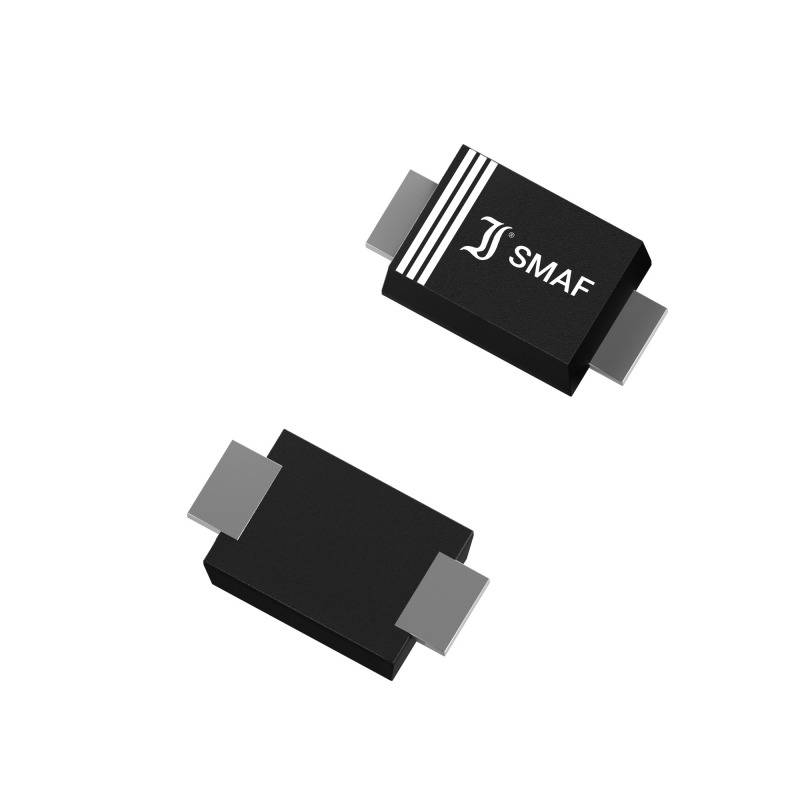

Image similar
Diotec TVS diode TPSMA6L12A SMAF 14.70 V 600 W
EAN:
Part number:
Item no:
Product type
TVS diode
Enclosure
SMAF
Reverse voltage U(R)
12 V
Terminal voltage U(CL)
19.90 V
Power (max) P(TOT)
600 W
Datasheet (PDF)
Number
Minimum order quantity: 250
Total (€ 0.0864 / piece)
€ 21.60
incl. VAT
14-day return policy included
Highlights & Details
TVS diode
Our service for you
Technical specifications
- Type SMDSMAF housingTermination of voltage - VBRmin 13.30 VVBRmax 14.70 VIt 1 mAPulse power loss - PPPM 600 WJunction temperature - Tjmax 150 °CReverse voltage - VWM 12.0 VMaximum reverse current ID @ VWM: 1,000 µAMaximum limit voltage - VC 19.90 VIPPM 30.20 ALock layer capacity - CJ: PFVR V
- Type
TPSMA6L12A
- Product type
TVS diode
- Enclosure
SMAF
- Manufacturer
Diotec
- Reverse voltage U(R)
12 V
- Breakdown voltage U(BR)
14.70 V
- Terminal voltage U(CL)
19.90 V
- Peak current I(pp)
30.20 A
- Power (max) P(TOT)
600 W
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Operating temperature (max.)
150 °C
Documents & Downloads
Datasheet
Datasheet 2811311 Diotec TVS diode TPSMA6L12A SMAF 14.70 V 600 W
User & Safety Instructions
User & Safety Instructions 2811311 Diotec TVS diode TPSMA6L12A SMAF 14.70 V 600 W
