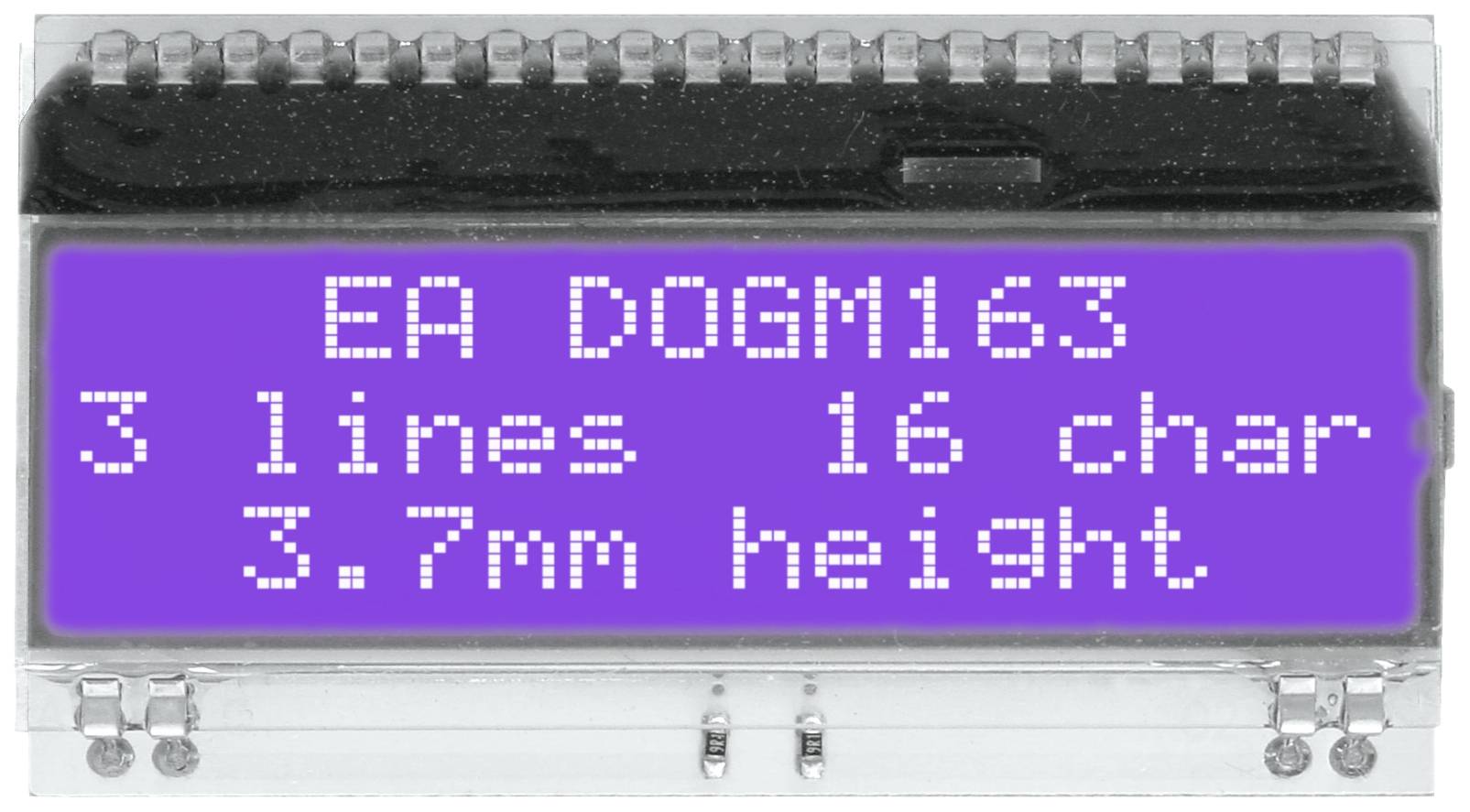

'LCD Display EA DOGM163 with 3 lines, 16 characters per line and a character height of 3.7 mm.'

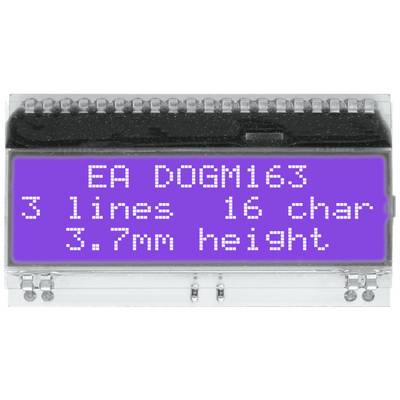

'LCD Display EA DOGM163 with 3 lines, 16 characters per line and a character height of 3.7 mm.'

DISPLAY VISIONS

Product type

Seven-segment display

Forward voltage U(F)

3.3 V

Width

55 mm

Height

31 mm

Digit height

3.65 mm

EAN:

Part number:

Item no:

Fast track dispatch on Fri 30 Oct

2 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 13.99 / piece)

€ 13.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: Seven-segment display

Forward voltage U(F): 3.3 V

Forward current I(F): 0.25 mA

Factory colour: Blue

Width: 55 mm

Height: 31 mm

Digit height: 3.65 mm

No. of digits: 3

Dim: (W x H) 55 mm x 31 mm

RoHS-compliant: Yes

Description

3-line display OF THE DOG series with 16 characters each in blue. Lettering 3.65 mm. Flat COG design. For 5V and 3.3V - depending on external wiring. With pins for direct PCB mounting (grid 2.54mm). Contrast adjustable by command. Incl. Controller ST7036 with character set (similar to HD44780). Up to 8 freely definable characters. Available in various other colors and designs. The lighting is ordered separately and is absolutely necessary in this version. We recommend the white lighting.

This text is machine translated.

Description

3-line display OF THE DOG series with 16 characters each in blue. Lettering 3.65 mm. Flat COG design. For 5V and 3.3V - depending on external wiring. With pins for direct PCB mounting (grid 2.54mm). Contrast adjustable by command. Incl. Controller ST7036 with character set (similar to HD44780). Up to 8 freely definable characters. Available in various other colors and designs. The lighting is ordered separately and is absolutely necessary in this version. We recommend the white lighting.

This text is machine translated.
