Buy DISPLAY VISIONS Seven-segment display Yellow-green 3.65 mm 3.3 V, 5 V No. of digits: 3 | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

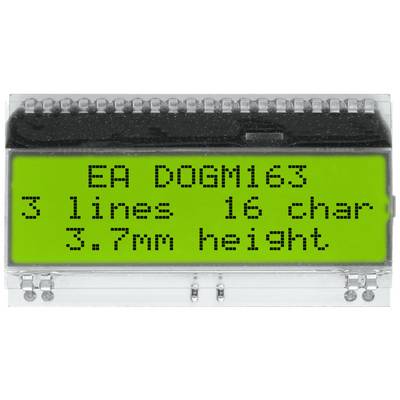

LCD screen with green background displays text: 'EA DOGM163 3 lines 16 char 3.7mm height'.

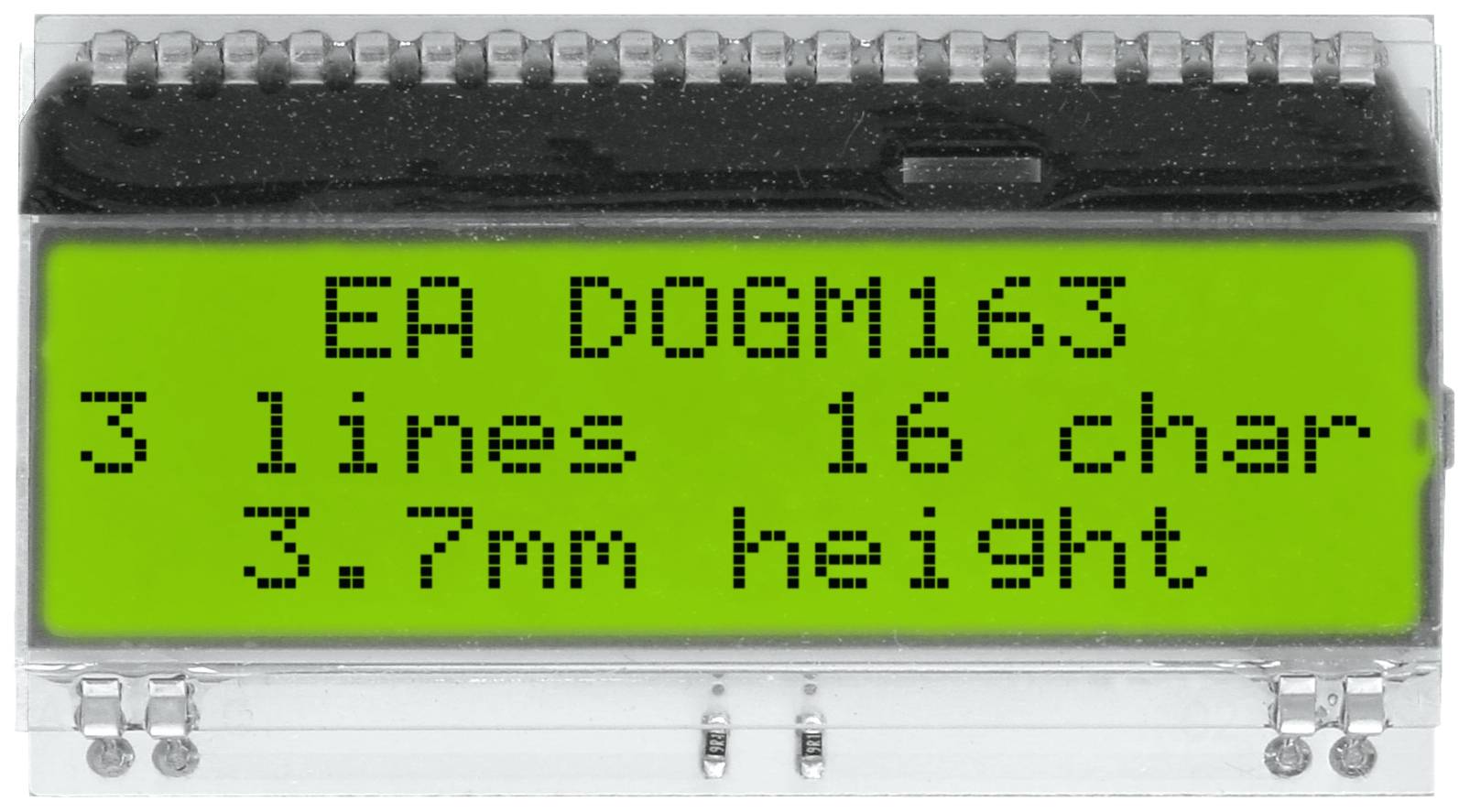

LCD screen with green background displays text: 'EA DOGM163 3 lines 16 char 3.7mm height'.

DISPLAY VISIONS

Product type

Seven-segment display

Forward voltage U(F)

3.3 V

5 V

Width

55 mm

Height

31 mm

Digit height

3.65 mm

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

350 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 16.99 / piece)

€ 16.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Seven-segment display

Forward voltage U(F): 3.3 V
5 V

Forward current I(F): 0.25 mA

Factory colour: Yellow-green

Width: 55 mm

Height: 31 mm

Digit height: 3.65 mm

No. of digits: 3

Dim: (W x H) 55 mm x 31 mm

RoHS-compliant: Yes

Description

3-line display OF THE DOG series with 16 characters each in yellow/green. Lettering 3.65 mm. Flat COG design. For 5V and 3.3V - depending on external wiring. With pins for direct PCB mounting (grid 2.54mm). Contrast adjustable by command. Incl. Controller ST7036 with character set (similar to HD44780). Up to 8 freely definable characters. Available in various other colors and designs. The lighting is ordered separately. We recommend the yellow/green lighting.

This text is machine translated.

Description

3-line display OF THE DOG series with 16 characters each in yellow/green. Lettering 3.65 mm. Flat COG design. For 5V and 3.3V - depending on external wiring. With pins for direct PCB mounting (grid 2.54mm). Contrast adjustable by command. Incl. Controller ST7036 with character set (similar to HD44780). Up to 8 freely definable characters. Available in various other colors and designs. The lighting is ordered separately. We recommend the yellow/green lighting.

This text is machine translated.
