Donau Elektronik 119-19 Strand 1 x 0.14 mm² Grey 100 m
EAN:
Part number:
Item no:
Product type
Strand
No. of leads
1 x
Cross section (each core)
0.14 mm²
Outside Ø
2.70 mm
Content
100 m
Datasheet (PDF)
Quantity (Set(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 0.22
€ 21.84
3
1 M = € 0.21
€ 20.89
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 0.22)
€ 21.84
plus VAT.
Highlights & Details
Copper wire
Technical specifications
- Product type
Strand
- No. of leads
1 x
- Content
100 m
- Cross section (each core)
0.14 mm²
- Insulation material
PVC
- Cable features
Flexible
- Outside Ø
2.70 mm
- Nominal voltage
500 V
- Packaged
Yes
- Halogen-free
No
- Manufacturer part #
119-19
- Factory colour
Grey
- Core layout
18 x 0,10 mm
- Material (details)
Copper wire, blank
- Sold per metre
No
- Test voltage
1200 V
- Cross section
1 x 0.14 mm²
- Max. temperature range (flexible installation)
85 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (fixed installation)
85 °C
- Min. temperature range (fixed installation)
-40 °C
- Type
119-19
- Standards
Self-extinguishing, flame-resistant according to DIN EN 60332-2-2 (VDE 0482-332-2-2
Documents & Downloads
Datasheet
Datasheet 1398094 Donau Elektronik 119-19 Strand 1 x 0.14 mm² Grey 100 m
User & Safety Instructions
User & Safety Instructions 1398094 Donau Elektronik 119-19 Strand 1 x 0.14 mm² Grey 100 m
Description

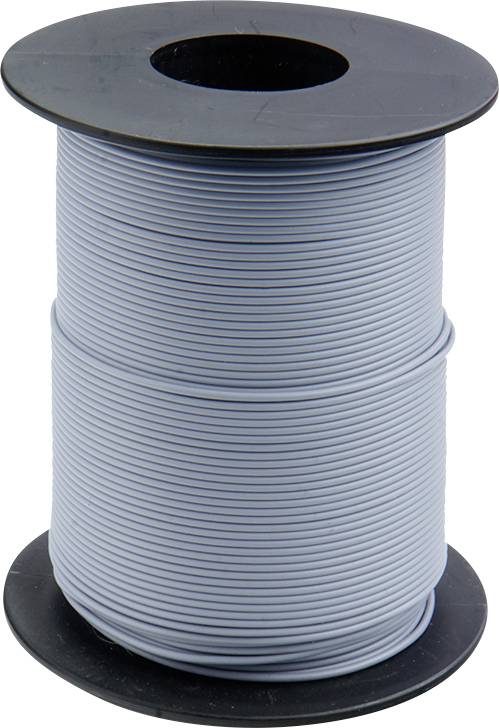

Gray - 1-wire - 0.14 mm² (18 x 0.1 mm) - plastic insulated - 100 meter coil
This text is machine translated.
This text is machine translated.
Scope of delivery
- 100 meters on coil
