Cars, Hobbies & HouseholdModel MakingScale Model ElectronicsServosRC Servos

DSSERVO Custom servo DSSERVO DS3230 PRO

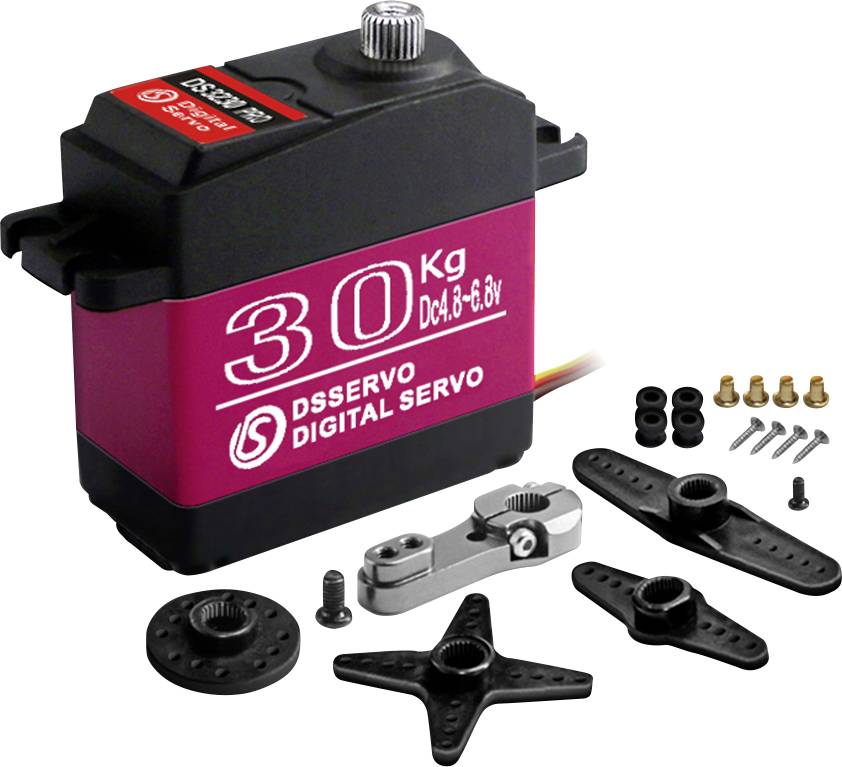

DSservo 30 kg digital servo motor with mounting arms, screws, and accessories on a white background.

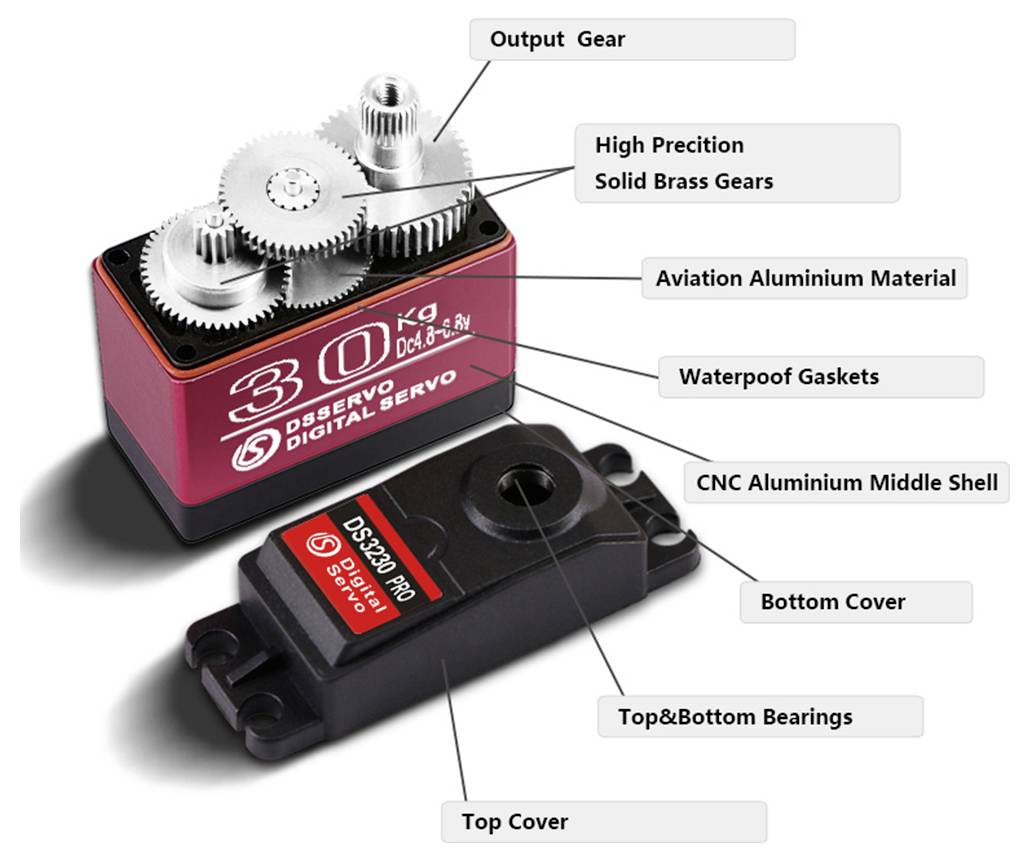

Labeled exploded view of a 30kg digital servo showing output gear, solid brass gears, aluminum body, waterproof gaskets, bearings, top cover, bottom cover, and CNC aluminum shell.
1/2
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 19.99 / piece)
€ 19.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

DS Servo DS3230 PRO Digital 38 kg/0.09 sec. at 6.8 V - High performance RC-Servo with max. 38 kgcm torque

  • 3-pin motor with high power and precise control
  • Very fast response time - up to 0.09 sec/60°
  • Double ball bearings for smooth operation
  • Water and dust resistant (protection class IP66)
  • Ideal for crawler, 1:8-scale vehicles or RC-robot
  • PWM-compatible with 3µs dead time
  • This text is machine translated.

Technical specifications

  • IP66 water- and dust-protected
  • Rotation range is 180° or 270° (500–2500µs)
Product type

Custom servo

Model

DSSERVO DS3230 PRO

Dim

(L x W x H) 40 x 20 x 40.5 mm

Length

40 mm

Width

20 mm

Height

40.5 mm

Weight

60 g

Operating voltage

5.0 - 6.8 V

Max. operating voltage

6.8 V

Min. operating voltage

5.0 V

Manufacturer part #

DS006

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3773678 DSSERVO Custom servo DSSERVO DS3230 PRO

Description

Scope of delivery

  • DS servo
