DSSERVO Standard servo DSSERVO DS3120 Digital
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
5% = € 0.63
€ 11.97
5
7% = € 0.88
€ 11.72
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
Only 3 Piece(s) available
Highlights & Details

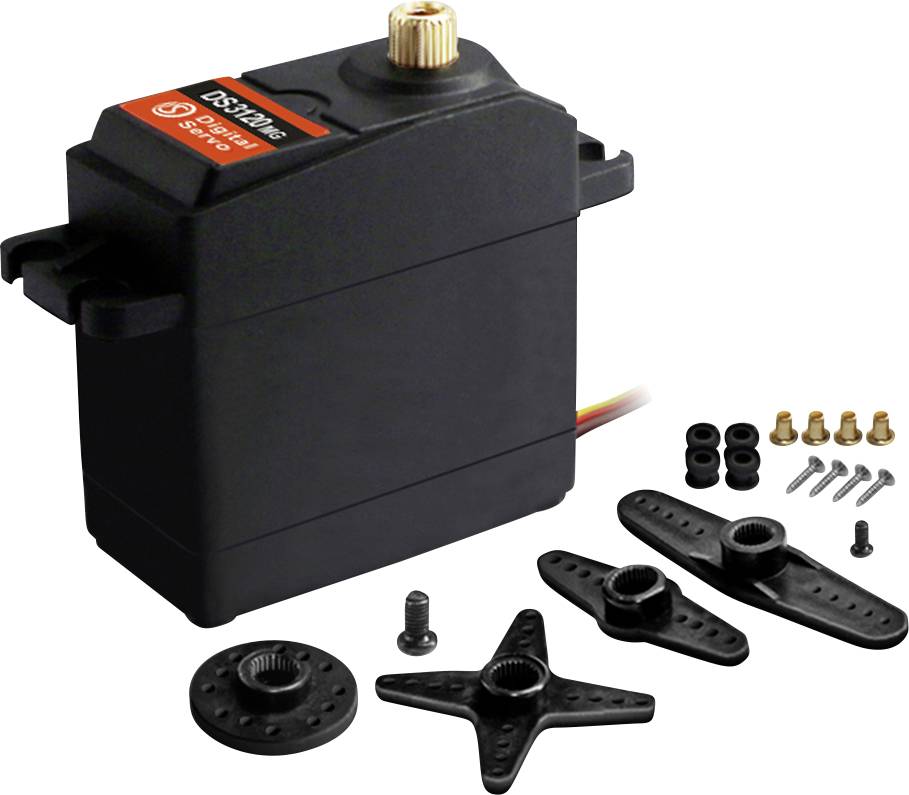

DS Servo DS3120 Digital 25 kg/0.17 sec. at 6.8 V - Powerful standard servo with 25 kgcm torque
- 3-pin motor with Hohem efficiency
- Up to 25 kg of torque at 6.8 V operating voltage
- Double ball bearings for smooth operation
- High transmission ratio (397:1) for controlled power
- Compact Standard Size - Ideal for 1:10 scale models
- PWM-compatible with 3µs dead time
- Not waterproof – recommended for dry environments
- This text is machine translated.
Technical specifications
- Dim
(L x W x H) 40 x 20 x 40.5 mm
- Length
40 mm
- Width
20 mm
- Height
40.5 mm
- Weight
60 g
- Manufacturer part #
DS004
- Min. operating voltage
5 V
- Operating voltage
5 - 6.8 V
- Max. operating voltage
6.8 V
- Product type
Standard servo
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3773676 DSSERVO Standard servo DSSERVO DS3120 Digital
Description
Scope of delivery
- DS servo
