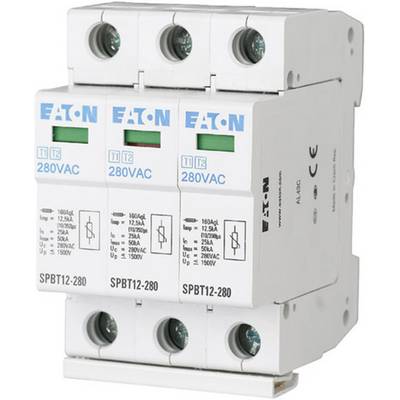

Eaton 158330 SPBT12-280/3 Surge arrester Surge protection for: Switchboards 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 325.00 / piece)
€ 325.00
incl. VAT
14-day return policy included
Technical specifications
- Size: 3 TE
- Lightning surge current (10/350 µs): 12.5 kA
- energetically coordinated protective effect to the terminal: No
- Maximum continuous voltage AC: 280 V
- Max. Conductor cross-section flexible (fine wire): 35 mm²
- Max. Conductor cross-section rigid (single/multi-wired): 25 mm²
- Mounting type: DIN rail TH35
- mains form DC: No
- mains form IT: No
- mains form TN: Yes
- network form TN-C: Yes
- network form TN-C-S: Yes
- network form TN-S: No
- mains form TT: No
- protection level: 1.5 kV
- signaling on the device: Optical
- specific energy (W/R): 39.1 kJ/Ohm
- Product type
Surge arrester
- Surge protection for
Switchboards
- Nominal voltage
280 V AC
- Type
3-pin
IP20
- Manufacturer part #
158330
- Dim
(W x H x D) 86 x 55 x 75 mm
- Width
86 mm
- Height
55 mm
- Depth
75 mm
- Content
1 pc(s)
DIN rail (top hat rail) 35 mm
12.5 kA
3
3 modular spacing
1.5 kV
FALSE
0 kA
280 V
280 V
0 V
Type 1 + 2
0 kV
Optic
0 V
IP20
0 V
0 kV
FALSE
25 mm²
35 mm²
0 kV
0 kV
39.1 kJ/Ohm
FALSE
FALSE
FALSE
TRUE
TRUE
TRUE
TRUE
TRUE
TRUE
1.5 kV
0 A
160 A
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1716856 Eaton 158330 SPBT12-280/3 Surge arrester Surge protection for: Switchboards 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1716856 Eaton 158330 SPBT12-280/3 Surge arrester Surge protection for: Switchboards 1 pc(s)
Description
Lightning current surge arrester for protecting consumer systems.
This text is machine translated.
This text is machine translated.
