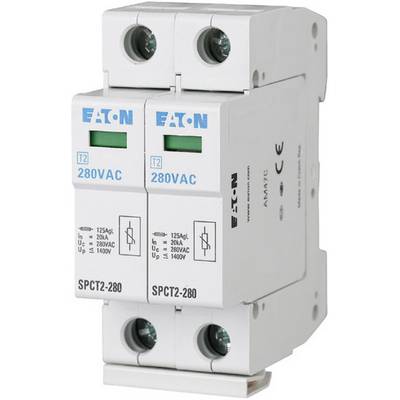

Eaton 167594 SPCT2-280/2 Surge arrester Surge protection for: Switchboards 20 kA 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 149.99 / piece)
€ 149.99
incl. VAT
14-day return policy included
Technical specifications
- Size: 2 TE
- highest continuous voltage AC 280 V
- Max. Surge current (8/20): 40 kA
- Max. Conductor cross-section flexible (fine wire): 35 mm²
- Max. Conductor cross-section rigid (single/multi-wired): 25 mm²
- with telecommunications contact: No
- Mounting type: DIN rail TH35
- mains form DC: No
- mains form IT: No
- mains form TN: Yes
- network form TN-C: No
- network form TN-C-S: No
- network form TN-S: No
- mains form TT: No
- protection level: 1.4 kV
- signaling on the device: Optical
- Product type
Surge arrester
- Surge protection for
Switchboards
- Leakage current
20 kA
- Nominal voltage
280 V AC
- Type
2-pin
IP20
- Manufacturer part #
167594
- Content
1 pc(s)
- Weight
0
DIN rail (top hat rail) 35 mm
FALSE
2
2 modular spacing
1.4 kV
280 V
20 kA
280 V
0 V
TRUE
0 kV
Optic
0 V
IP20
0 V
0 kV
FALSE
25 mm²
35 mm²
FALSE
FALSE
TRUE
FALSE
TRUE
FALSE
TRUE
FALSE
40 kA
0 kA
0 A
125 A
FALSE
0 A
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1716861 Eaton 167594 SPCT2-280/2 Surge arrester Surge protection for: Switchboards 20 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1716861 Eaton 167594 SPCT2-280/2 Surge arrester Surge protection for: Switchboards 20 kA 1 pc(s)
Information
Information 1716861 Eaton 167594 SPCT2-280/2 Surge arrester Surge protection for: Switchboards 20 kA 1 pc(s)
Description
Lightning current surge arrester for protecting consumer systems.
This text is machine translated.
This text is machine translated.
