Eaton DILA-XHI31-PI Auxiliary switch module 3 makers, 1 breaker 4 A Compatible with (relay brand): Eaton 1 pc(s)

An electrical socket block with multiple connection sockets, labelled with numbers and letters for the mounting of electrical components.
An electrical coupling relay module, beige with multiple connections. The 'EATON' logo is visible in the top left. The model number is identifiable.

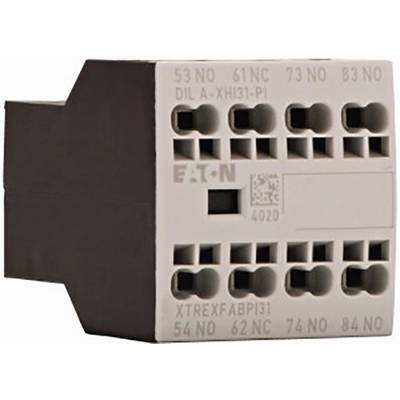

An electronic component with multiple terminal blocks, labelled with 'Eaton'. Primary colours: Black and cream.

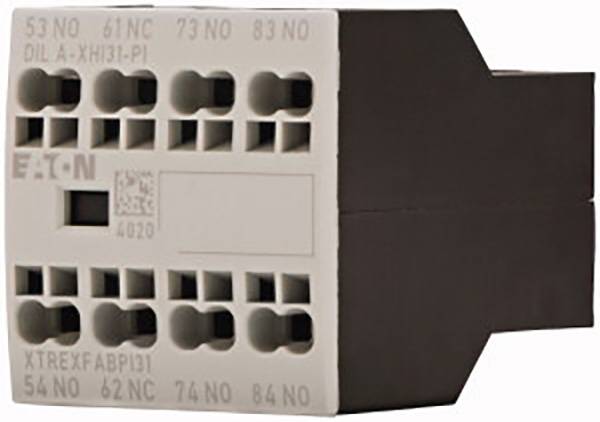

'Electrical connection module with multi-row connections, model numbers and manufacturer logo on the front.'

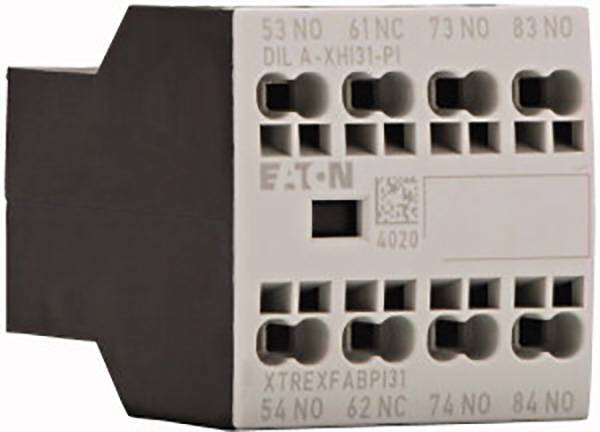

Relay base with multiple terminals. Labels show terminal numbers and models. Brand name 'EATON' visible.

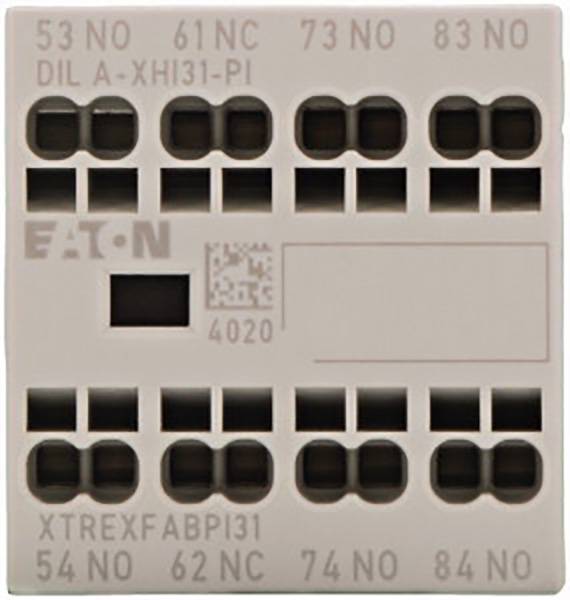

Grey-white cover with labels such as '53 NO', '61 NC', 'DIL A-XHI31-PI' and the brand name EATON, containing multiple openings.
A white electrical component with multiple terminal connections and text reading: 'EATON', 'XTREXFABPI31', 'DIL A-XHI31-PI'.
1/7
Product type
Auxiliary switch module
No. of pins
4-pin
Current load
4 A
Connection
Push-in connector
Type
DILA-XHI31-PI
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Fri 6 Nov
4 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 27.99 / piece)
€ 27.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 4 Piece(s) available
14-day return policy included
Report legal concerns

Technical specifications

Product type

Auxiliary switch module

Type

DILA-XHI31-PI

No. of pins

4-pin

Contact type

3 makers

1 breaker

Switching voltage (max.)

400 V AC

Permanent current (max.)

16 A

Current load

4 A

Compatible with

Eaton

Compatible with series

Eaton DILA series

Mounting type

Spring-loaded connector

Connection

Push-in connector

Content

1 pc(s)

RoHS-compliant

Yes

Factory colour

Multicolour

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2498766 Eaton DILA-XHI31-PI Auxiliary switch module 3 makers, 1 breaker 4 A Compatible with (relay brand): Eaton 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2498766 Eaton DILA-XHI31-PI Auxiliary switch module 3 makers, 1 breaker 4 A Compatible with (relay brand): Eaton 1 pc(s)

Description

Construction auxiliary switch for the protection of the DILM series 7-DILM38, dila. Reliable feedback on the switching state of the protection by mirror contacts. Positively-driven contacts;
