Name: Eaton DILM17-10(24V50HZ) Electrical contactor 3 makers 7.5 kW Compatible with (relay brand): Eaton Piece 1 pc(s)
Brand: Eaton
SKU: 2306691
Availability: InStock

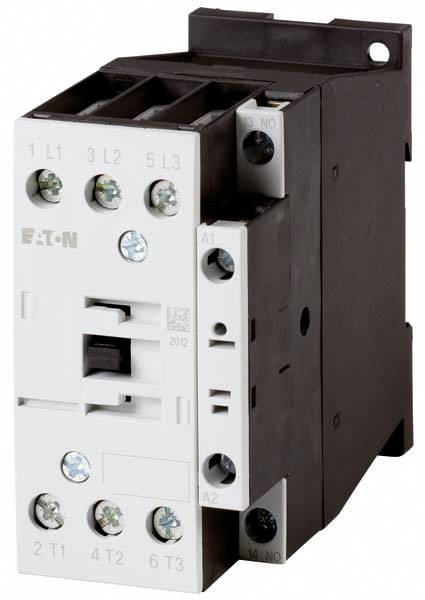

An electrical contactor, primarily used in control cabinets for managing electric motors or other electrical loads.

Image similar

Product type

Electrical contactor

No. of pins

3-pin

Power

7.5 kW

Connection

Screws

Packaging type

Piece

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 97.99 / piece)

€ 97.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Current type: Alternating current actuation
Voltage type for activation: AC
rated operating power IE at AC-4, 400 V: 4.5 kW
rated operating current IE at AC-1, 400 V: 40 A
rated operating current IE at AC-3, 400 V: 18 A
rated operating current IE at AC-4, 400 V: 10 A
suitable for series installation: no.

Packaging type: Piece

Product type: Electrical contactor

Type: DILM17-10(24V50HZ)

No. of pins: 3-pin

Contact type: 3 makers

Auxiliary contact type: 1 maker

Control voltage (min.): 24 V AC

Control voltage (max.): 24 V AC

Control voltage range: 24 - 24 V AC

Switching voltage (min.): 24 V AC

Switching voltage (max.): 690 V AC

Permanent current (max.): 40 A

: 7.5 kW

Compatible with: Eaton

Compatible with series: Eaton DILM17 series

Connection: Screws

Width: 45 mm

Height: 85 mm

Depth: 97 mm

Dim: (W x H x D) 45 x 85 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 45 mm

: 85 mm

: 97 mm

: FALSE

: 7.5 kW

: 3

: 0

: 1

: 0

: 18 A

: 40 A

: 24-24 V

: 0-0 V

: 0-0 V

: Screw connection

: 24-690 V

: 24-690 V

: AC

: 10 A

: 4.5 kW

: 7.4 kW

UKCA: yes
