Name: Eaton DILMP20(24V50/60HZ) Electrical contactor 22 A Compatible with (relay brand): Eaton 1 pc(s)
Brand: Eaton
SKU: 3193554
Availability: BackOrder

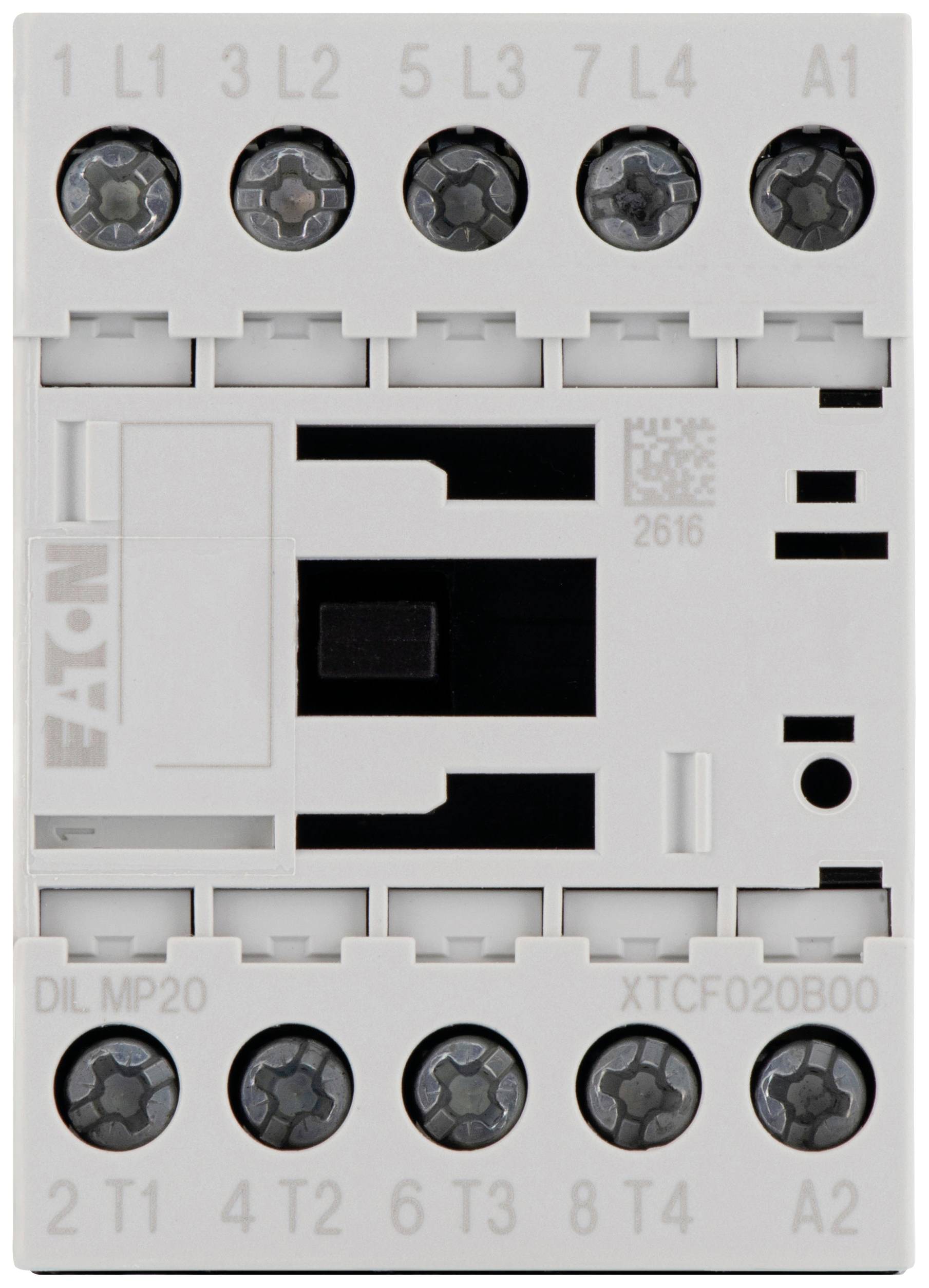

Electrical switch by Eaton with multiple screw terminals at the top and bottom. Model number: DIL MP20 XTCF020B00.

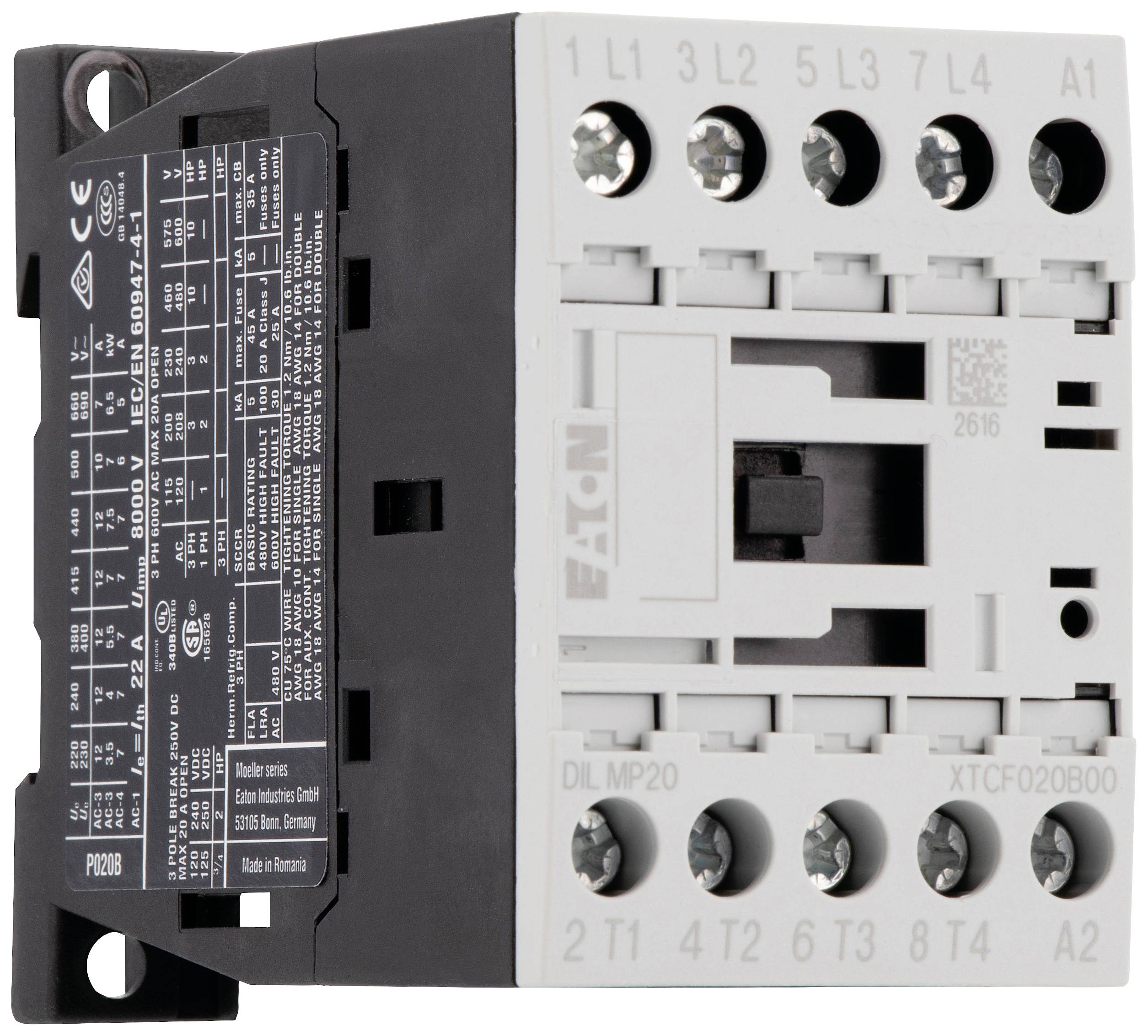

An electrical contactor with labelled terminals and control connections shown for controlling high-performance electrical circuits.

1/2

Product type

Electrical contactor

No. of pins

4-pin

Current load

22 A

Connection

Screws

Type

DILMP20(24V50/60HZ)

Datasheet (PDF)

Dispatches on Tue 27 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 71.99 / piece)

€ 71.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Electrical contactor

Type: DILMP20(24V50/60HZ)

No. of pins: 4-pin

Control voltage (max.): 24 V AC

Control voltage range: 24 V AC (max)

Permanent current (max.): 22 A

Current load: 22 A

Compatible with: Eaton

Compatible with series: Eaton DILMP20 series

Connection: Screws

Durability: 10000000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 68 mm

Depth: 75 mm

Dim: (W x H x D) 45 x 68 x 75 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 45 mm

: 68 mm

: 75 mm

: FALSE

: 5.5 kW

: 4

: 0

: 0

: 0

: 12 A

: 22 A

: 24-24 V

: 24-24 V

: 0-0 V

: Screw connection

: 24-690 V

: 24-690 V

: AC

: 10 A

: 4.5 kW

: 0 kW

UKCA: yes
