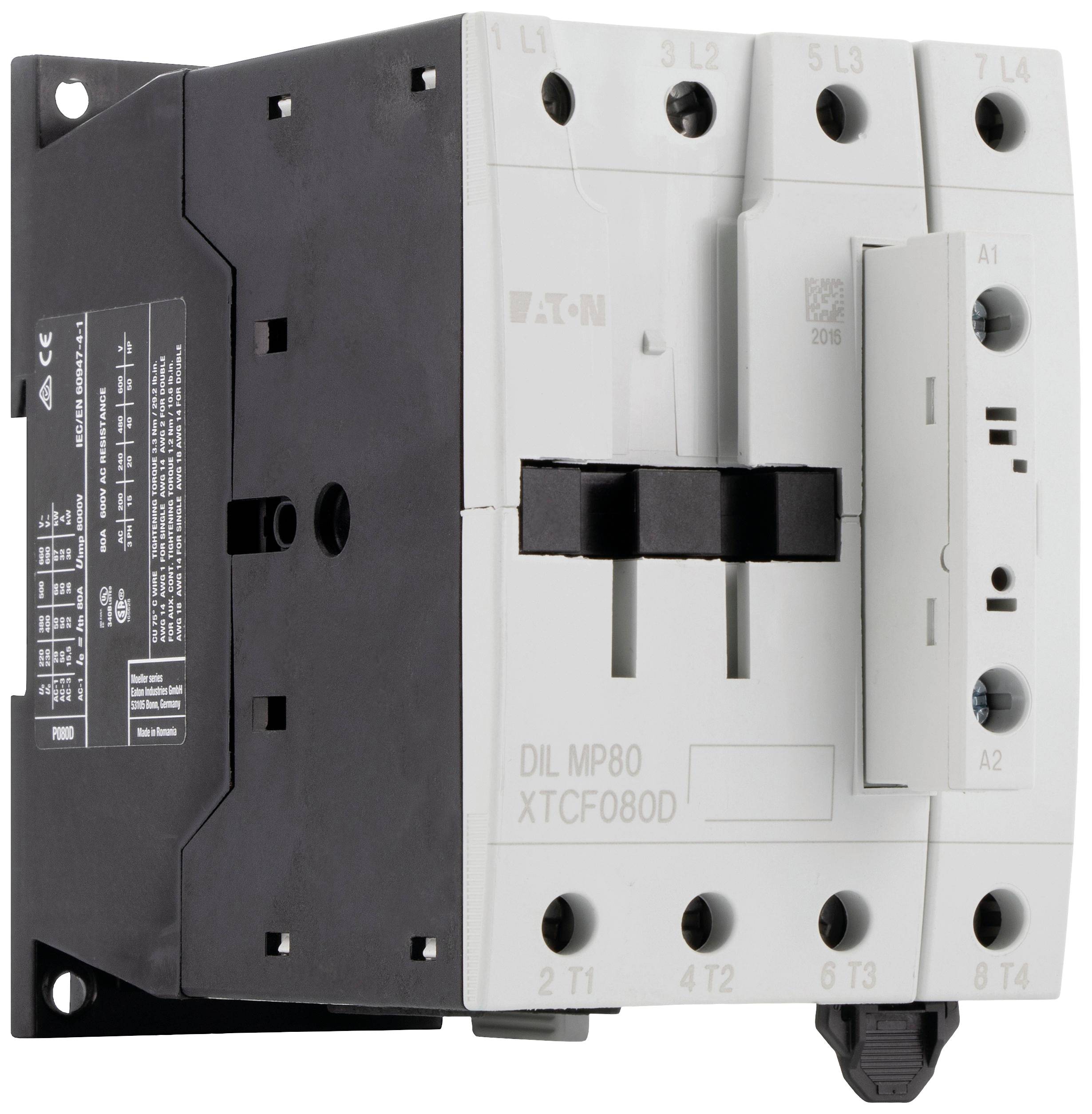

Name: Eaton DILMP80(230V50/60HZ) Electrical contactor 230 V 80 A Compatible with (relay brand): Eaton 1 pc(s)
Brand: Eaton
SKU: 3193559
Availability: BackOrder

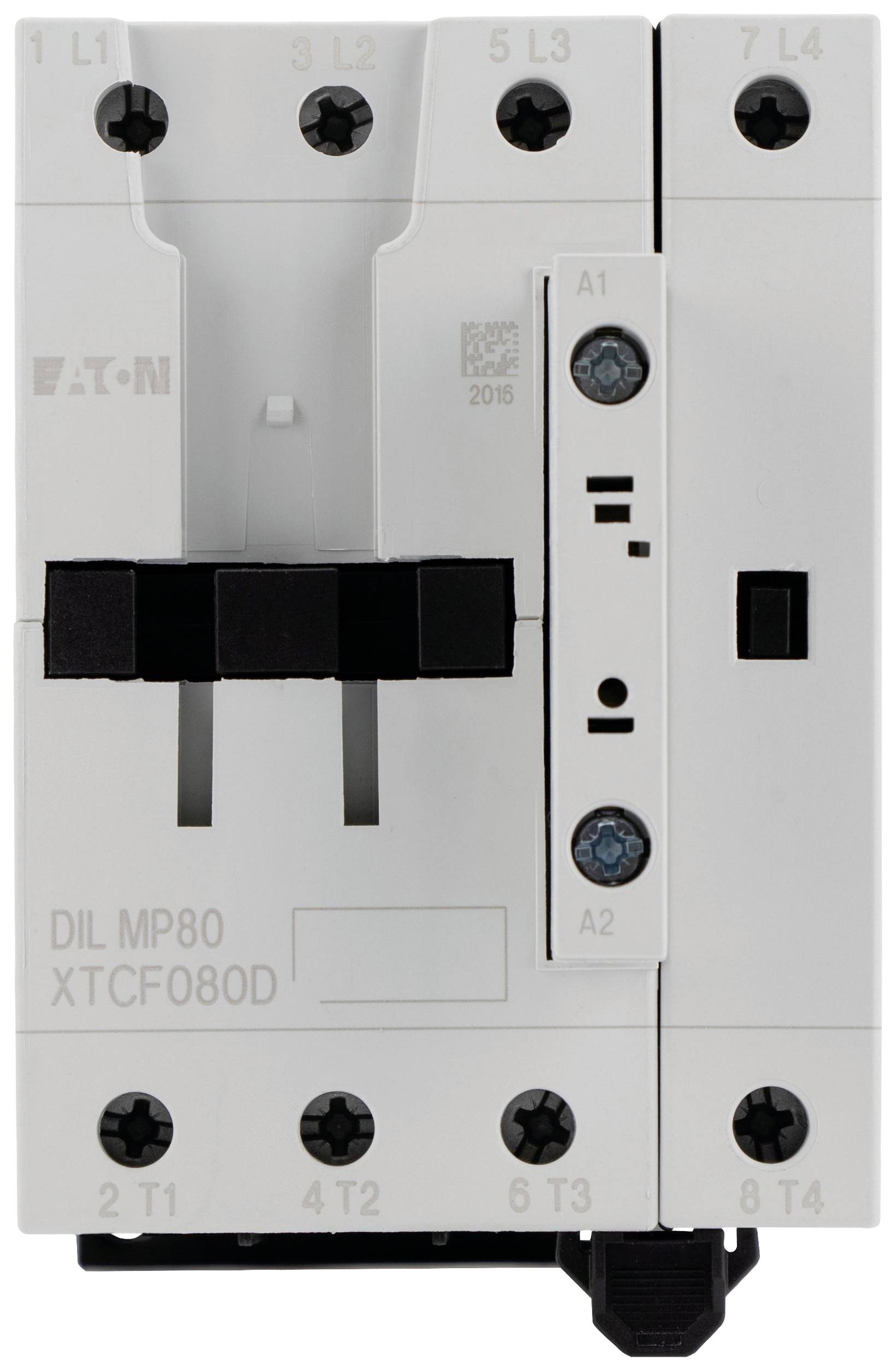

A white electrical contactor by Eaton, Model DIL MP80 XT CF080D, with multiple connections and screws, shown from the front.

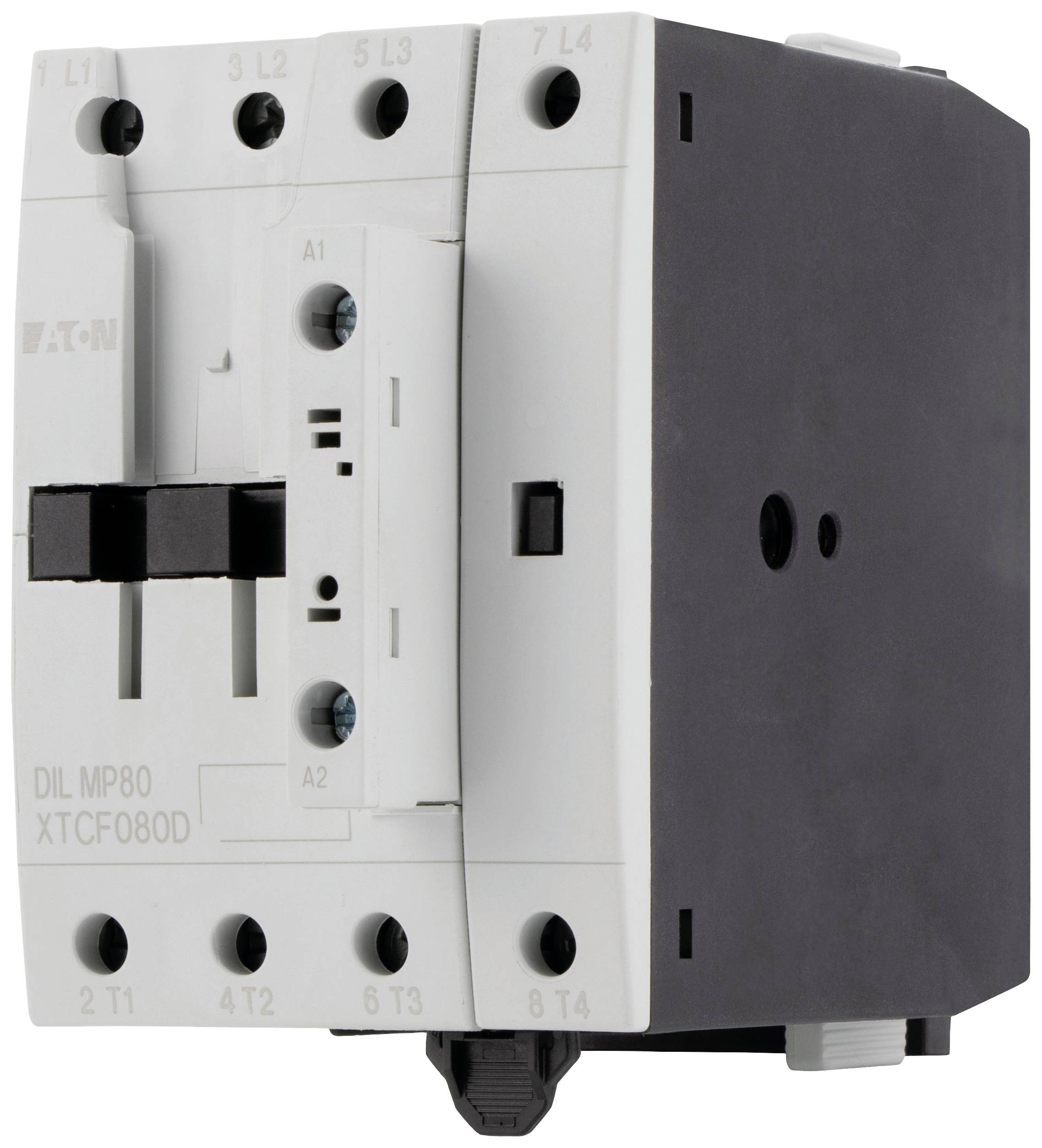

An Eaton contactor, model DIL MP80 XTCF080D, shows connections and switches. Used in electrical control applications.

1/3

Product type

Electrical contactor

No. of pins

4-pin

Nominal voltage

230 V

Current load

80 A

Connection

Screws

Datasheet (PDF)

Dispatches on Tue 27 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 425.00 / piece)

€ 425.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Electrical contactor

Type: DILMP80(230V50/60HZ)

No. of pins: 4-pin

Nominal voltage: 230 V

Control voltage (max.): 230 V AC

Control voltage range: 230 V AC (max)

Switching voltage (max.): 230 V AC

Permanent current (max.): 80 A

Current load: 80 A

Compatible with: Eaton

Connection: Screws

Durability: 10000000

: IP00

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 74 mm

Height: 115 mm

Depth: 132 mm

Dim: (W x H x D) 74 x 115 x 132 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 74 mm

: 115 mm

: 132 mm

: FALSE

: 22 kW

: 4

: 0

: 0

: 0

: 50 A

: 80 A

: 230-230 V

: 230-230 V

: 0-0 V

: Screw connection

: 230-690 V

: 230-690 V

: AC

: 40 A

: 20 kW

: 29.8 kW

UKCA: yes
