Name: Eaton DS7-340SX135N0-N 134921 Soft starter Motor power at 400 V 75 kW Motor power at 230 V 30 kW 24 V DC Nominal current
Brand: Eaton
SKU: 2306769
Availability: BackOrder

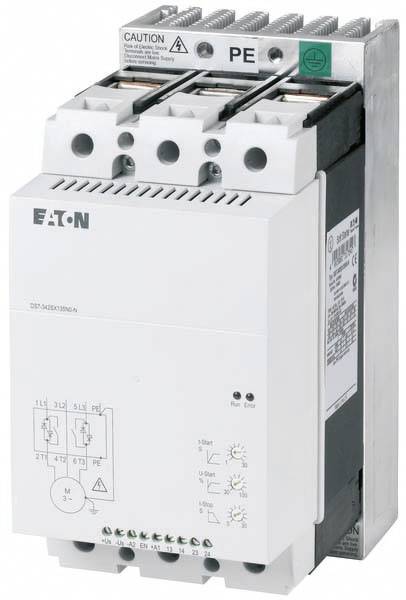

Three-phase motor control unit with control buttons and electrical connections. Circuit diagrams and warning label stickers visible.

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,485.00 / piece)

€ 1,485.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Rated control supply voltage 24 V - 24 V.
Internal bridging: Yes
Protection class: IP20

Motor voltage: 230..480 V

Product type: Soft starter

Motor power at 230 V: 30 kW

Motor power at 400 V: 75 kW

Operating voltage: 230 V

Nominal voltage: 24 V DC

Operating phases: 3

Manufacturer part #: 134921

Nominal current: 135 A

Nominal current - rounded value: 135 A

Type: DS7-340SX135N0-N

Motor power at 230V / 400V: 75 kW

Max. temperature: 40 °C

: Single direction

: FALSE

: 230-480 V

: 24-24 V

: 24-24 V

: 24-24 V

: IP20

: Other

: 135 A

: 30 kW

: 75 kW

: 0 kW

: 0 kW

: 40 °C

: FALSE

: AC/DC

: TRUE

: FALSE

: 1

UKCA: yes
