Buy Eaton EASY-RTD-DC-43-03B1-00 199740 PLC display 24 V DC

A rectangular, grey LCD screen with no visible display or text.

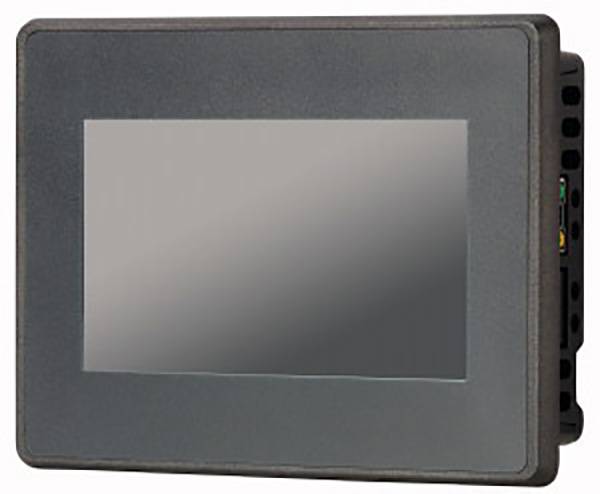

Grey, rectangular electronic device with a central display. It appears to be a touchscreen panel or control unit.

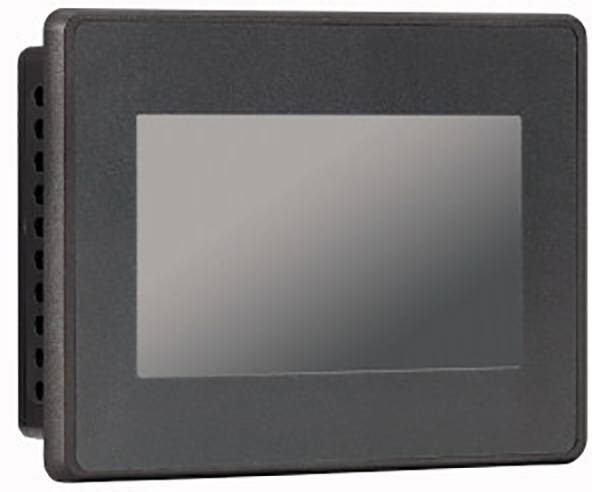

Small rectangular electronic device with a screen in the centre, surrounded by a black frame.

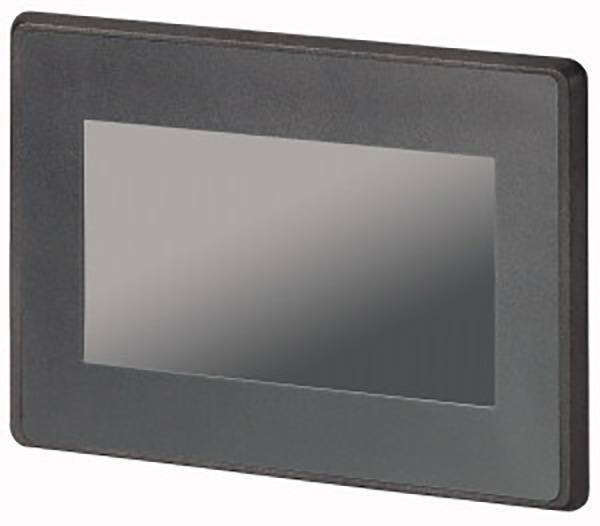

A black, rectangular digital photo frame with a reflective display.

A rectangular dark screen or device with a smooth surface; no discernible content visible.

Small rectangular touchscreen monitor with a black frame and silver screen; suitable for industrial applications.

A small, black electronic device with a rectangular screen in the centre.

1/7

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 242.86 / piece)

€ 242.86

plus VAT.

Report legal concerns

Technical specifications

Technology: Resistive-touch 4-wire
Integrated interface 1 x Ethernet, 1 x USB-device, slot for SD-card
APPROVALS UL, DNV GL
Display type: Colour display, TFT, touch-technology: Resistive touch, number of colors: 64 k colors, resolution: 480 x 272 pixels
High-edge configuration: No.
Screen size: 4.3 inch, visible screen size 70 x 35 mm
Fanless CPU and system cooling, pure passive via free convection
Operating ambient temperature 0 - 50 °C, 24 VDC -20 % + 25 %
Power loss static, 9.5 W independent of power

Type: EASY-RTD-DC-43-03B1-00

Operating voltage: 24 V DC

Manufacturer part #: 199740

UKCA: yes

Product type: PLC display

Documents & Downloads

Datasheet

Datasheet 2498791 Eaton EASY-RTD-DC-43-03B1-00 199740 PLC display 24 V DC

User & Safety Instructions

User & Safety Instructions 2498791 Eaton EASY-RTD-DC-43-03B1-00 199740 PLC display 24 V DC

Description

The easy Remote Touch Display serves as external, offset visualization for the easyE4 and can be used and installed outside the control cabinet. The setup takes place without software via the remote touch display.The display contents of the connected easyE4 basic device are mirrored optionally in color on the remote touch display and by means of the optional virtual keys the operation of the basic device can also be done via the remote touch display.The communication with the easyE4 basic device takes place via a standard RJ45 cable.

This text is machine translated.
