econ connect DC14JD20 Low power connector Socket, horizontal mount 2 mm 1 pc(s)

Black DC socket with three metal contacts, suitable for connecting power supplies to electronic devices.

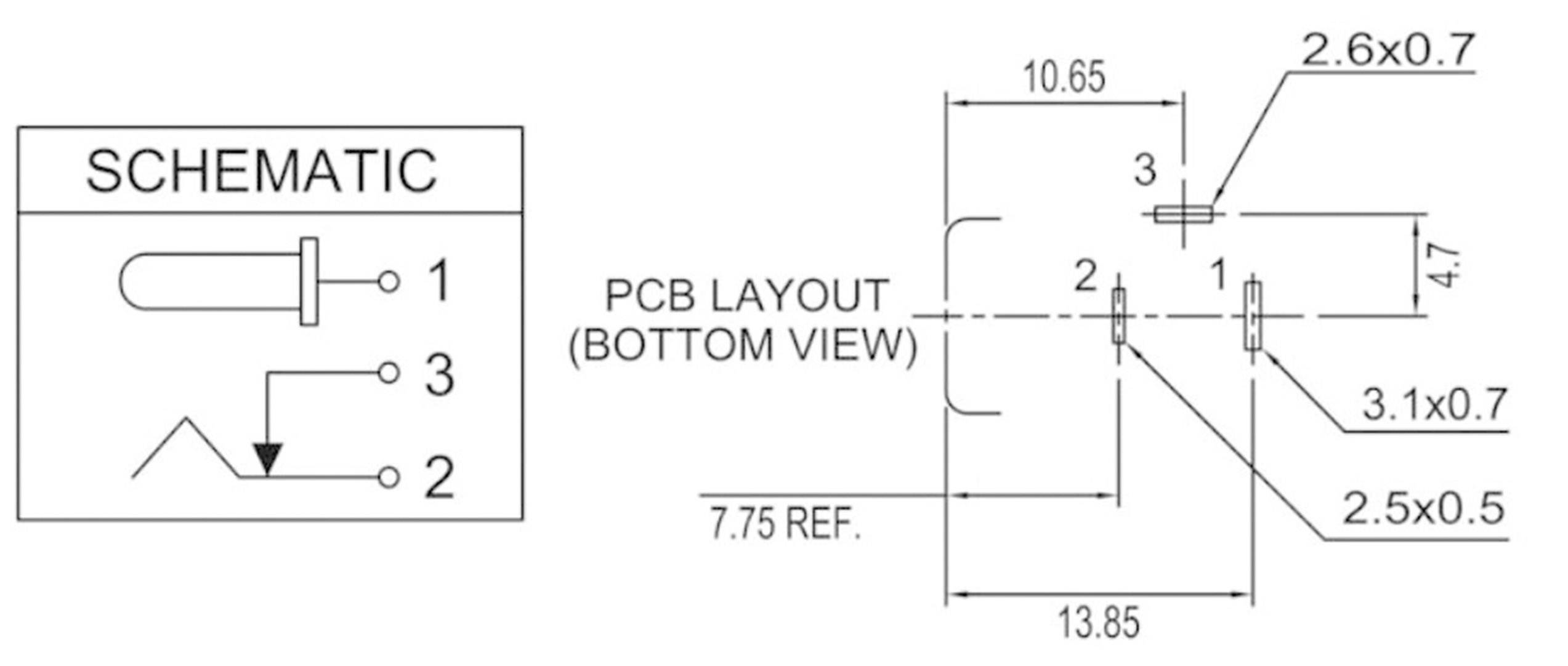

'SCHEMATIC': Symbols for a switch, diode, resistor. 'PCB LAYOUT' shows dimensions and positions of components on the circuit board.

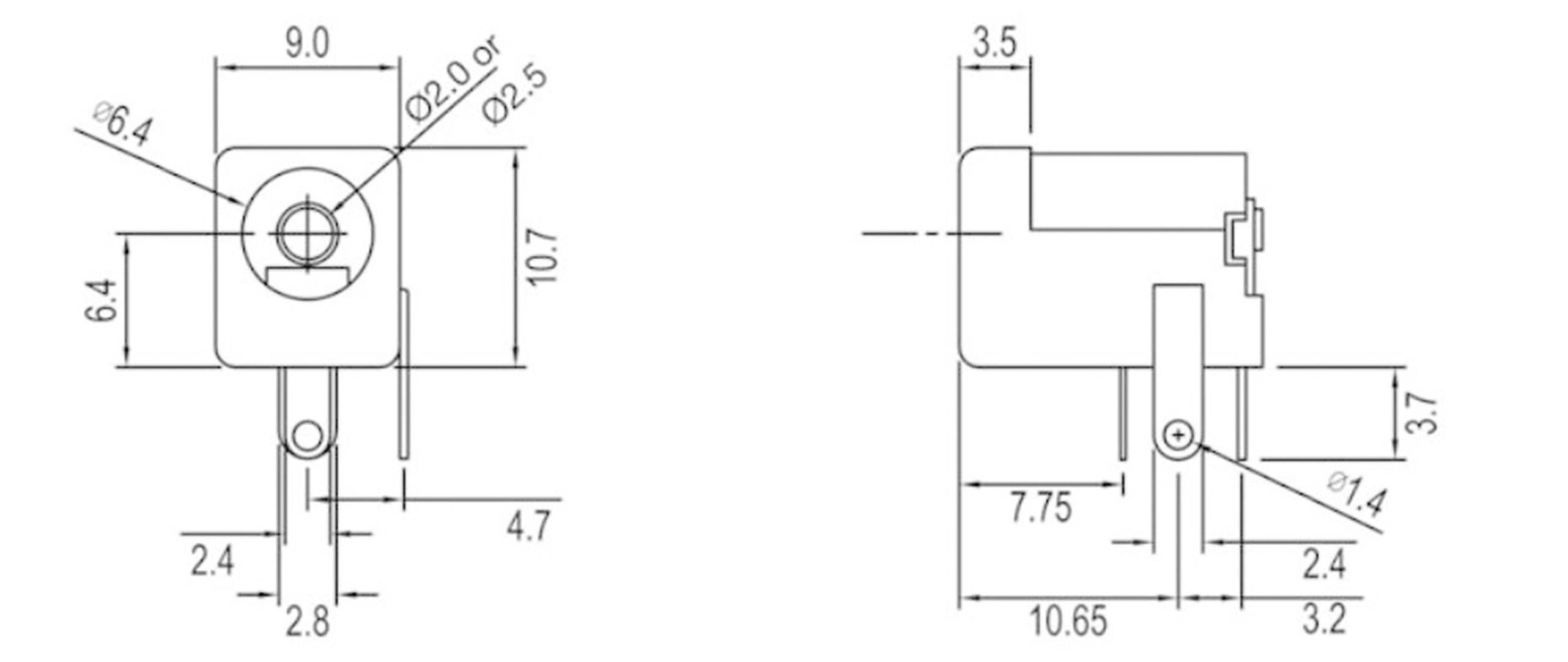

Technical drawing of an electrical component with dimensions and specifications. Shows front and side views with various measurements.
1/3
Image similar
Product type
Low power connector
Connector type
Socket, horizontal mount
Nominal current - rounded value
2 A
Pin Ø
2 mm
Connection
Solder tag
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Mon 2 Nov
477 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 5
Total (€ 0.72 / piece)
€ 0.72
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Low-voltage socket

  • 2 mm

Our service for you

Technical specifications

Product type

Low power connector

Nominal current

2 A

Connector type

Socket, horizontal mount

Nominal current - rounded value

2 A

Pin Ø

2 mm

Connection

Solder tag

Nominal voltage

12 V DC

Content

1 pc(s)

Manufacturer part #

DC14JD20

Type

DC14JD20

Factory colour

Black

RoHS-compliant

Yes

Documents & Downloads

Datasheet

Datasheet 1311359 econ connect DC14JD20 Low power connector Socket, horizontal mount 2 mm 1 pc(s)
