Buy econ connect DC17JD20 Low power connector Socket, vertical vertical 2 mm 1 pc(s)

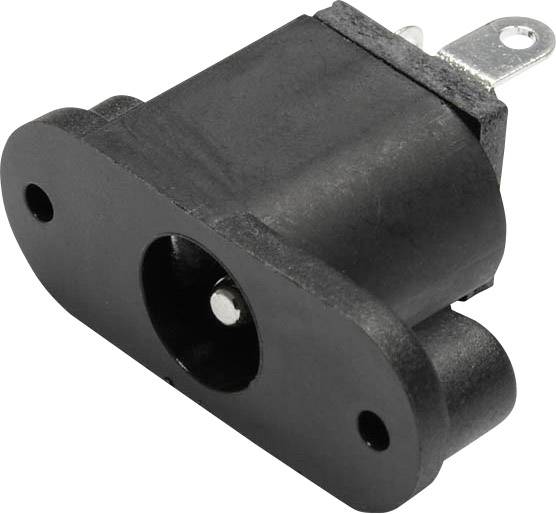

Black socket for power connections, rectangular in shape with two metal contacts.

Image similar

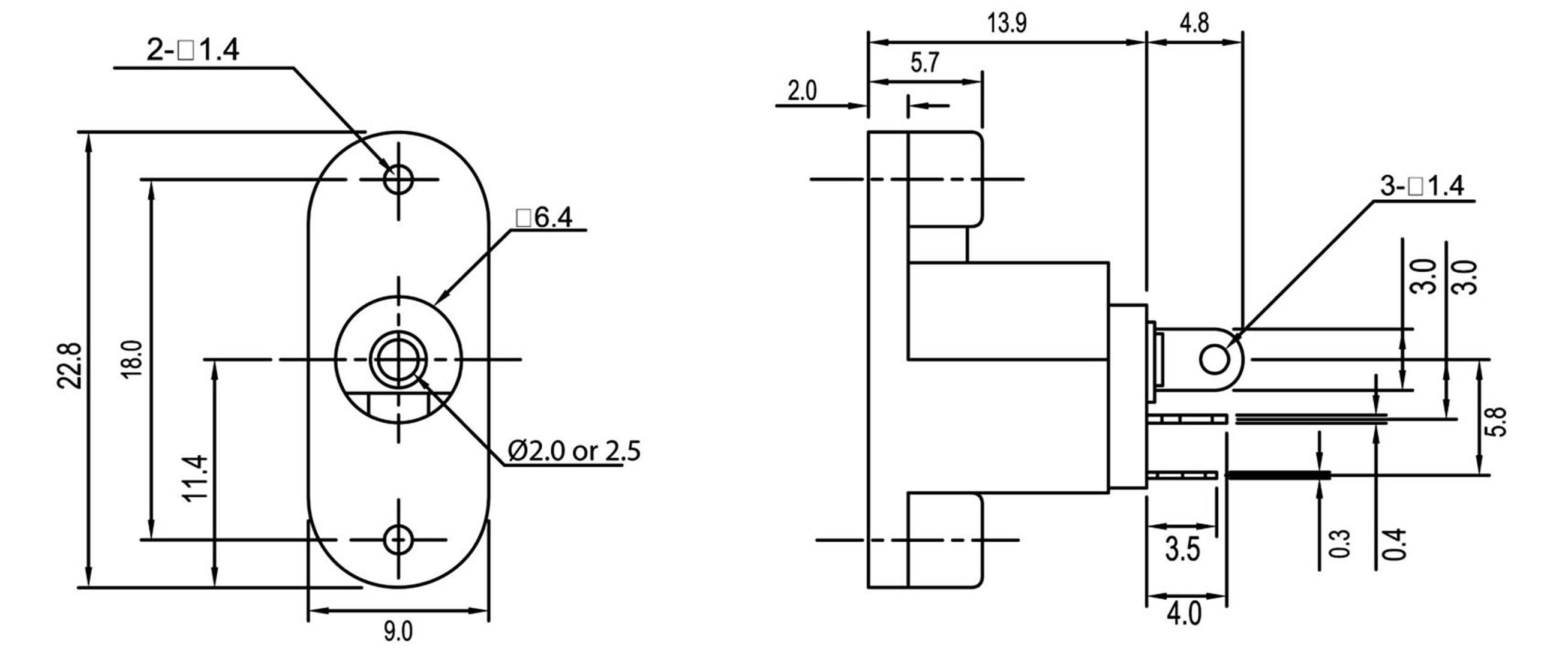

Technical drawing of a mechanical component showing side and front views. Dimensions and hole positions are indicated.

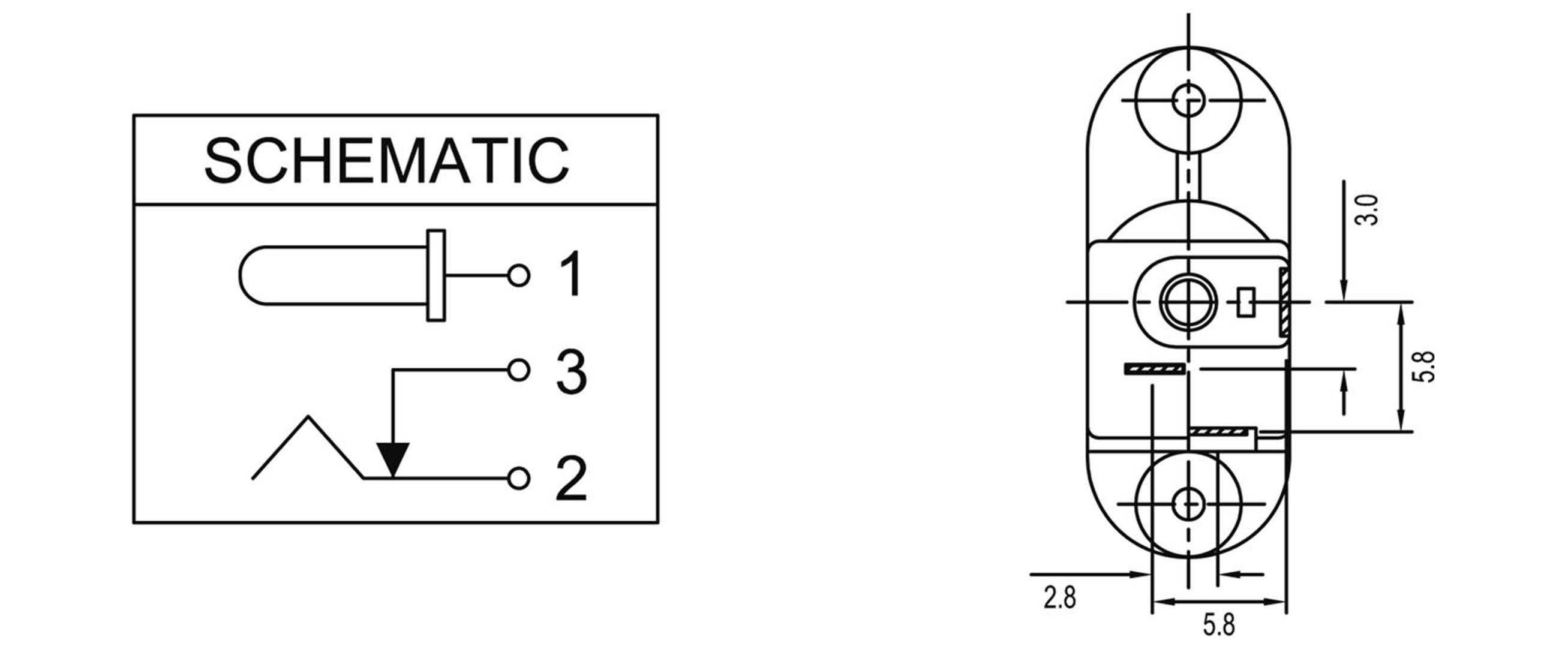

'Schematic' shows circuit symbols: 1 - Switch, 2 - Earth/Ground, 3 - Connection. On the right, a technical component with dimensions 5.8 x 2.8.

1/3

Image similar

Product type

Low power connector

Connector type

Socket, vertical vertical

Nominal current - rounded value

2 A

Pin Ø

2 mm

Connection

Solder tag

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

319 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Minimum order quantity: 5

Total (€ 0.31 / piece)

€ 1.55

plus VAT.

Report legal concerns

Highlights & Details

Low-voltage socket

2 mm

Our service for you

Technical specifications

Product type: Low power connector

Nominal current: 2 A

Connector type: Socket, vertical vertical

Nominal current - rounded value: 2 A

Pin Ø: 2 mm

Connection: Solder tag

Nominal voltage: 12 V DC

Content: 1 pc(s)

Manufacturer part #: DC17JD20

Type: DC17JD20

Factory colour: Black

RoHS-compliant: Yes
