econ connect DCE5AL Low power connector RJ45 socket, straight 10.8 mm 2.1 mm 1 pc(s) Bulk

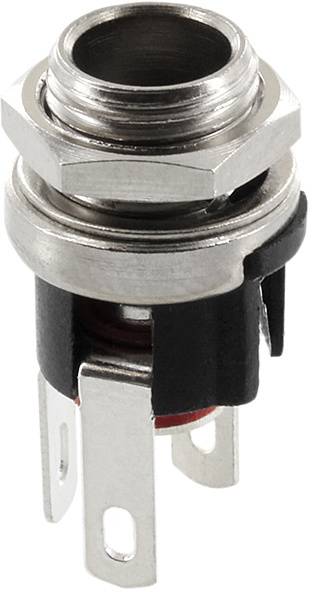

'Metal sleeve with thread, suitable for audio components.'

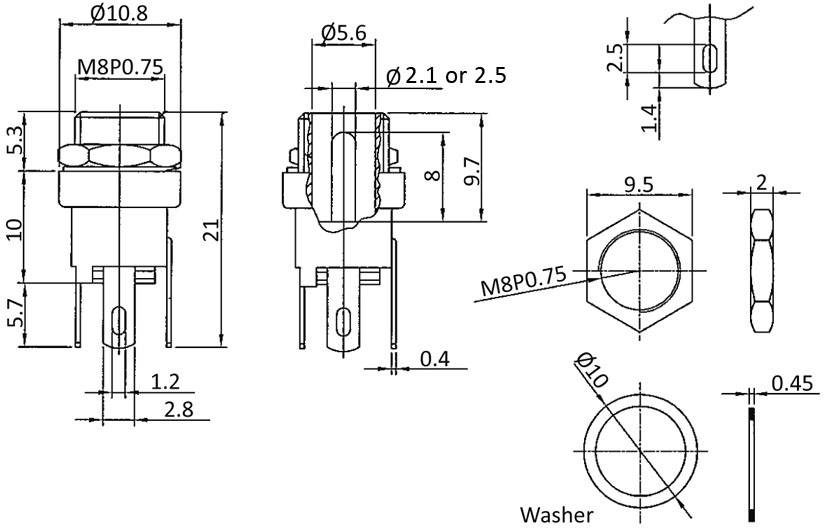

Technical drawing of a connector with labels: M8P0.75, various dimensions and views, including sealing rings.

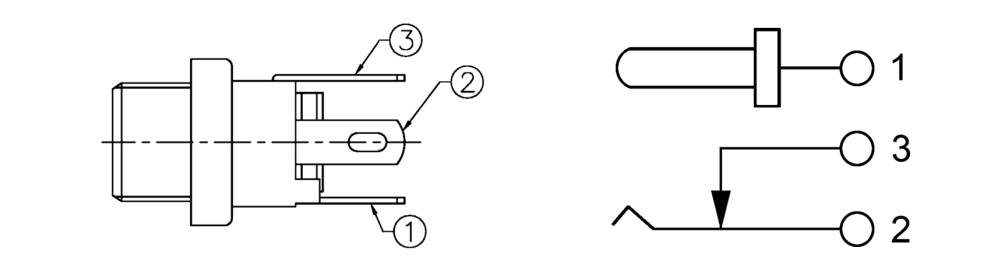

Technical drawing of an electrical connector with components 1, 2 and 3 labelled; shows the connection diagram.

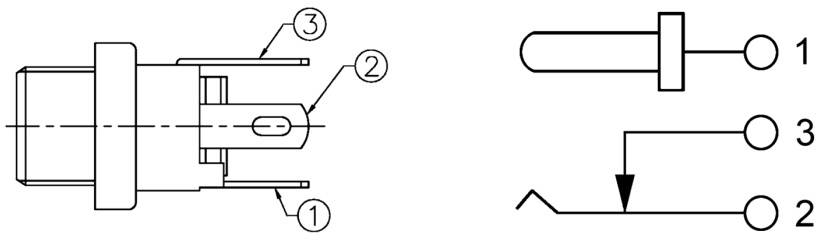

Technical drawing of an electrical plug (left) and switching symbol (right) with marking of connection points 1, 2, 3.
Technical drawing of an electrical connector. Dimensions in millimetres. Measurements include diameter, length, and thread type (M8P0.75).
1/5
Packaging type
Bulk
Product type
Low power connector
Connector type
RJ45 socket, straight
Nominal current - rounded value
5 A
Outside Ø
10.8 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
244 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 1.99 / piece)
€ 1.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

  • 10.8 mm
  • 2.1 mm

Technical specifications

Packaging type

Bulk

Product type

Low power connector

Nominal current

5 A

Connector type

RJ45 socket, straight

Nominal current - rounded value

5 A

Outside Ø

10.8 mm

Pin Ø

2.1 mm

Connection

Solder tag

Nominal voltage

12 V

Content

1 pc(s)

Manufacturer part #

DCE5AL

Type

DCE5AL

Hole Ø

5.6 mm

Documents & Downloads

Datasheet

Datasheet 2521042 econ connect DCE5AL Low power connector RJ45 socket, straight 10.8 mm 2.1 mm 1 pc(s) Bulk
