Name: Ehmann 0215x00078301 Socket splitter Grey, Black PG connector 1 pc(s)
Brand: Ehmann
SKU: 2202177
Availability: BackOrder

Highlights & Details

Ehmann 0215x00078301 Socket splitter

Power strip 5+2-way
with surge protection
Optical function and acoustic error display

Technical specifications

Micro FUSE T6,3AH/250 V
SPD according to EN 61643-11: Typ3
Internal consumption of TSS<: 0.1 W.
Maximum continuous voltage UC: 255 V~
Rated discharge voltage Uoc: 5000 V.
Protection level Up: L-N< 1.0kV - L/N-PE< 1.5kV

Product type: Socket splitter

Light bulb features: Master-Slave function
Surge protection

Outlets: 7

Cable length: 1.50 m

Used at: Indoors

Material: Plastic

Surge protection for: Mains outlets

Function display: visual
acoustic

Leakage current: 6.5 kA

Activation threshold: 7 - 100 W

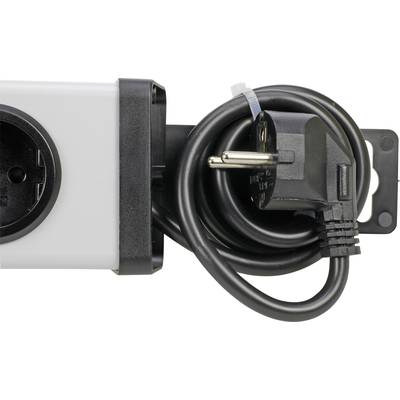

Plug type: PG connector

Cable standard: H05VV-F 3G 1,5 mm²

Operating voltage: 230 V

Power rating: 3600 W

Factory colour: Grey
Black

Length: 590 mm

Width: 74 mm

Height: 47 mm

: IP20

Documents & Downloads

Datasheet

Datasheet 2202177 Ehmann 0215x00078301 Socket splitter Grey, Black PG connector 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2202177 Ehmann 0215x00078301 Socket splitter Grey, Black PG connector 1 pc(s)

Information

Information 2202177 Ehmann 0215x00078301 Socket splitter Grey, Black PG connector 1 pc(s)

Description

The robust plastic strips offer sturdy end caps with mounting options on both sides. This enables mobile use, but also simple attachment to wall and floor. The adjustable switching threshold of 7-100W can be precisely adjusted to the connected master device (main unit). All devices in the black slave sockets are automatically switched on and off via the main unit in the blue master socket. Furthermore, the two gray pots can be operated permanently. To connect the connected devices, e.g. To protect lightning strikes, the power strip offers a surge protection according to EN 61643-11 Typ3.

This text is machine translated.

Features

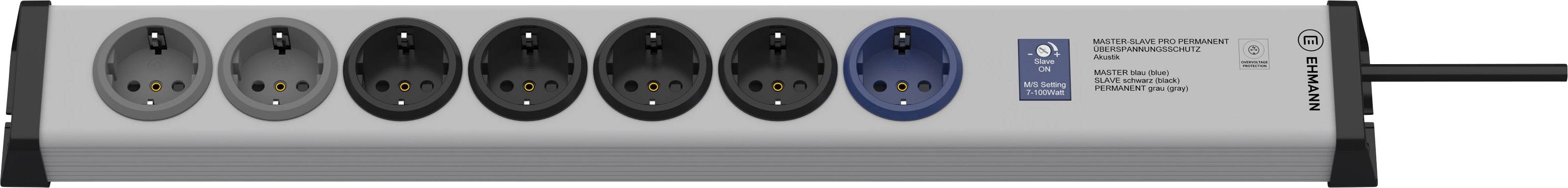

1 blue master-floor socket, 4 black slave sockets and 2 gray permanent-sockets
electronic automatic switching master/slave with exact switching threshold setting
with optical function and acoustic error display according to EN 61643-11 Typ3
acoustic fault report in case of overvoltage protection triggering
582 mm Mounting dimensions.

Scope of delivery

Outlet strip
Instructions/Safety Notice

Description

The robust plastic strips offer sturdy end caps with mounting options on both sides. This enables mobile use, but also simple attachment to wall and floor. The adjustable switching threshold of 7-100W can be precisely adjusted to the connected master device (main unit). All devices in the black slave sockets are automatically switched on and off via the main unit in the blue master socket. Furthermore, the two gray pots can be operated permanently. To connect the connected devices, e.g. To protect lightning strikes, the power strip offers a surge protection according to EN 61643-11 Typ3.

This text is machine translated.

Features

1 blue master-floor socket, 4 black slave sockets and 2 gray permanent-sockets
electronic automatic switching master/slave with exact switching threshold setting
with optical function and acoustic error display according to EN 61643-11 Typ3
acoustic fault report in case of overvoltage protection triggering
582 mm Mounting dimensions.
