Automation & PneumaticsAutomationElectrical Switching ComponentsContactors

Eltako XR12-310-230V Remote switch 3 makers, 1 breaker 4 W 230 V 1 pc(s)

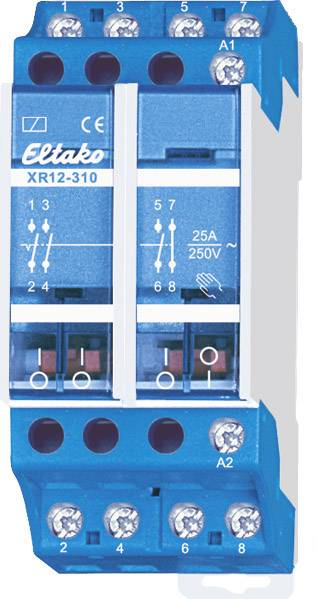

An electric relay by Eltako, model XR12-310, displays connection terminals and voltage specifications (25A, 250V) on a blue housing.
Product type
Remote switch
Nominal voltage
230 V
Power
4 W
Connection
Screw terminal
Type
XR12-310-230V
EAN:
Part number:
Item no:
Dispatches on Wed 11 Nov
68 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 63.99 / piece)
€ 63.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Remote switch

Type

XR12-310-230V

Contact type

3 makers

1 breaker

Auxiliary contact type

3 makers

Nominal voltage

230 V

Control voltage (max.)

230 V AC

Control voltage range

230 V AC (max)

Switching voltage (max.)

250 V AC

Max. switching capacity

3600 VA

Permanent current (max.)

25 A

4 W

Mounting type

DIN rail

Connection

Screw terminal

IP20

Width

36 cm

Height

89 cm

Depth

55 mm

Dim

(W x H x D) 36 x 89 x 55 cm

Content

1 pc(s)

55 mm

250-250 V

2

2

2300 W

3600 VA

3600 VA

1000 VA

AC

AC

IP20

25 A

TRUE

1

3

TRUE

Other

FALSE

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2162029 Eltako XR12-310-230V Remote switch 3 makers, 1 breaker 4 W 230 V 1 pc(s)

Description

Installation contactors with manual actuation and switching position indicator. Duty cycle 100% Control power requirement 4W. Contact distance: 3mm. Test voltage contact/contact 2000V and test voltage control connections/contact 4000V.

This text is machine translated.
