Name: Endress+Hauser Capacitive level gauge FMI21 FMI21-A1A1B2 Operating voltage (range): 10 - 30 V DC Reading range: 2.5 m (m
Brand: Endress+Hauser
SKU: 2886095
Availability: BackOrder

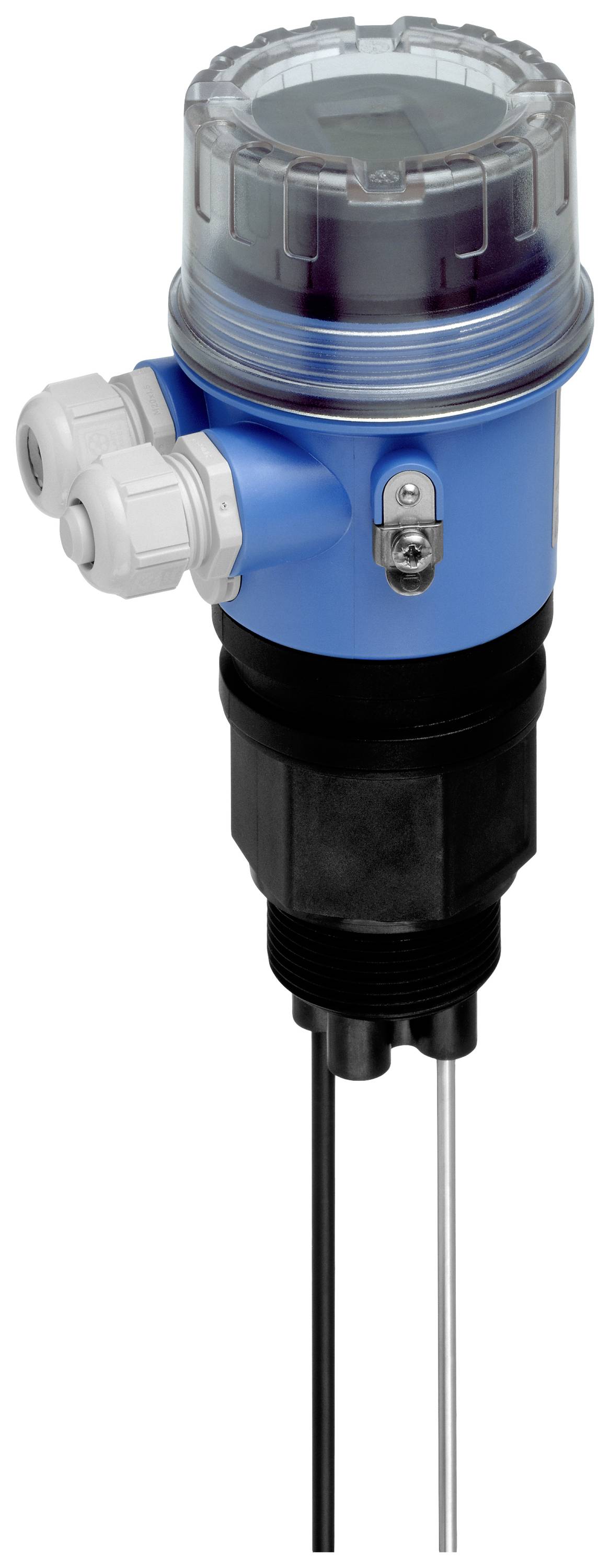

A blue, cylindrical sensor with a transparent cover and connection cable, used for level measurement in industrial applications.

Product type

Capacitive level gauge

Min. operating voltage

10 V DC

Max. operating voltage

30 V DC

Reading range (max.)

2.5 m

Type

FMI21

EAN:

Part number:

Item no:

Dispatches on Mon 16 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 565.00 / piece)

€ 565.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Capacitive level sensor Liquicap T 1.5 m L; PP larger 316L

Approval: Non-explosive area
Process connection: Thread ISO228 G1-1/2, PPS
Probe length material: 1.5 m L; PP larger than 316L
Housing Cable entry: F16 Polyester IP66 NEMA4X; Screw connection M20
Electronic output: FEI20; 4-20 mA

Technical specifications

Product type: Capacitive level gauge

Type: FMI21

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Connector: Cable gland (M20)

Outputs: Current (analogue)

Material: Stainless steel

Material properties: anti-corrosive

Enclosure material: Polyester

Max. operating pressure: 10 bar

Accuracy ±: 1 %

Reading range (max.): 2.5 m

Reading range: 2.5 m (max)

Min. ambient temperature: -40 °C

Max. ambient temperature: +70 °C

Length: 1.5 m

Content: 1 pc(s)

RoHS-compliant: Yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2886095 Endress+Hauser Capacitive level gauge FMI21 FMI21-A1A1B2 Operating voltage (range): 10 - 30 V DC Reading range: 2.5 m (m

Description

Liquicap FMI21 is a simple rod probe for continuous level measurement for conductive liquids. Due to high-quality, non-corrosive materials (carbon fiber, stainless steel), they are also suitable for aggressive liquids (e.g. Acids and bases). Used in conjunction with the Fieldgate FXA320 (remote measurement query using Internet technology). The device is factory pre-configured from 0 to 100% to the ordered probe length. It can be used above a conductivity of 30μS/cm and the measurement is independent of the direct current value (dielectric value) of the liquid.

This text is machine translated.

Features

Safe and reliable function independent of the tank geometry
No calibration required (factory pre-configuration)
High-quality, non-corrosive materials (carbon fiber, stainless steel) for use in aggressive liquids
No moving parts in the tank
