Endress+Hauser Capacitive level gauge FTC260 FTC260-AA4D1 1 pc(s)

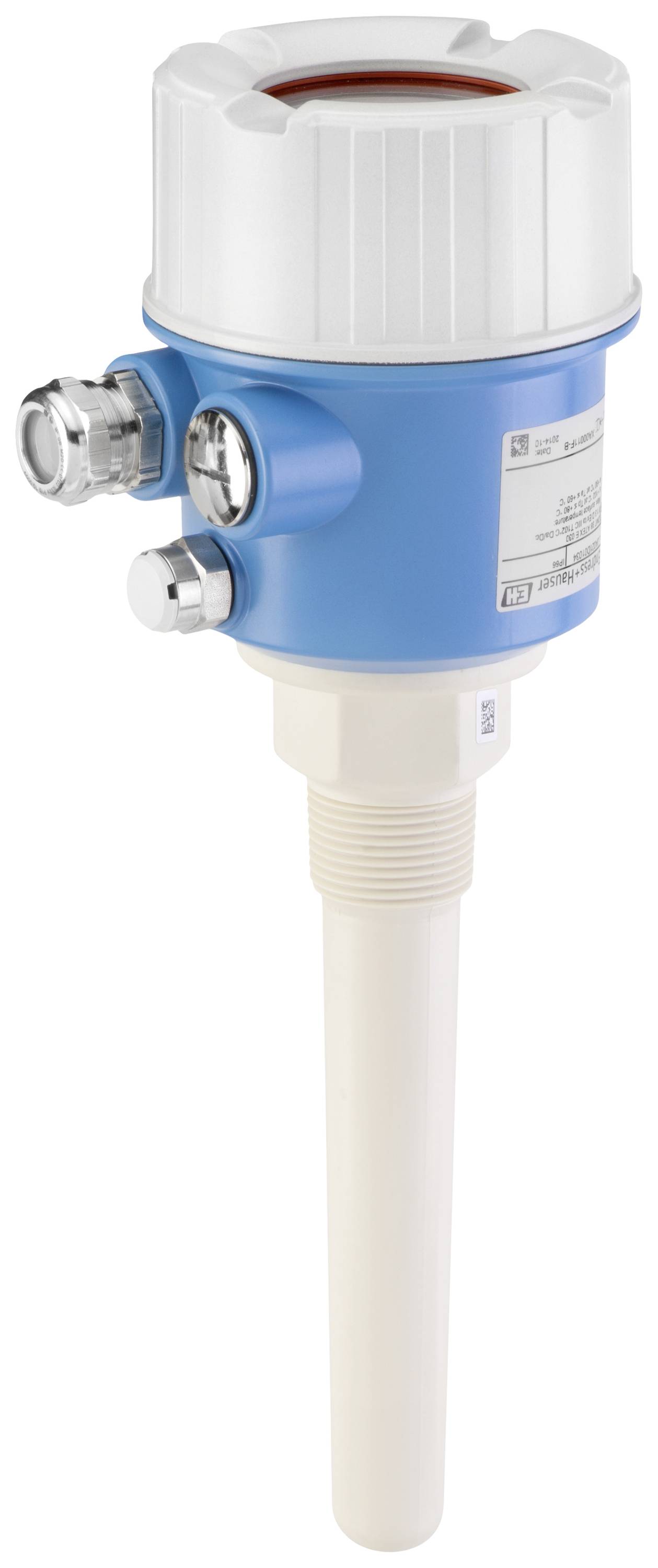

An electrical device with a blue casing and white connectors, used for industrial applications in measurement or control.
Image similar
Product type
Capacitive level gauge
Packaging type
Piece
Type
FTC260
Connector
Cable gland (M20)
Outputs
Relay
EAN:
Part number:
Item no:
Fast track dispatch on Wed 28 Oct
2 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 349.00 / piece)
€ 349.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 2 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Capacitive level switch Minicap relay 20-253 V/AC; 20-55 V/DC

  • Approval: Non-explosive area
  • Process connection: Thread EN10226 R1, PPS
  • Switching output relay 20-253 V/AC; 20-55 V/DC
  • Housing; Cable entry: F14 Polyester IP66; Screw connection M20

Technical specifications

Packaging type

Piece

Product type

Capacitive level gauge

Type

FTC260

Connector

Cable gland (M20)

Outputs

Relay

Material

Aluminium

Enclosure material

Polyester

Switching voltage (max.)

253 V AC

IP66

Content

1 pc(s)

RoHS-compliant

Yes

Thread size

R1

Switching voltage

253 V AC

55 V DC

Max. temperature

+120 °C

Min. temperature

-40 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2886111 Endress+Hauser Capacitive level gauge FTC260 FTC260-AA4D1 1 pc(s)

Description

The FTC260 Minicap is a rod probe for boundary layer detection in bulk materials such as cereal products, milk powder or cement. The device can be used without calibration and is especially suitable for applications with aggressive media and strong adhesion.

This text is machine translated.

Features

  • Suitable for applications with aggressive media and strong deposits
  • Mechanically robust: No wearing parts, long service life, no maintenance
