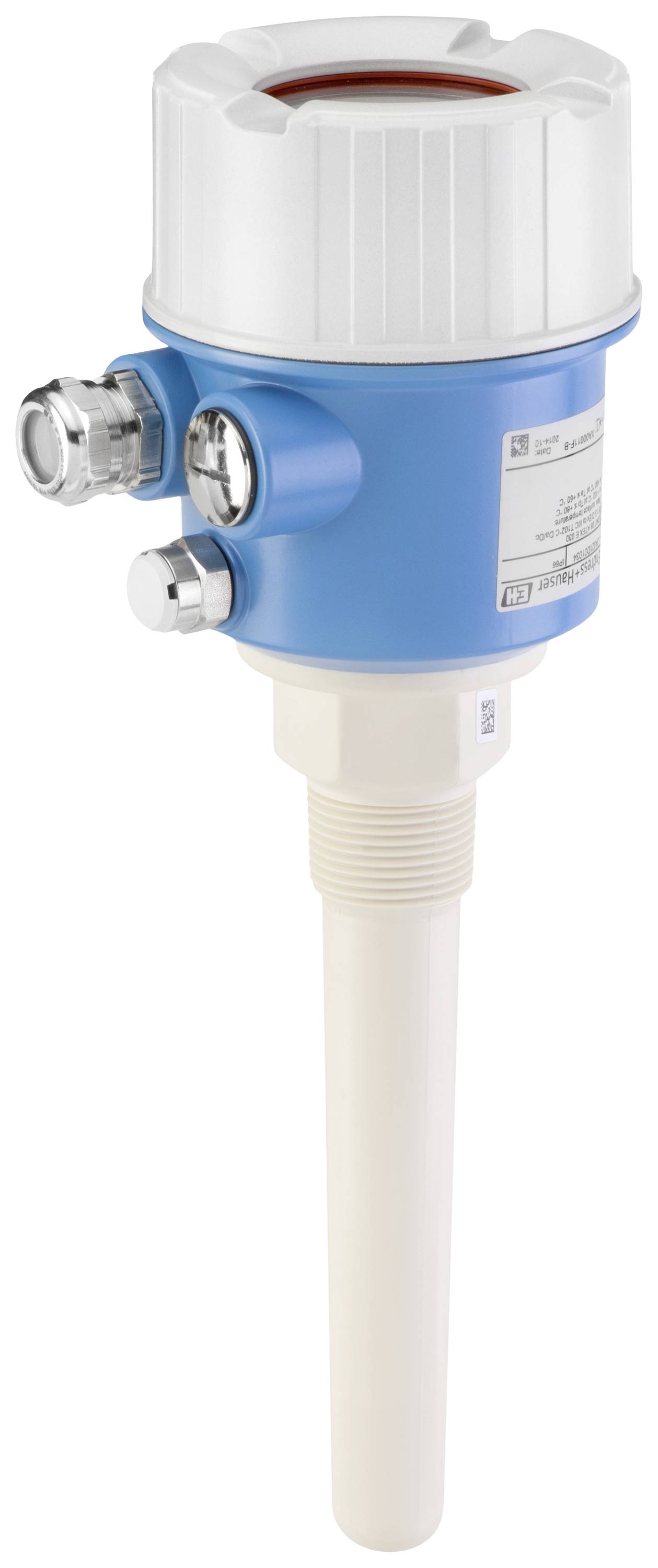

Endress+Hauser Capacitive level gauge FTC260 FTC260-BA4J1 1 pc(s)
EAN:
Part number:
Item no:
Product type
Capacitive level gauge
Type
FTC260
Material
Aluminium
IP rating
IP66
Content
1 pc(s)
Number
Total (€ 382.35 / piece)
€ 382.35
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Capacitive level switch Minicap relay 20-253 V/AC; 20-55 V/DC
- ATEX II 1/2D APPROVAL
- Process connection: Thread EN10226 R1, PPS
- Switching output relay 20-253 V/AC; 20-55 V/DC
- Housing cable entry: F34 aluminum IP66; screwing M20 NEMA type 4 Encl.
Technical specifications
- Product type
Capacitive level gauge
- Type
FTC260
- Material
Aluminium
IP66
- Content
1 pc(s)
- RoHS-compliant
Yes
- Thread size
R1
- Switching voltage
253 V AC
55 V DC
- Max. temperature
+120 °C
- Min. temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2886113 Endress+Hauser Capacitive level gauge FTC260 FTC260-BA4J1 1 pc(s)
Description
The FTC260 Minicap is a rod probe for boundary layer detection in bulk materials such as cereal products, milk powder or cement. The device can be used without calibration and is especially suitable for applications with aggressive media and strong adhesion.
This text is machine translated.
This text is machine translated.
Features
- Suitable for applications with aggressive media and strong deposits
- Mechanically robust: No wearing parts, long service life, no maintenance
