Endress+Hauser Capacitive level gauge FTW23 FTW23-AA4MW5J 1 pc(s)

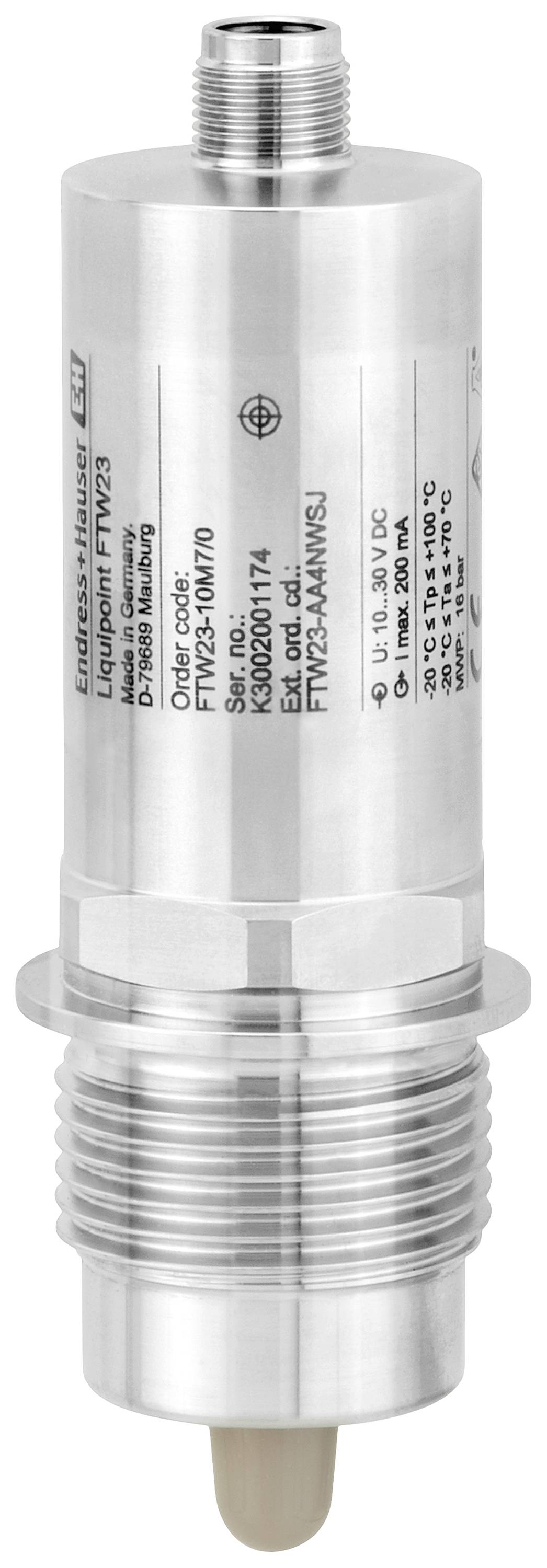

A cylindrical, metallic sensor with technical specifications on the surface. It likely measures physical quantities in industrial applications.
Image similar
Product type
Capacitive level gauge
Packaging type
Piece
Type
FTW23
Connector
G 3/4"
Outputs
PNP
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
2 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 209.99 / piece)
€ 209.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 2 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Liquid-point capacitive level switch FTW23-AA4MW5J 10-30 V/DC; 3-wire PNP thread ISO228 G3/4, 316L, install > accessories welding adapter

  • Output type: Binary output (open collector, electronic)
  • Type of connection: Outer thread
  • Rated width G3/4
  • Power supply output: 10-30 V/DC; 3-wire PNP
  • Process connection: Thread ISO228 G3/4, 316L, mounting > accessories welding adapter

Technical specifications

  • Process temperature: -20 °C to +135 °C for 1 hour
Packaging type

Piece

Product type

Capacitive level gauge

Type

FTW23

Connector

G 3/4"

Outputs

PNP

Material

Stainless steel

Media temperature (min.)

-20 °C

Max. media temperature

+135 °C

Content

1 pc(s)

RoHS-compliant

Yes

Thread size

G3/4"

Switching voltage

30 V DC

Max. temperature

+100 °C

Min. temperature

-20 °C

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2886189 Endress+Hauser Capacitive level gauge FTW23 FTW23-AA4MW5J 1 pc(s)

User & Safety Instructions 2886189 Endress+Hauser Capacitive level gauge FTW23 FTW23-AA4MW5J 1 pc(s)

Description

The Lilipoint FTW23 is a limit switch for water-based liquids without adhesion. The device meets all international hygiene requirements and is suitable for the food industry or industrial applications in all industries. Thanks to the compact design, installation is also possible even with restricted access. The optional IO-Link capability enables simple parameterization.

This text is machine translated.

Features

  • Device functions independent of dielectric constant, conductivity, viscosity, density, temperature, Turbulence
  • CIP and SIP cleanability
