Endress+Hauser Conductive level gauge FTW32 FTW32-A1D5CA0A 1 pc(s)

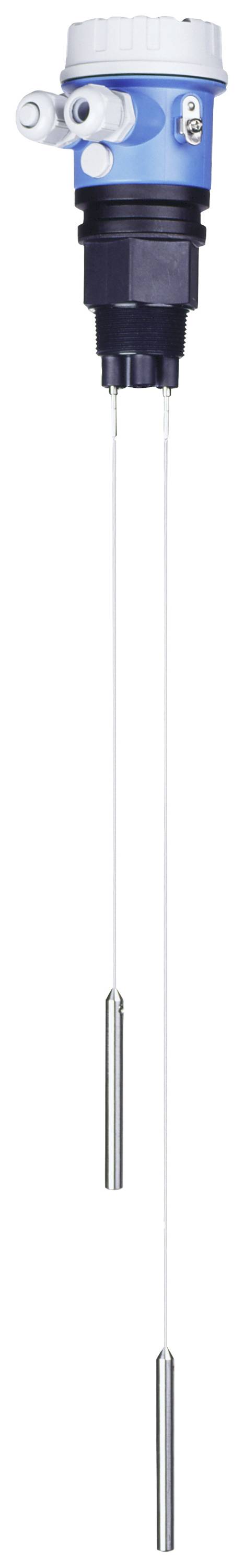

A blue technical device with two long, thin probes, presumably a sensor or measuring instrument, hangs vertically downwards.
Image similar
Product type
Conductive level gauge
Packaging type
Piece
Type
FTW32
Connector
Cable gland (M20)
Material
Non-corrosive steel
EAN:
Part number:
Item no:
Dispatches on Mon 16 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 399.00 / piece)
€ 399.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Conductive liquid level switch Lilipoint T FTW32-A1D5CAA

  • Approval: Non-explosive area
  • Process connection: Thread ISO228 G1-1/2, PPS
  • Measuring point: 5x rope, 316Ti
  • Probe length: 5 m
  • Cable inlet: Screwing M20
  • Electronic output: Separate instrumentation

Technical specifications

  • Medium conductance min. 10 µS/cm
  • Max. Tensile strength 500 N
  • Process pressure: Up to 10 bar
Packaging type

Piece

Product type

Conductive level gauge

Type

FTW32

Connector

Cable gland (M20)

Material

Non-corrosive steel

Material properties

rust-proof

Enclosure material

PPS

Cable length

5 m

Max. operating pressure

10 bar

Content

1 pc(s)

RoHS-compliant

Yes

Thread size

G1 1/2"

Max. temperature

+70 °C

Min. temperature

-40 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2886198 Endress+Hauser Conductive level gauge FTW32 FTW32-A1D5CA0A 1 pc(s)

Description

The Lilipoint FTW32 is a limit indicator for conductive liquids (from 10 µS/cm). With up to 5 rods measuring tasks such as overfill protection, dry run protection, two-point control of pumps or multi-point detection can be realized. The device does not need to be calibrated and the lack of moving parts in the tank increases a long service life and reliable operation.

This text is machine translated.

Features

  • Capture up to five points with one probe
  • Two point control and additional MAX and MIN detection
