Endress+Hauser Conductive level gauge FTW33 FTW33-AA4NWVJ 1 pc(s)

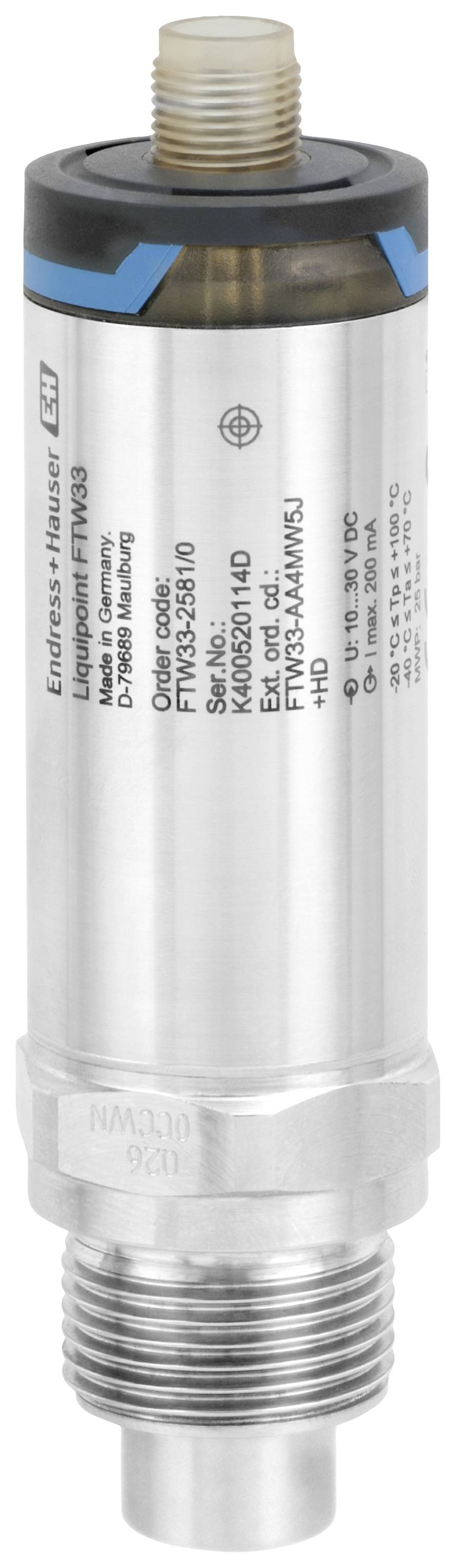

A cylindrical sensor from Endress+Hauser, model Liquipoint FTW33, with threaded connection, for measuring liquid levels.
Image similar
Product type
Conductive level gauge
Packaging type
Piece
Type
FTW33
Connector
G 1/2"
Outputs
PNP
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 469.00 / piece)
€ 469.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Conductive level switch Liquipoint FTW33-AA4NWVJ 10-30VDC; 3-wire PNP thread G1/2, 316L

  • Output type: Binary output (open collector, electronic)
  • Type of connection: Outer thread
  • Nominal width G1/2
  • Power supply output: 10-30 V/DC; 3-wire PNP
  • Process connection: Install thread G1/2, 316L > Hygienic process connection

Technical specifications

  • Process temperature: -20 °C to +150 °C for 1 hour
  • Process pressure: Up to 25 bar
Packaging type

Piece

Product type

Conductive level gauge

Type

FTW33

Connector

G 1/2"

Outputs

PNP

Media temperature (min.)

-20 °C

Max. media temperature

+150 °C

Max. operating pressure

25 bar

Content

1 pc(s)

RoHS-compliant

Yes

Thread size

G1/2"

Switching voltage

30 V DC

Max. temperature

+100 °C

Min. temperature

-20 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2886206 Endress+Hauser Conductive level gauge FTW33 FTW33-AA4NWVJ 1 pc(s)

User & Safety Instructions 2886206 Endress+Hauser Conductive level gauge FTW33 FTW33-AA4NWVJ 1 pc(s)

Description

The Lilipoint FTW33 has been developed for the food industry and meets all international hygiene requirements. This device is also ideally suited for applications in all other sectors. For use in pasty and adhesive media and media with strong adhesion.
