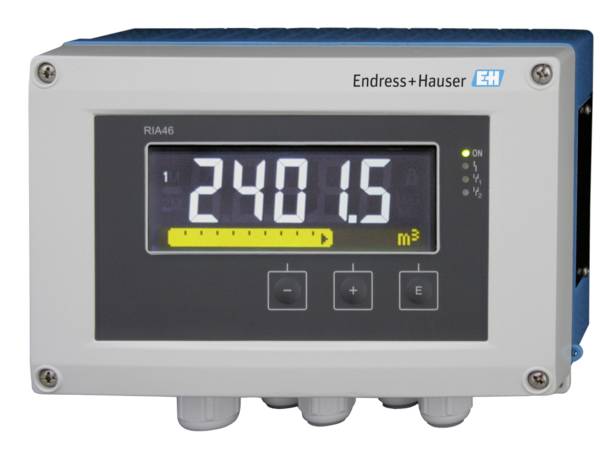

Endress+Hauser RIA46-B1A1A Sensor gauge RIA46 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor gauge
Type
RIA46
Min. operating voltage
24 V DC
Max. operating voltage
230 V DC
Operating voltage
24 - 230 V DC
Number
Total (€ 486.55 / piece)
€ 486.55
plus VAT.
14-day return policy included
Highlights & Details
Display / display RIA46-B1A1A ATEX II(1)GD [Ex ia] IIC field, plastic, glass-fiber reinforced 1x universal; 1x analogue
- Approval: ATEX II(1)GD [Ex ia] IIC
- Input; output: 1x universal; 1x analogue
- Housing: Field, plastic, glass-fiber reinforced
- Thread 4x M16, 1x M20
Technical specifications
- Product type
Sensor gauge
- Type
RIA46
- Min. operating voltage
24 V DC
- Max. operating voltage
230 V DC
- Operating voltage
24 - 230 V DC
IP67
- Content
1 pc(s)
- Length
96 mm
- Width
199 mm
- Height
133 mm
- RoHS-compliant
Yes
- Material
Plastic (fibreglass reinforced)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2989233 Endress+Hauser RIA46-B1A1A Sensor gauge RIA46 1 pc(s)
User & Safety Instructions 2989233 Endress+Hauser RIA46-B1A1A Sensor gauge RIA46 1 pc(s)
Description
The RIA46 is a process display unit with control unit. The multifunctional field measuring device displays, evaluates and calculates analog measured values. The universal inputs enable the connection of current, voltage, RTDs and TCs. It can monitor limit values and switch relay. Process signals can be forwarded via analog outputs. Two-wire sensors can be supplied via the integrated loop power supply. The RIA46 has a display, analog inputs for process and status signals, analog and digital outputs as well as an interface for configuration.
This text is machine translated.
This text is machine translated.
Features
- 5-digit 7-segment LCD display, backlit.
