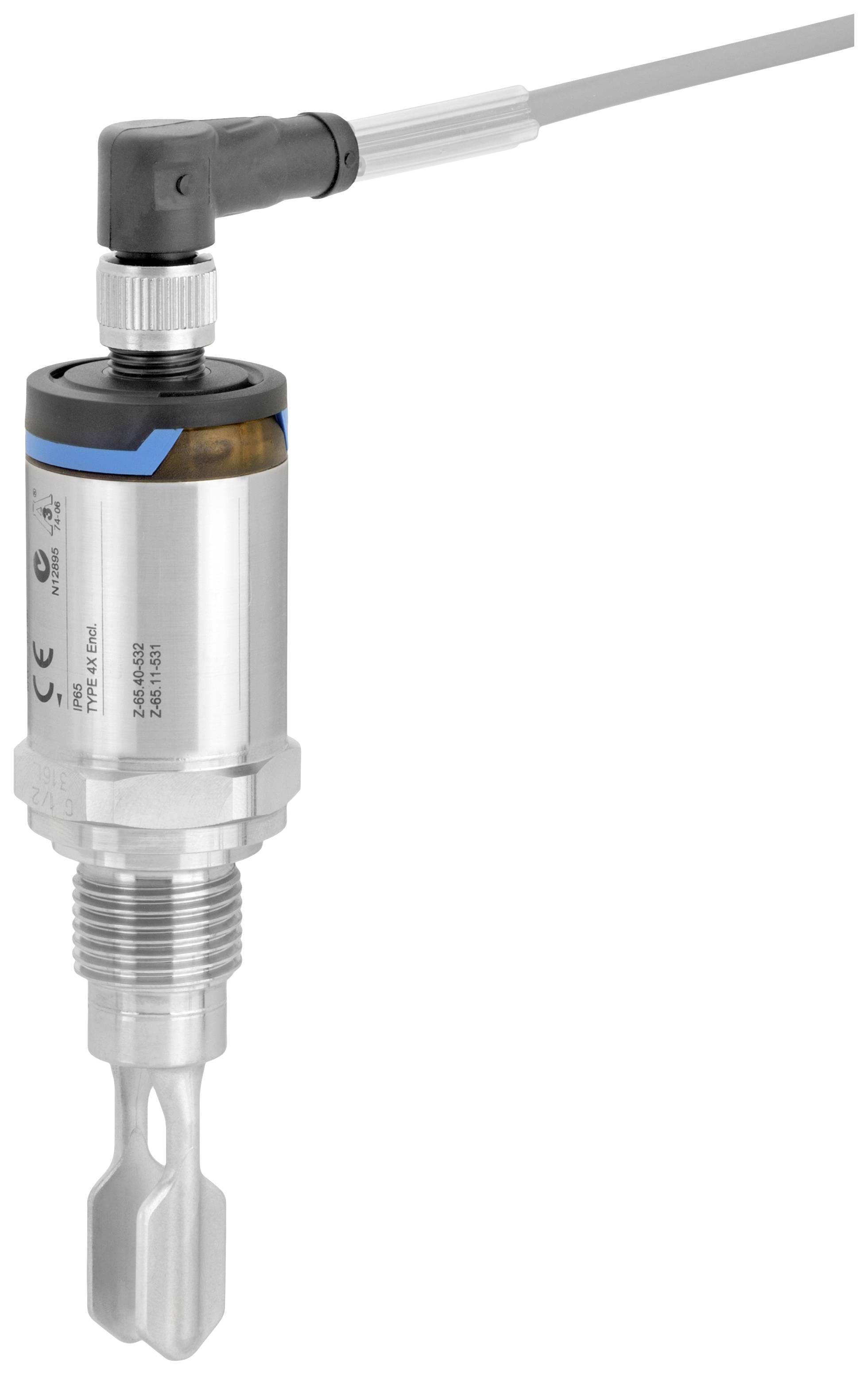

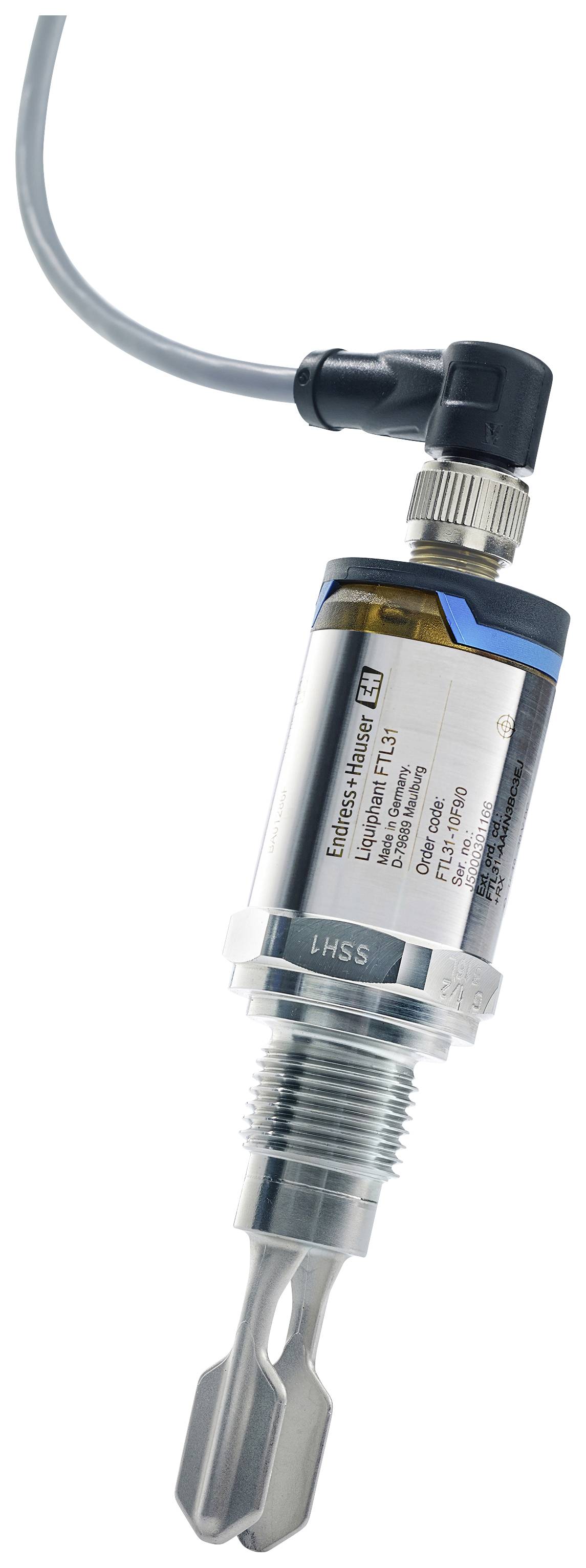

Endress+Hauser Vibronic point level switch FTL31 FTL31-AA4U2BAWSJ 1 pc(s)
EAN:
Part number:
Item no:
Product type
Vibronic point level switch
Type
FTL31
IP rating
IP65
Content
1 pc(s)
RoHS-compliant
Yes
Number
Total (€ 231.09 / piece)
€ 231.09
plus VAT.
Only 2 Piece(s) available
Highlights & Details
Viberon liquid level switch Liquiphant FTL31-AA4U2BAWSJ 10-30 V/DC; 3-conductor PNP thread ISO228 G1, 316L, install > accessories welding adapter
- Output type: Binary output (open collector, electronic)
- Supply type 3-conductor
- Type of connection: Thread
- Nominal width G1
- Power supply output: 10-30 V/DC; 3-wire PNP
- Process connection: Thread ISO228 G1, 316L, installation > accessories welding adapter
- Electrical connection: ISO4400 M16 solenoid connector, IP65 NEMA type 4X Encl.
Technical specifications
- Medium density min.: >0.7 g/cm³
- Product type
Vibronic point level switch
- Type
FTL31
IP65
- Content
1 pc(s)
- RoHS-compliant
Yes
- Thread size
G1
- Switching voltage
30 V DC
- Max. temperature
+150 °C
- Min. temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2886143 Endress+Hauser Vibronic point level switch FTL31 FTL31-AA4U2BAWSJ 1 pc(s)
User & Safety Instructions 2886143 Endress+Hauser Vibronic point level switch FTL31 FTL31-AA4U2BAWSJ 1 pc(s)
Description
The Liquiphant FTL31 is a vibrato limit switch for liquids. The device is used for overfill protection or as dry-run protection for pumps in cleaning systems. The measurement is not influenced by conductivity, adhesion, turbulence, flow or air bubbles and requires no calibration. The optional IO-Link capability enables a simple and time-saving configuration.
