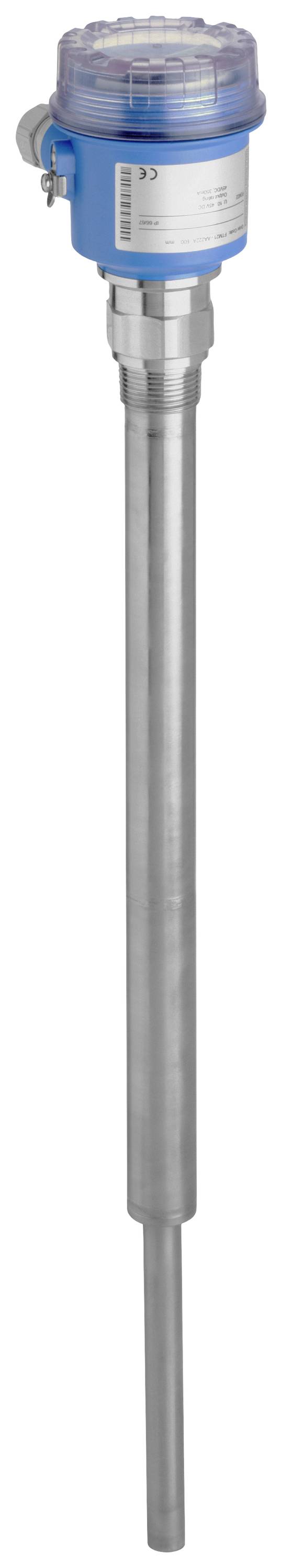

Endress+Hauser Vibronic point level switch FTM21 FTM21-AA222A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Vibronic point level switch
Type
FTM21
IP rating
IP66/IP67
Content
1 pc(s)
RoHS-compliant
Yes
Number
Total (€ 500.00 / piece)
€ 500.00
plus VAT.
Highlights & Details
Vibrant Level Switch Soliphant T FEM22; 3-Conductor PNP 10-45 V/DC
- Approval: Non-explosive area
- Process connection: Thread EN10226 R1, 316L
- Sensor length 500 mm
- Electronic output: FEM22; 3-wire PNP 10-45 V/DC
- Housing cable entry: F16 polyester IP66/67 NEMA4X; M20 screw connection
Technical specifications
- Medium density min. 200 g/l
- Sensor length 500 mm
- Product type
Vibronic point level switch
- Type
FTM21
IP66/IP67
- Content
1 pc(s)
- RoHS-compliant
Yes
- Thread size
R1
- Switching voltage
45 V DC
- Max. temperature
+150 °C
- Min. temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2886187 Endress+Hauser Vibronic point level switch FTM21 FTM21-AA222A 1 pc(s)
Description
The Soliphant FTM21 is a limit switch for applications with fine or coarse-grained, non-fluidized bulk materials. Through the different designs, the device has a broad range of applications. Approvals are also available for use in areas where there is a risk of dust and explosion.
