Buy Endress+Hauser Vibronic point level switch FTM21 FTM21-AA242A 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

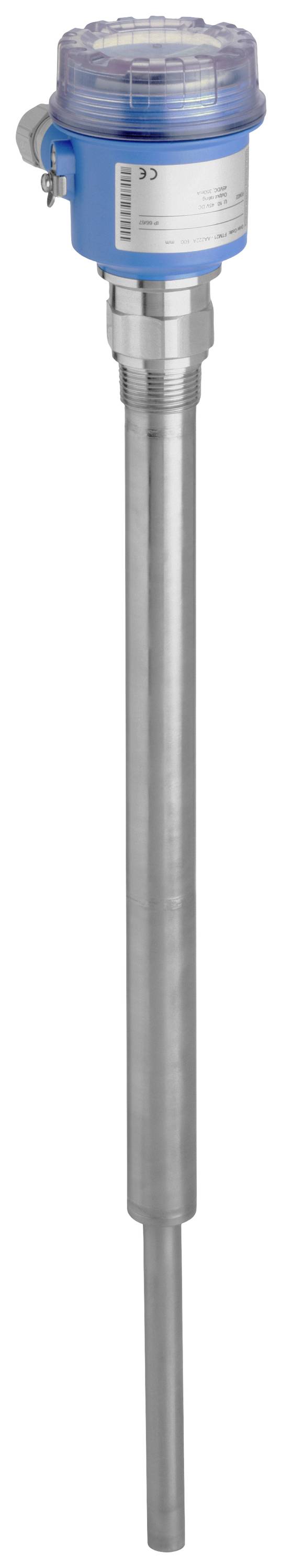

A long, silver device with a blue head. It appears to be an industrial measuring instrument with a robust casing.

A long, silver device with a blue head. It appears to be an industrial measuring instrument with a robust casing.

Image similar

Endress+Hauser

Product type

Vibronic point level switch

Type

FTM21

Operating voltage

55 V DC

Connector

Cable gland (M20)

Outputs

Relay

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 625.00 / piece)

€ 625.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Vibrant Level Switch Soliphant T FEM24; Relay DPDT, 19-253 V/AC; 55 V/DC

Approval: Non-explosive area
Process connection: Thread EN10226 R1, 316L
Sensor length 500 mm
Electronic output: FEM24; relay DPDT, 19-253 V/AC; 55 V/DC
Housing cable entry: F16 polyester IP66/67 NEMA4X; M20 screw connection

Technical specifications

Medium density min. 200 g/l
Sensor length 500 mm

Product type: Vibronic point level switch

Type: FTM21

Operating voltage: 55 V DC

Connector: Cable gland (M20)

Outputs: Relay

Material: Stainless steel

Enclosure material: Polyester

: IP66/IP67

Length: 500 mm

Content: 1 pc(s)

RoHS-compliant: Yes

Thread size: R1

Switching voltage: 253 V AC
55 V DC

Max. temperature: +150 °C

Min. temperature: -40 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2886186 Endress+Hauser Vibronic point level switch FTM21 FTM21-AA242A 1 pc(s)

Description

The Soliphant FTM21 is a limit switch for applications with fine or coarse-grained, non-fluidized bulk materials. Through the different designs, the device has a broad range of applications. Approvals are also available for use in areas where there is a risk of dust and explosion.

This text is machine translated.

Description

The Soliphant FTM21 is a limit switch for applications with fine or coarse-grained, non-fluidized bulk materials. Through the different designs, the device has a broad range of applications. Approvals are also available for use in areas where there is a risk of dust and explosion.

This text is machine translated.
