Name: Escha 8004806 Sensor/actuator connector M12 No. of pins (RJ): 4 1 pc(s)
Brand: Escha
SKU: 3553340
Availability: InStock

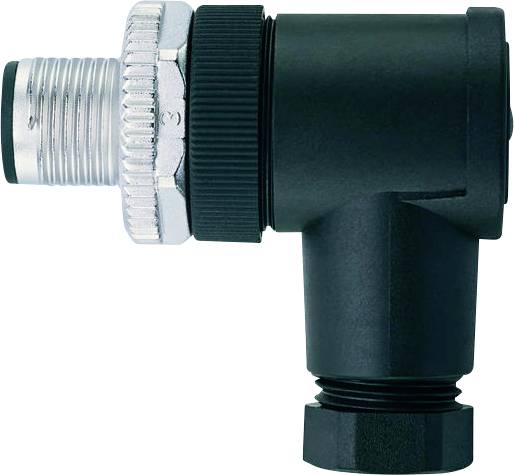

A black and silver L-shaped mechanical connector with a threaded end, likely used for plumbing or industrial purposes.

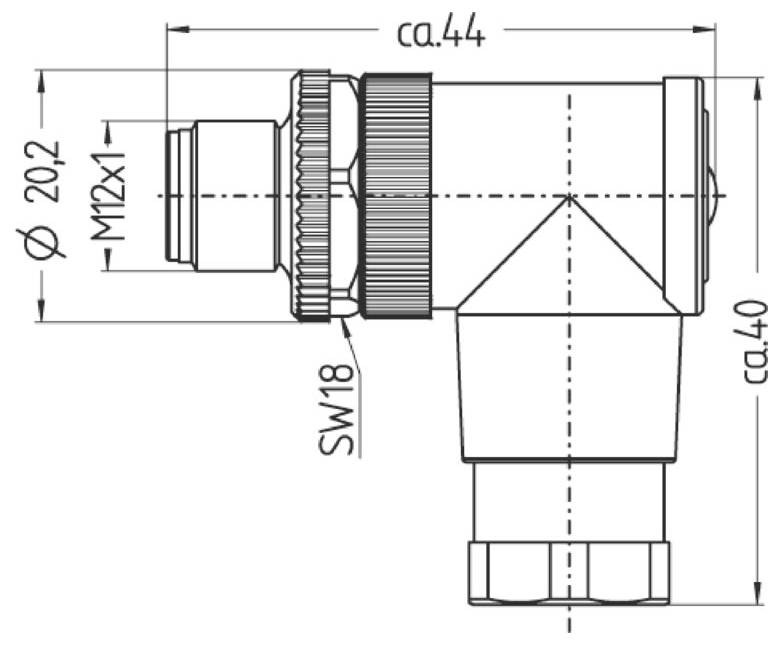

Technical drawing of a cylindrical component with dimensions: 20.2 mm diameter, 44 mm length, and 40 mm height. Includes labeled sections 'M12x1' and 'SW18'.

'Circle with four numbered sections: 1, 2, 3, and 4, arranged clockwise. Arrow pointing downward below the circle.'

1/3

Product type

Sensor/actuator connector

Connection side A

M12 plug, right angle

No. of pins

Nominal voltage

250 V

Nominal current

4.0 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 7.99 / piece)

€ 7.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Rated voltage: 250V
Insulation resistance ≥108 Ω
Material grip body: Plastic, PBT/PA, BK
Material contacts: Metal, CuZn, CuSnZn
Material contact carrier: Plastic, PA, BK
Mechanical lifespan >50 mating cycles
IEC 61076-2-101 standard
Number of pins: 4
Protection class (mounted) IP67
Plug connector: Plug, angled, M12
Current load capacity per pin (at 40°C): 4.0 A
Ambient temperature: -40°C...+85°C
Pollution level 3
Coding: A
Constant resistance 8 mΩ
Material over-throw: Metal, GD-ZN, nickel-plated
Connection type: Screw/terminal connection
Connection cross-section: Max. 0.75 mm²
Cable outlet 4...6 mm

Type: WWASC4K

Product type: Sensor/actuator connector

Connection side A: M12 plug, right angle

No. of pins: 4

Nominal voltage: 250 V

Nominal current: 4.0 A

Nominal current - rounded value: 4 A

Connector cross-section (max.): 0.75 mm²

Cross-section (sensor/actuator wiring): 0.75 mm²

Connection: Screw terminal

Thread type connection side: M12

Coding: A

Contact material: CuSnZn

Contact surface: CuZn

max. cross section: 0.75 mm²

Min. temperature: -40 °C

Max. temperature: 85 °C

Seal type: Screw-on

Manufacturer part #: 8004806

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3553340 Escha 8004806 Sensor/actuator connector M12 No. of pins (RJ): 4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553340 Escha 8004806 Sensor/actuator connector M12 No. of pins (RJ): 4 1 pc(s)

Description

Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.
