Name: Escha 8004808 Sensor/actuator connector M12 No. of pins (RJ): 4 1 pc(s)
Brand: Escha
SKU: 3553342
Availability: BackOrder

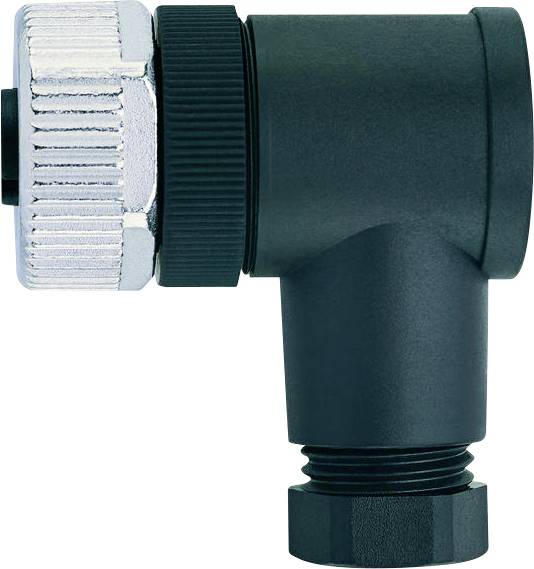

A black plastic plumbing connector with a silver metallic cap on one end, used for connecting pipes at a right angle.

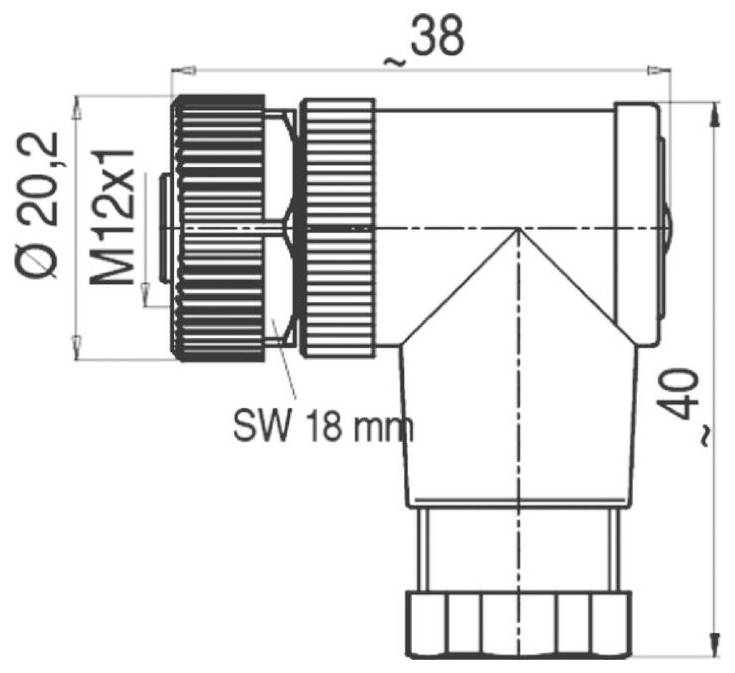

Technical drawing of an elbow connector with dimensions: length 38mm, height 40mm, diameter 20.2mm, thread size M12x1, wrench size SW 18mm.

A circular diagram with numbered sections: 1, 2, 3, 4. An arrow points downward from the circle, indicating progression or flow.

1/3

Product type

Sensor/actuator connector

Connector standard

Sensor connector

Connection side A

M12 socket, right angle

No. of pins

Nominal voltage

250 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 7.99 / piece)

€ 7.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Rated voltage: 250V
Insulation resistance ≥108 Ω
Material seal (bush): FPM/FKM
Material grip body: Plastic, PBT/PA, BK
Material contacts: Metal, CuZn, CuSnZn
Material contact carrier: Plastic, PA, BK
Mechanical lifespan >50 mating cycles
IEC 61076-2-101 standard
Number of pins: 4
Protection class (mounted) IP67
Plug connector: Socket, angled, M12
Current load capacity per pin (at 40°C): 4.0 A
Ambient temperature: -40°C...+85°C
Pollution level 3
Coding: A
Constant resistance 8 mΩ
Material over-throw: Metal, GD-ZN, nickel-plated
Connection type: Screw/terminal connection
Connection cross-section: Max. 0.75 mm²
Cable outlet 4...6 mm

Type: WWAKC4K

Product type: Sensor/actuator connector

Connector standard: Sensor connector

Connection side A: M12 socket, right angle

No. of pins: 4

Nominal voltage: 250 V

Nominal current: 4.0 A

Nominal current - rounded value: 4 A

Connector cross-section (max.): 0.75 mm²

Outside Ø: 6 mm

Cross-section (sensor/actuator wiring): 0.75 mm²

Connection: Screw terminal

Thread type connection side: M12

Coding: A

Contact material: CuSnZn

max. cross section: 0.75 mm²

Features: A-coded

Min. temperature: -40 °C

Max. temperature: 85 °C

Seal type: Screw-on

Manufacturer part #: 8004808

Content: 1 pc(s)

Cable Ø: 6 mm

Cable Ø (max.): 6 mm

Cable Ø up to: 4 mm

Cable Ø range: 4 - 6 mm

Documents & Downloads

Datasheet

Datasheet 3553342 Escha 8004808 Sensor/actuator connector M12 No. of pins (RJ): 4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553342 Escha 8004808 Sensor/actuator connector M12 No. of pins (RJ): 4 1 pc(s)

Description

Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.
