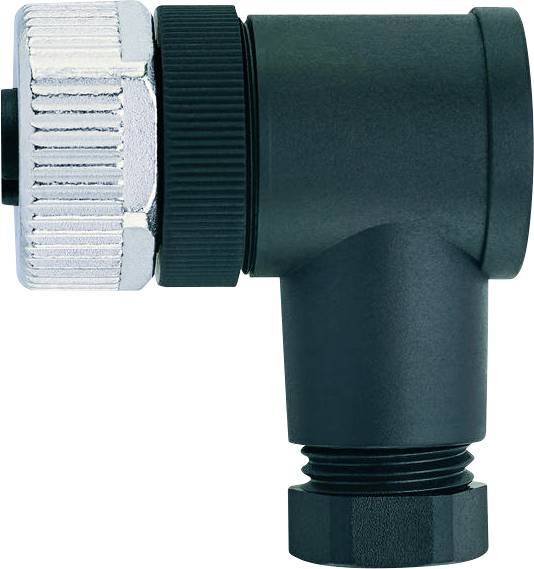

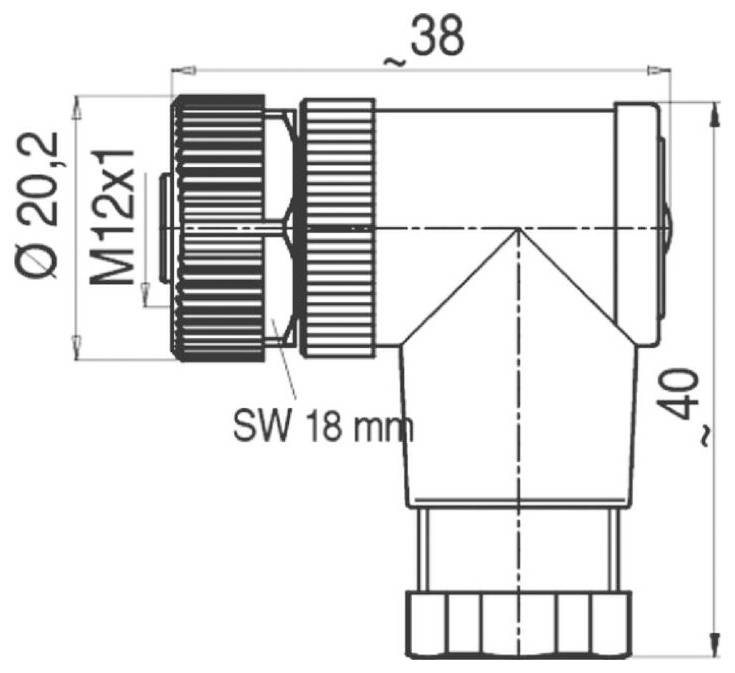

Escha 8004809 Sensor/actuator connector M12 No. of pins (RJ): 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector
Connection side A
M12 socket, right angle
No. of pins
5
Nominal voltage
60 V
Nominal current
4.0 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
6% = € 0.53
€ 8.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Rated voltage: 60V
- Insulation resistance ≥108 Ω
- Material seal (bush): FPM/FKM
- Material grip body: Plastic, PBT/PA, BK
- Material contacts: Metal, CuZn, CuSnZn
- Material contact carrier: Plastic, PA, BK
- Mechanical lifespan >50 mating cycles
- IEC 61076-2-101 standard
- Number of pins: 5
- Protection class (mounted) IP67
- Plug connector: Socket, angled, M12
- Current load capacity per pin (at 40°C): 4.0 A
- Ambient temperature: -40°C...+85°C
- Pollution level 3
- Coding: A
- Constant resistance: 3 mΩ
- Material over-throw: Metal, GD-ZN, nickel-plated
- Connection type: Screw/terminal connection
- Connection cross-section: Max. 0.75 mm²
- Cable outlet 4...6 mm
- Type
WWAKC5K
- Product type
Sensor/actuator connector
- Connection side A
M12 socket, right angle
- No. of pins
5
- Nominal voltage
60 V
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.75 mm²
- Cross-section (sensor/actuator wiring)
0.75 mm²
- Connection
Screw terminal
- Thread type connection side
M12
- Coding
A
- Contact material
CuSnZn
- max. cross section
0.75 mm²
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Seal type
Screw-on
- Manufacturer part #
8004809
- Content
1 pc(s)
- Cable Ø (max.)
6 mm
- Cable Ø up to
4 mm
- Cable Ø range
4 - 6 mm
Documents & Downloads
Datasheet
Datasheet 3553343 Escha 8004809 Sensor/actuator connector M12 No. of pins (RJ): 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3553343 Escha 8004809 Sensor/actuator connector M12 No. of pins (RJ): 5 1 pc(s)
Description
Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.
