Escha 8004831 Sensor/actuator connector M8 No. of pins (RJ): 3 1 pc(s) Piece
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector
Connection side A
M8 plug, straight
No. of pins
3
Nominal voltage
60 V
Nominal current
4.0 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
Technical specifications
- Rated voltage: 60V
- Insulation resistance ≥108 Ω
- Material grip body: Plastic, PBT/PA, BK
- Material contacts: Metal, CuZn, gold-plated
- Material contact carrier: Plastic, PA, BK
- Mechanical lifespan >100 mating cycles
- IEC 61076-2-104 standard
- Number of poles: 3
- Protection class (mounted) IP67

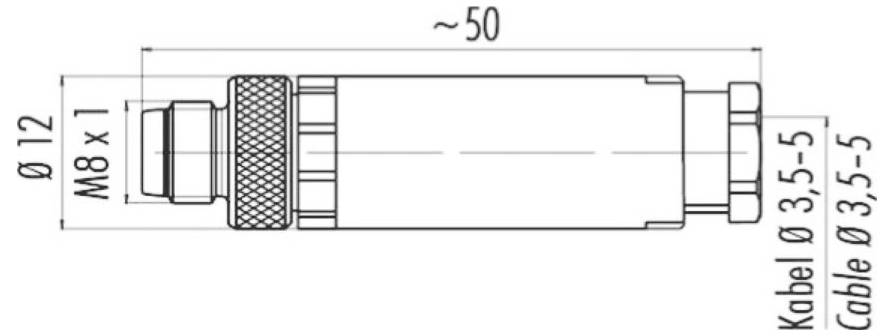

- Plug connector: Plug, straight, M8
- Current load capacity per pin (at 40°C): 4.0 A
- Ambient temperature: -40°C...+85°C
- Pollution level 3
- Coding: A
- Constant resistance: 3 mΩ
- Material over-throw: Metal, GD-ZN, nickel-plated
- Connection type: Screw/terminal connection
- Connection cross-section: Max. 0.5 mm²
- Cable outlet 3.5...5 mm
- Packaging type
Piece
- Type
SSPC3K
- Product type
Sensor/actuator connector
- Connection side A
M8 plug, straight
- No. of pins
3
- Nominal voltage
60 V
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.5 mm²
- Cross-section (sensor/actuator wiring)
0.5 mm²
- Connection
Screw terminal
- Thread type connection side
M8
- Coding
A
- Contact material
CuZn
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Seal type
Screw-on
- Manufacturer part #
8004831
- Content
1 pc(s)
- Cable Ø (max.)
5 mm
- Cable Ø up to
3.5 mm
- Cable Ø range
3.5 - 5 mm
Documents & Downloads
Datasheet
Datasheet 3553346 Escha 8004831 Sensor/actuator connector M8 No. of pins (RJ): 3 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3553346 Escha 8004831 Sensor/actuator connector M8 No. of pins (RJ): 3 1 pc(s) Piece
Description
Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.
