Escha 8008155 Sensor/actuator built-in connector M12 No. of pins (RJ): 4 1 pc(s)

A black and gold hydraulic coupler with visible grooves, used for connecting components in hydraulic systems.

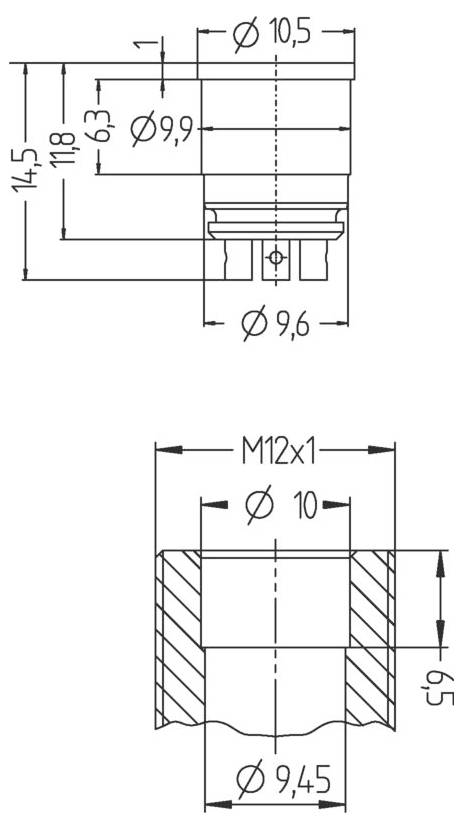

Technical drawing of a cylindrical component with measurements: top view shows diameter 10.5mm, side view shows length 14.5mm.
1/2
Product type
Sensor/actuator built-in connector
Connection side A
M12 plug, straight
No. of pins
4
Nominal voltage
250 V
Nominal current
4.0 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 2.79 / piece)
€ 2.79
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Rated voltage: 250V
  • Insulation resistance ≥108 Ω
  • Material contacts: Metal, CuZn, gold-plated
  • Material contact carrier: Plastic, PA GF, BK
  • Mechanical lifespan >100 mating cycles
  • IEC 61076-2-101 standard
  • Number of pins: 4
  • Protection class (mounted) IP65, IP67
  • Plug connector: Plug, M12
  • Current load capacity per pin (at 40°C): 4.0 A
  • Ambient temperature: -30°C...+90°C
  • Pollution level 3/2
  • Coding: A
  • Connection type: Solder connection
Type

EWAS4

Product type

Sensor/actuator built-in connector

Connection side A

M12 plug, straight

No. of pins

4

Nominal voltage

250 V

Nominal current

4.0 A

Nominal current - rounded value

4 A

Connection

Soldering

Thread type connection side

M12

Coding

A

Contact material

CuZn

Min. temperature

-30 °C

Max. temperature

90 °C

Manufacturer part #

8008155

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3553351 Escha 8008155 Sensor/actuator built-in connector M12 No. of pins (RJ): 4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553351 Escha 8008155 Sensor/actuator built-in connector M12 No. of pins (RJ): 4 1 pc(s)

Description

Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.

This text is machine translated.
