Connectors & CablesConnectorsIndustrial ConnectorsSensor/Actuator Connectors

Escha 8008163 ESP3S

Black and gold electric plug adapter, cylindrical in shape, with two metal pins at the base.
'Numbers 1, 3 and 4 in a circle.'

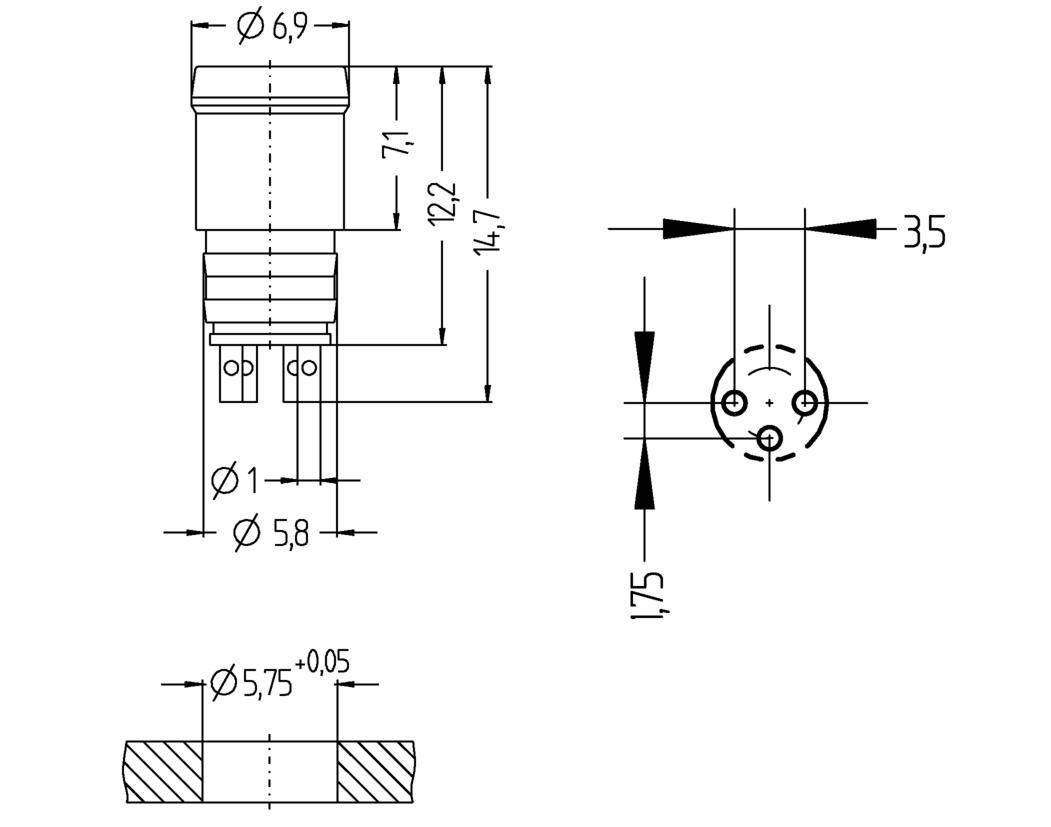

Technical drawing of an electrical plug with dimensions. Shows front view and cross-section. Measurements in millimetres.
1/3
Product type
Sensor/actuator built-in connector
Connector type
Plug, mount
Connector standard
Sensor connector
Connection side A
M8 plug, built-in
Connection side B
Customisable
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
7 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 2.99 / piece)
€ 2.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 7 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Escha 8008163 ESP3S

Our service for you

  • 'PC T' Logo in Black and White with a Stylised 'C' Encircling the 'P'.
  • 'CRAUS' logo in stylised lettering, predominantly in capital letters, on a white background.

Technical specifications

Type

ESP3S

Product type

Sensor/actuator built-in connector

Connector type

Plug, mount

Connector standard

Sensor connector

Connection side A

M8 plug, built-in

Connection side B

Customisable

No. of pins

3

Nominal voltage

60 V

Nominal current

4 A

Nominal current - rounded value

4 A

Connection

Soldering

Bore Ø

5.75 mm

Thread type connection side

M8

Cable colour

Black

Coding

A

Contact material

CuSn

Contact surface

Gold plated

IP67

Min. temperature

-30 °C

Max. temperature

+90 °C

Seal type

Screw-on

Manufacturer part #

8008163

Content

1 pc(s)

RoHS-compliant

Yes

Documents & Downloads

Datasheet

Datasheet 716580 Escha 8008163 ESP3S

User & Safety Instructions

User & Safety Instructions 716580 Escha 8008163 ESP3S
