Name: Escha 8009675 Sensor/actuator splitter/adapter M12 Adapter No. of pins (RJ): 4 1 pc(s) Single
Brand: Escha
SKU: 3553353
Availability: InStock

'T-shaped pneumatic connector with threaded ends, designed for secure connections in fluid or air systems.'

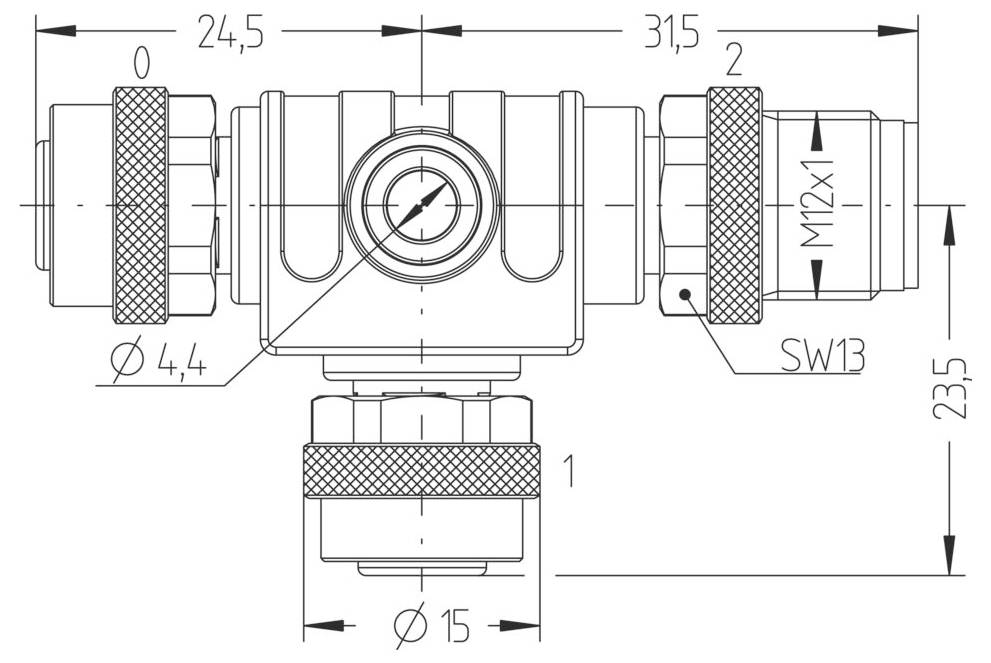

Technical drawing of a T-shaped pipe fitting with labeled dimensions. The fitting has a central circular section and threaded ends marked M12x1 and SW13.

1/2

Product type

Sensor/actuator splitter/adapter

Connector type

Adapter

Connection side A

M12 socket, straight

Connection side B

M12 socket, straight

No. of pins

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

9 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 28.99 / piece)

€ 28.99

incl. VAT

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Insulation resistance ≥108 Ω
Material seal (bush): FPM/FKM
Material grip body: Plastic, TPU, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-101 standard
Protection type (mounted): IP65, IP67, IP68
Ambient temperature: -30°C...+90°C
Pollution level 3
Rated voltage (side A | side B): 250V
Material contacts (side A | side B): Metal, CuZn, gold-plated
Material contact carrier (page A | page B): Plastic, TPU, BK
Material over-throw (side A | side B): Metal, CuZn, nickel-plated
Number of pins (page A | page B): 4
Current rating per pin (at 40°C) (side A | side B): 4 A.
Coding (page A | page B): A.
Output (side A | side B): Socket, M12

Packaging type: Single

Type: FKM4-FKM4-FSM4

Product type: Sensor/actuator splitter/adapter

Connector type: Adapter

Connection side A: M12 socket, straight

Connection side B: M12 socket, straight

No. of pins: 4

Nominal voltage: 250 V

Nominal current: 4 A

Nominal current - rounded value: 4 A

Connection: M12 socket

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: A

Contact material: CuZn

Min. temperature: -30 °C

Max. temperature: 90 °C

Manufacturer part #: 8009675

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3553353 Escha 8009675 Sensor/actuator splitter/adapter M12 Adapter No. of pins (RJ): 4 1 pc(s) Single

User & Safety Instructions

User & Safety Instructions 3553353 Escha 8009675 Sensor/actuator splitter/adapter M12 Adapter No. of pins (RJ): 4 1 pc(s) Single

Description

Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.
