Name: Escha 8027383 Sleeve plug Sleeve plug 0.5 m No. of pins (RJ): 4 1 pc(s)
Brand: Escha
SKU: 3553374
Availability: BackOrder

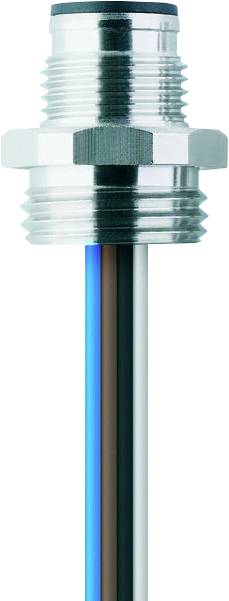

'A hexagonal-head metal bolt with blue, black, and brown wires extending downwards, against a plain white background.'

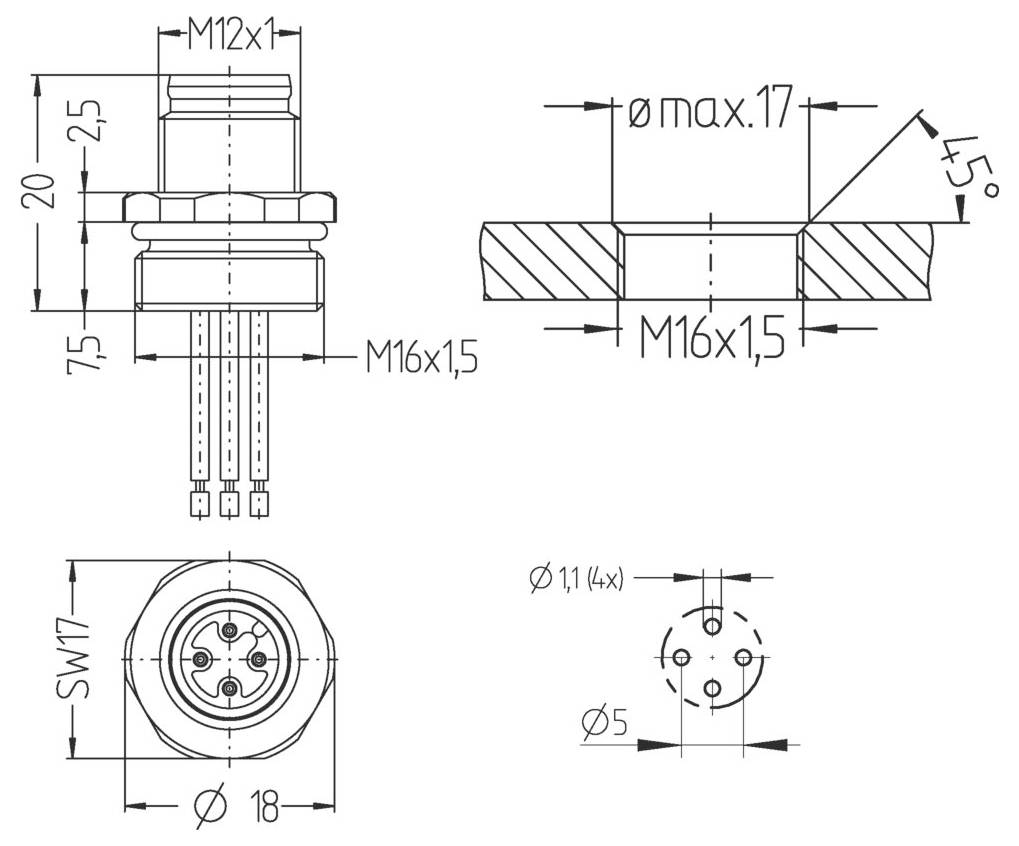

'Technical drawing of a cylindrical electrical connector: top view shows four pins; side view and section highlight dimensions and thread specifications.'

1/2

Product type

Sleeve plug

Connector type

Sleeve plug

Connection side A

M12 plug, straight

Connection side B

Cable, open end

No. of pins

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 14.99 / piece)

€ 14.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Rated voltage: 250V
Insulation resistance ≥108 Ω
Material contacts: Metal, CuZn, gold-plated
Material contact carrier: Plastic, TPU, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-101 standard
Pin assignment:1 BN 2 WH, 3 BU, 4 BK
Number of pins: 4
Protection type (mounted): IP65, IP67, IP68
Plug connector: Plug, straight, M12
Current load capacity per pin (at 40°C): 4.0 A
Ambient temperature: -30°C...+90°C
Pollution level 3
WIRE COLORS: BN, WH, BU, BK
Wire cross-section 4 x 0.34 mm²
Material wire insulation: PVC
Coding: A
Connection type: Wire connection
Fixing thread: M16x1.5
Wire length 0.5 m.
Material flange housing: Metal, CuZn, nickel-plated
Material outer seal: NBR
Mounting direction: Front panel fitting (without fixing nut)

Type: EC-FS4-0,5/16

Product type: Sleeve plug

Connector type: Sleeve plug

Connection side A: M12 plug, straight

Connection side B: Cable, open end

No. of pins: 4

Cable length: 0.5 m

Nominal voltage: 250 V

Nominal current: 4.0 A

Nominal current - rounded value: 4 A

Cross-section (sensor/actuator wiring): 0.34 mm²

Connection: Braid

Thread type (wiring and installation): M16

Coding: A

Contact material: CuZn

Sensor/actuator connectivity fittings: Front panel fitting

Min. temperature: -30 °C

Max. temperature: 90 °C

Manufacturer part #: 8027383

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3553374 Escha 8027383 Sleeve plug Sleeve plug 0.5 m No. of pins (RJ): 4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553374 Escha 8027383 Sleeve plug Sleeve plug 0.5 m No. of pins (RJ): 4 1 pc(s)

Description

Our connection and connecting cables in the M8, M12 and M23 designs as well as ET and valve connectors meet the typical requirements in the industrial environment. LED versions, 360° shielded variants and a broad range of cable qualities leave no wishes unfulfilled. Navigate through the categories to narrow your search results.
