Name: Escha 8031860 Sensor/actuator connector M12 No. of pins (RJ): 12 1 pc(s) Piece
Brand: Escha
SKU: 3553383
Availability: BackOrder

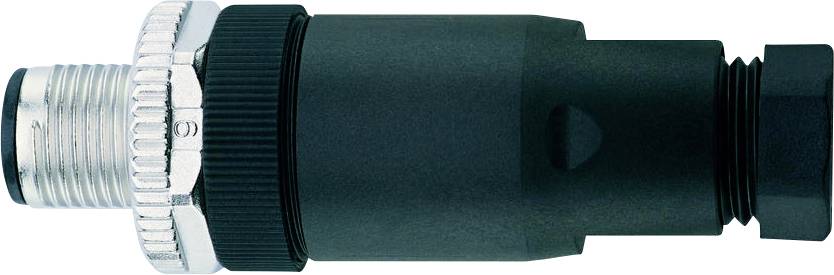

A close-up of a cylindrical industrial connector with threaded metal and black plastic components, used for secure electrical connections.

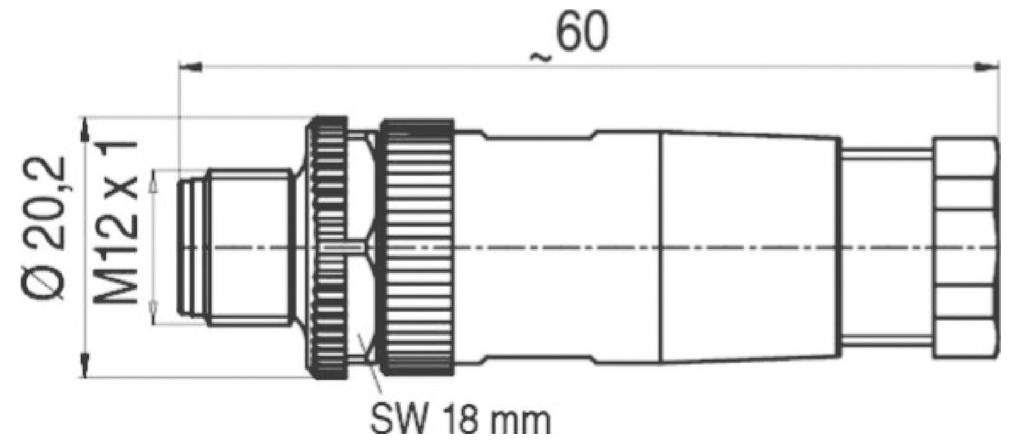

'Technical diagram of an M12 connector with dimensions: length approximately 60 mm, diameter 20.2 mm, and width across flats 18 mm.'

1/2

Product type

Sensor/actuator connector

Connection side A

M12 plug, straight

No. of pins

Nominal voltage

30 V

Nominal current

2.0 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 38.99 / piece)

€ 38.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Rated voltage: 30V
Insulation resistance ≥108 Ω
Material grip body: Plastic, PA, BK
Material contacts: Metal, CuZn, gold-plated
Material contact carrier: Plastic, PA, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-101 standard
Number of poles: 12
Protection class (mounted) IP67
Plug connector: Plug, straight, M12
Current load capacity per pin (at 40°C): 2.0 A
Ambient temperature: -40°C...+85°C
Pollution level 3
Coding: A
Constant resistance: 3 mΩ
Material over-throw: Metal, GD-ZN, nickel-plated
Connection type: Solder connection
Connection cross-section: Max. 0.25 mm²
Cable outlet 6...8 mm

Packaging type: Piece

Type: WASC12L

Product type: Sensor/actuator connector

Connection side A: M12 plug, straight

No. of pins: 12

Nominal voltage: 30 V

Nominal current: 2.0 A

Nominal current - rounded value: 2 A

Connector cross-section (max.): 0.25 mm²

Cross-section (sensor/actuator wiring): 0.25 mm²

Connection: Soldering

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: A

Contact material: CuZn

max. cross section: 0.25 mm²

Features: A-coded

Min. temperature: -40 °C

Max. temperature: 85 °C

Manufacturer part #: 8031860

Content: 1 pc(s)

Cable Ø (max.): 8 mm

Cable Ø up to: 6 mm

Cable Ø range: 6 - 8 mm

Documents & Downloads

Datasheet

Datasheet 3553383 Escha 8031860 Sensor/actuator connector M12 No. of pins (RJ): 12 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3553383 Escha 8031860 Sensor/actuator connector M12 No. of pins (RJ): 12 1 pc(s) Piece

Description

Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.
