Name: Escha 8035193 Sensor/actuator connector M12 No. of pins (RJ): 8 1 pc(s)
Brand: Escha
SKU: 3553385
Availability: BackOrder

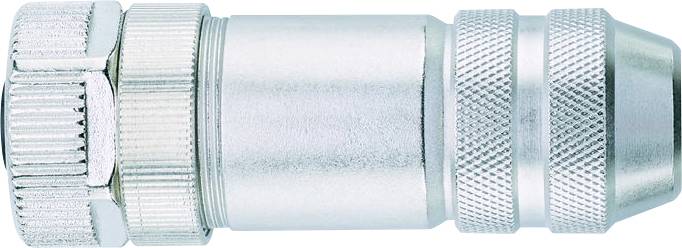

A metallic hose nozzle with textured grips designed for adjustable water flow, featuring a sleek, cylindrical shape.

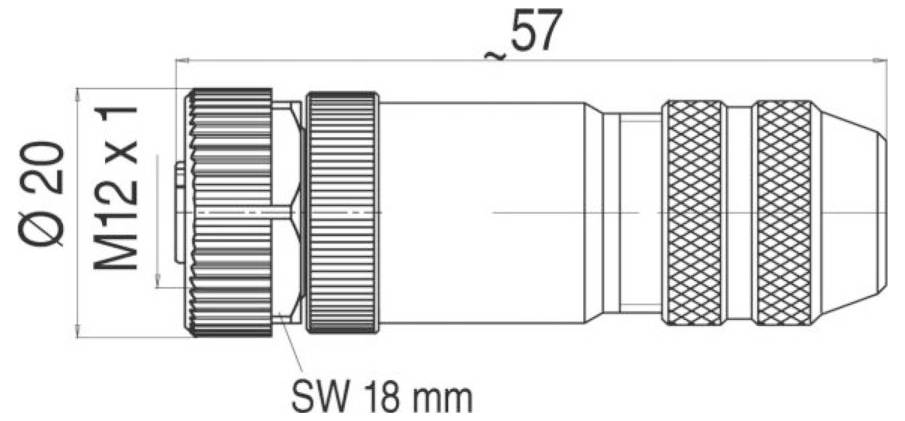

Technical drawing of an M12 connector, 57mm long with a 20mm diameter. The width across flats is SW 18 mm.

1/2

Product type

Sensor/actuator connector

Connection side A

M12 socket, straight

No. of pins

Nominal voltage

30 V

Nominal current

2.0 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 37.99 / piece)

€ 37.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Rated voltage: 30V
Insulation resistance ≥108 Ω
Material: Die-cast zinc, nickel-plated
Material contacts: Metal, CuZn, gold-plated
Material contact carrier: Plastic, PA, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-101 standard
Number of pins: 8
Protection class (mounted) IP67
Plug connector: Socket, straight, M12
Current load capacity per pin (at 40°C): 2.0 A
Ambient temperature: -40°C...+85°C
Pollution level 3
Coding: A
Constant resistance: 3 mΩ
Material over-throw: Metal, GD-ZN, nickel-plated
Shielding: With shielding
Connection type: Screw/terminal connection
Connection cross-section: Max. 0.50 mm²
Cable outlet 6...8 mm

Type: WAKCS8K

Product type: Sensor/actuator connector

Connection side A: M12 socket, straight

No. of pins: 8

Nominal voltage: 30 V

Nominal current: 2.0 A

Nominal current - rounded value: 2 A

Connector cross-section (max.): 0.5 mm²

Cross-section (sensor/actuator wiring): 0.50 mm²

Connection: Screw terminal

Thread type connection side: M12

Coding: A

Contact material: CuZn

max. cross section: 0.50 mm²

Features: Shielded

Min. temperature: -40 °C

Max. temperature: 85 °C

Seal type: Screw-on

Manufacturer part #: 8035193

Content: 1 pc(s)

Cable Ø (max.): 8 mm

Cable Ø up to: 6 mm

Cable Ø range: 6 - 8 mm

Documents & Downloads

Datasheet

Datasheet 3553385 Escha 8035193 Sensor/actuator connector M12 No. of pins (RJ): 8 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553385 Escha 8035193 Sensor/actuator connector M12 No. of pins (RJ): 8 1 pc(s)

Description

Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.
