Name: Escha 8035526 Cable connection M12 3.0 m No. of pins (RJ): 4 1 pc(s)
Brand: Escha
SKU: 3553386
Availability: BackOrder

Technical specifications

WIRE COLORS: WH, BU, OG, YE
Core cross-section 1 x 4 x AWG22, star quad
Outer diameter of sheath 6.50 mm
Special properties: Flame-resistant, halogen-free, high flexibility, hydrolysis-resistant, LABS-free, microbe-resistant, oil-resistant, ozone-resistant, PROFINET type C, recyclable, RoHS compliant, acid and alkali-resistant, drag chains capable, sea-water resistant, UN ECE R 118, UV-resistant
Bending radius (moving) 8 x Ø-cable
Bending radius (fixed) 4 x Ø-cable
Halogen-free: Yes
LINE QUALITY S2171, PUR, UL
Wire composition 7 x 0.25 mm
Sheath color: Green, similar to RAL6018
Material wire insulation: FRNC
Material cable jacket: PUR
Nominal voltage cable 600 V UL-rating
Drag chain insert 3 MIO. Bending cycles
Temperature range (moving): -30°C...+70°C.
Temperature range (fixed): -40°C...+75°C.
Rated voltage (side A | side B): 60V
Forward resistance (side A | side B): 5 mΩ
Insulation resistance (side A | side B): ≥108 Ω
Material grip body (side A | side B): Plastic, TPU, BK
Material contacts (side A | side B): Metal, CuSn, gold plated
Material contact carrier (side A | side B): Plastic, TPU, GN
Material over-throw (side A | side B): Metal, CuZn, nickel-plated
Mechanical life (page A | page B): >100 mating cycles
Standards (page A | page B): IEC 61076-2-101
Pin assignment (page A | page B): 1 YE, 2 WH, 3 OG, 4 BU
Number of pins (page A | page B): 4
Protection type (mounted) (side A | side B): IP65, IP67, IP68
Current rating per pin (at 40°C) (side A | side B): 4.0 A.
Ambient temperature (page A | page B): -30°C...+90°C.
Pollution level (page A | page B): 3
Shielding (side A | side B): With shielding

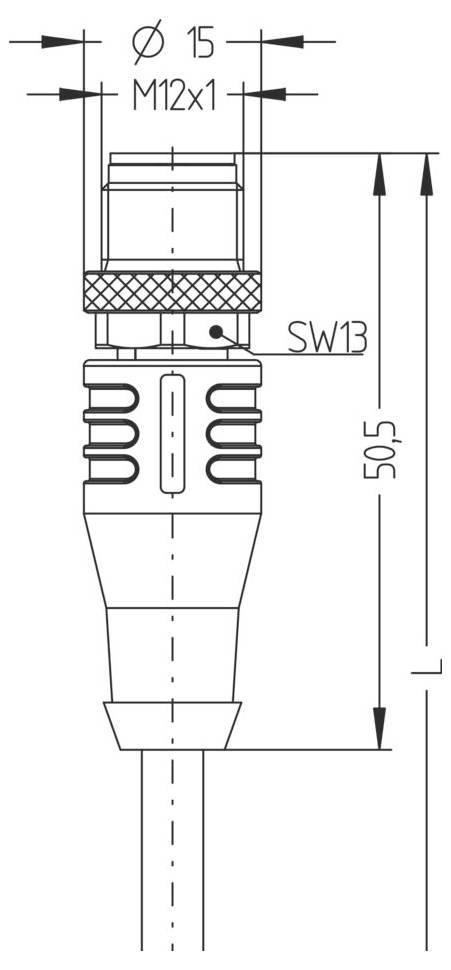

Connector (side A | side B): Male, straight, M12
Transfer properties (page A | page B): Cat5e
Transfer features: Cat5e
Coding (Page A | Page B): D.

Type: IE-WASSY4.029-3-IE-WASSY4.029/S2171

Product type: Cable connection

Connector standard: Sensor connector

Connection side A: M12 plug, straight

Connection side B: M12 plug, straight

No. of pins: 4

Cable length: 3.0 m

Jacket material: PUR

Nominal voltage: 60 V

Nominal current: 4.0 A

Nominal current - rounded value: 4 A

Outside Ø: 6.50 mm

Connection: M12 plug

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: D

Contact material: CuSn, gold plated

Min. temperature: -40 °C

Max. temperature: 75 °C

Manufacturer part #: 8035526

Content: 1 pc(s)

Cable Ø: 6.50 mm

Documents & Downloads

Datasheet

Datasheet 3553386 Escha 8035526 Cable connection M12 3.0 m No. of pins (RJ): 4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553386 Escha 8035526 Cable connection M12 3.0 m No. of pins (RJ): 4 1 pc(s)

Description

Shielded PUR cable for secure and industrial data transfer in automation and fieldbus technology. The cable is CMX-certified and meets the specifications by Cat5e (elec. Properties based on EN50288-2-1). The materials and design allow the cable to subjected to increased mechanical strain (abrasion, bends, vibrations etc.). The use in drag chains with up to 3 MIO. Bending cycles is possible without any risks.

This text is machine translated.

Description

Shielded PUR cable for secure and industrial data transfer in automation and fieldbus technology. The cable is CMX-certified and meets the specifications by Cat5e (elec. Properties based on EN50288-2-1). The materials and design allow the cable to subjected to increased mechanical strain (abrasion, bends, vibrations etc.). The use in drag chains with up to 3 MIO. Bending cycles is possible without any risks.

This text is machine translated.
