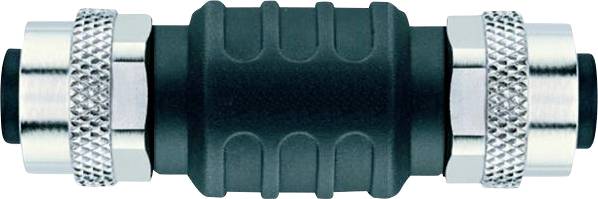

Escha 8041351 Sensor/actuator adapter M12 Adapter No. of pins (RJ): 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator adapter
Connector type
Adapter
Connector standard
Sensor connector
Connection side A
M12 socket, straight
Connection side B
M12 socket, straight
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.92
€ 20.08
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.00 / piece)
€ 21.00
plus VAT.
Technical specifications
- Rated voltage (side A | side B): 60V
- Insulation resistance (side A | side B): ≥108 Ω
- Material grip body (side A | side B): Plastic, TPU, BK
- Material contacts (side A | side B): Metal, CuZn, gold-plated
- Material contact carrier (page A | page B): Plastic, TPU, BK
- Material over-throw (side A | side B): Metal, CuZn, nickel-plated
- Mechanical life (page A | page B): >100 mating cycles
- Standards (page A | page B): IEC 61076-2-101
- Number of pins (page A | page B): 5
- Protection type (mounted) (side A | side B): IP65, IP67, IP68
- Current rating per pin (at 40°C) (side A | side B): 4.0 A.
- Ambient temperature (page A | page B): -30°C...+90°C.
- Pollution level (page A | page B): 3
- Connector (side A | side B): Socket, M12
- Coding (page A | page B): A.
- Material seal (bushing) (side A | side B): FPM/FKM
- Type
AL-WAK4.5-AL-WAK4.5
- Product type
Sensor/actuator adapter
- Connector type
Adapter
- Connector standard
Sensor connector
- Connection side A
M12 socket, straight
- Connection side B
M12 socket, straight
- No. of pins
5
- Nominal voltage
60 V
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Connection
M12 socket
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
A
- Contact material
CuZn
- Contact surface
Gold plated
- Features
A-coded
- Min. temperature
-30 °C
- Max. temperature
90 °C
- Manufacturer part #
8041351
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3553388 Escha 8041351 Sensor/actuator adapter M12 Adapter No. of pins (RJ): 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3553388 Escha 8041351 Sensor/actuator adapter M12 Adapter No. of pins (RJ): 5 1 pc(s)
Description
Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.
