Name: Escha 8041352 Sensor/actuator adapter M12 Plug No. of pins (RJ): 5 1 pc(s) Piece
Brand: Escha
SKU: 3553389
Availability: BackOrder

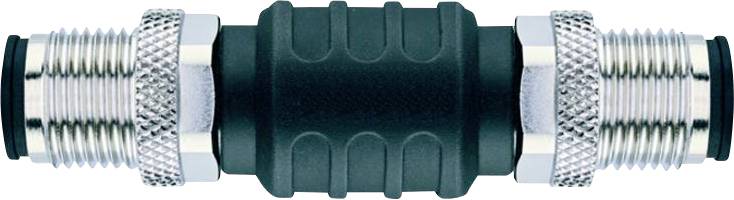

A close-up of a cylindrical connector with textured metal ends and a black ridged center, designed for secure electrical connections.

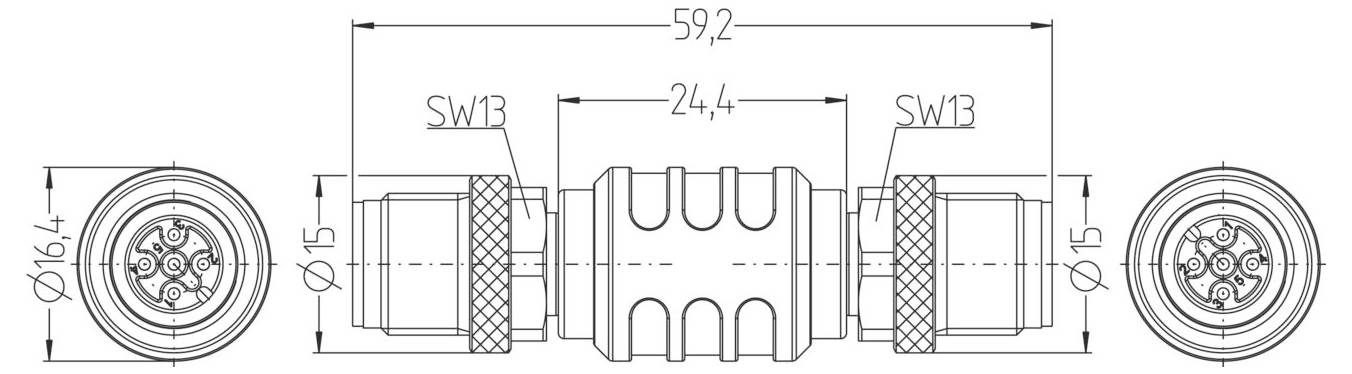

Technical drawing of a cylindrical connector with dimensions: length 59.2 mm, diameter 16.4 mm, socket width 13 mm.

1/2

Product type

Sensor/actuator adapter

Connector type

Plug

Connection side A

M12 plug, straight

Connection side B

M12 plug, straight

No. of pins

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 25.99 / piece)

€ 25.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Rated voltage (side A | side B): 60V
Insulation resistance (side A | side B): ≥108 Ω
Material grip body (side A | side B): Plastic, TPU, BK
Material contacts (side A | side B): Metal, CuZn, gold-plated
Material contact carrier (page A | page B): Plastic, TPU, BK
Material over-throw (side A | side B): Metal, CuZn, nickel-plated
Mechanical life (page A | page B): >100 mating cycles
Standards (page A | page B): IEC 61076-2-101
Number of pins (page A | page B): 5
Protection type (mounted) (side A | side B): IP65, IP67, IP68
Current rating per pin (at 40°C) (side A | side B): 4.0 A.
Ambient temperature (page A | page B): -30°C...+90°C.
Pollution level (page A | page B): 3
Connector (side A | side B): Male, M12
Coding (page A | page B): A.

Packaging type: Piece

Type: AL-WAS4.5-AL-WAS4.5

Product type: Sensor/actuator adapter

Connector type: Plug

Connection side A: M12 plug, straight

Connection side B: M12 plug, straight

No. of pins: 5

Jacket material: TPU

Nominal voltage: 60 V

Nominal current: 4.0 A

Nominal current - rounded value: 4 A

Connection: M12 plug

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: A

Contact material: CuZn

Contact surface: Gold plated

Min. temperature: -30 °C

Max. temperature: 90 °C

Manufacturer part #: 8041352

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3553389 Escha 8041352 Sensor/actuator adapter M12 Plug No. of pins (RJ): 5 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3553389 Escha 8041352 Sensor/actuator adapter M12 Plug No. of pins (RJ): 5 1 pc(s) Piece

Description

Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.

This text is machine translated.
