Name: Escha 8043824 Sensor/actuator cable M12 5.0 m No. of pins (RJ): 5 1 pc(s)
Brand: Escha
SKU: 3553402
Availability: BackOrder

Technical specifications

Rated voltage: 60V
Insulation resistance ≥108 Ω
Material seal (bush): FPM/FKM
Material grip body: Plastic, TPU, BK
Material contacts: Metal, CuSn, gold plated
Material contact carrier: Plastic, TPU, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-101 standard
Pin assignment:1 BN, 2 WH, 3 BU, 4 BK, 5 Gy
Number of pins: 5
Protection type (mounted): IP65, IP67, IP68
Plug connector: Socket, straight, M12
Current load capacity per pin (at 40°C): 4.0 A
Ambient temperature: -30°C...+90°C
Pollution level 3
WIRE COLORS: BN, WH, BU, BK, GY
Wire cross-section 5 x 0.34 mm²
Outer diameter of sheath 5.20 mm
Special properties: Flame-resistant, halogen-free, hydrolysis-resistant, LABS-free, oil-resistant, Ozone-resistant, recyclable, RoHS-compliant, acid and alkali-resistant, drag-chain compatible, Sweat-resistant, seawater resistant, silicone-free, torsion-resistant, UV-resistant
Bending radius (moving) 10 x Ø-cable
Bending radius (fixed) 5 x Ø-cable
Halogen-free: Yes
LINE QUALITY S370, PUR, UL
Wire composition 42 x 0.10 mm
Sheath color: BK, similar to RAL9005
Material wire insulation: PP
Material cable jacket: PUR
Nominal voltage cable ≤300 V
Drag chain insert: 3 MIO. Cycles
Temperature range (drag chain): -25°C…+60°C.
Temperature range (moving): -30°C...+90°C.
Temperature range (fixed): -40°C...+90°C.
Torsion: +/-180°/m, < 1 MIO. Cycles
Coding: A
Constant resistance 5 mΩ
End set: Open cable ends
Material over-throw: Metal, CuZn, nickel-plated

Type: AL-WAK4.5-5/S370

Product type: Sensor/actuator cable

Connector standard: Sensor connector

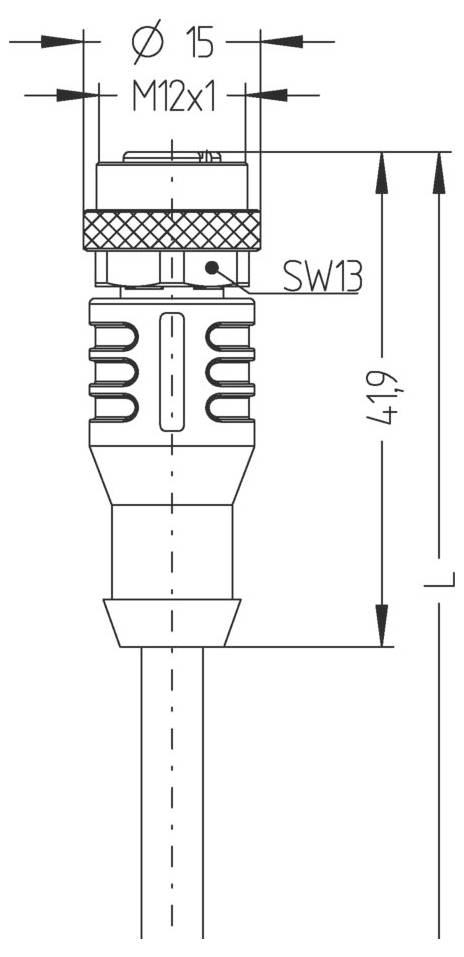

Connection side A: M12 socket, straight

Connection side B: Cable, open end

No. of pins: 5

Cable length: 5.0 m

Jacket material: PUR

Nominal voltage: 60 V

Nominal current: 4.0 A

Nominal current - rounded value: 4 A

Outside Ø: 5.20 mm

Cross-section (sensor/actuator wiring): 0.34 mm²

Connection: Open cable ends

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: A

Contact material: CuSn, gold plated

Contact surface: Gold plated

max. cross section: 0.34 mm²

Features: Suitable for drag chains

Min. temperature: -40 °C

Max. temperature: 90 °C

Manufacturer part #: 8043824

Content: 1 pc(s)

Cable Ø: 5.20 mm

Documents & Downloads

Datasheet

Datasheet 3553402 Escha 8043824 Sensor/actuator cable M12 5.0 m No. of pins (RJ): 5 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553402 Escha 8043824 Sensor/actuator cable M12 5.0 m No. of pins (RJ): 5 1 pc(s)

Description

Flexible, silicone and halogen-free control cable with high mechanical strength. The cable is resistant to chemicals, hydrolysis and microbes. The drag chain insert is at a bending radius of min. 10xd is possible. Due to its welding spark resistance, the wire is very well suitable for flexible use in the field of robot technology, machine tools and chip-repelling production. The lines meet the requirements of UL and CSA (UL10493/20549; cULus).
