Escha 8044017 AL-SKP4-2-AL-SSP4/S370

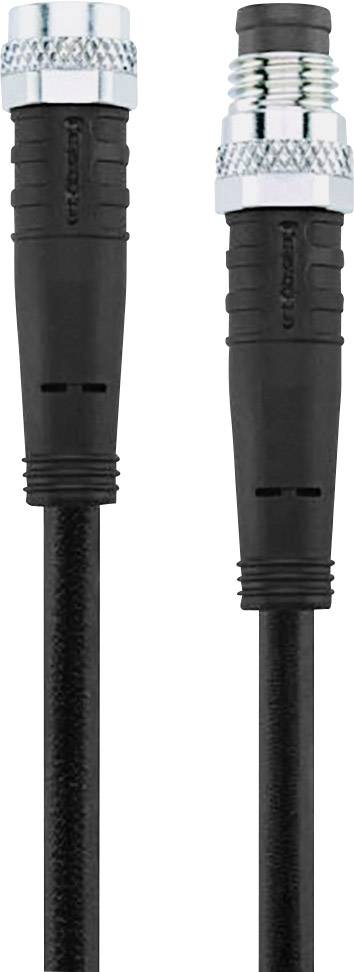

Two black cables with plugs lying side by side, with silver screw caps at each end.
'Circle' with four numbered blue points: 1 bottom left, 2 top left, 3 bottom right, 4 top right.
Four numbered circles in a blue circle: top left '4', top right '2', bottom left '3', bottom right '1'.

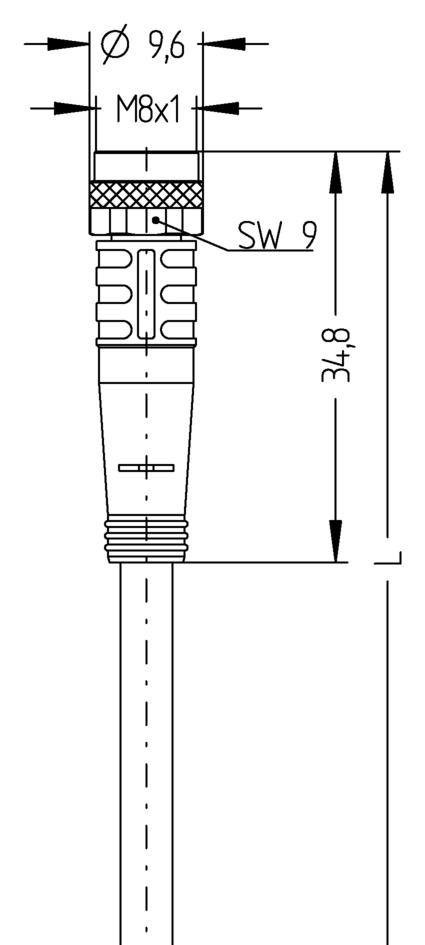

Technical drawing of an M8 connector with dimensions: total length 34.8 mm, plug diameter 9.6 mm, thread M8x1.
1/4
Image similar
Product type
Sensor/actuator connector (pre-fab)
Connector type
Plug, straight
Socket, straight
Connector standard
Sensor connector
Connection side A
M8 plug, straight
Connection side B
M8 plug, straight
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
10 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 19.99 / piece)
€ 19.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 10 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Escha 8044017 AL-SKP4-2-AL-SSP4/S370

Our service for you

  • 'PC T' Logo in Black and White with a Stylised 'C' Encircling the 'P'.
  • 'CRAUS' logo in stylised lettering, predominantly in capital letters, on a white background.

Technical specifications

Type

AL-SKP4-2-AL-SSP4/S370

Product type

Sensor/actuator connector (pre-fab)

Connector type

Plug, straight

Socket, straight

Connector standard

Sensor connector

Connection side A

M8 plug, straight

Connection side B

M8 plug, straight

No. of pins

4

Cable length

2.00 m

Jacket material

PUR

Nominal voltage

60 V

Nominal current

4 A

Nominal current - rounded value

4 A

Cross-section (sensor/actuator wiring)

0.25 mm²

Thread type connection side

M8

Cable colour

Black

Coding

A

Contact material

CuSn

Contact surface

Gold plated

IP67/IP69K

Features

flame-retardant

Ozone-resistant

Acid-resistant/non-caustic

Corrosion-resistant

UV-resistant

Twistable

Silicone-free

Oil-resistant

+ LED

Min. temperature

-30 °C

Max. temperature

+90 °C

Seal type

Screw-on

Manufacturer part #

8044017

Content

1 pc(s)

RoHS-compliant

Yes

Documents & Downloads

Datasheet

Datasheet 717521 Escha 8044017 AL-SKP4-2-AL-SSP4/S370

User & Safety Instructions

User & Safety Instructions 717521 Escha 8044017 AL-SKP4-2-AL-SSP4/S370
