Name: Escha 8044017 Cable connection M8 2.0 m No. of pins (RJ): 4 1 pc(s)
Brand: Escha
SKU: 3553407
Availability: BackOrder

Technical specifications

Material seal (bush): FPM/FKM
WIRE COLORS: BN, WH, BU, BK
Wire cross-section 4 x 0.25 mm²
Outer diameter of sheath: 4.30mm
Special properties: Flame-resistant, halogen-free, hydrolysis-resistant, LABS-free, oil-resistant, Ozone-resistant, recyclable, RoHS-compliant, acid and alkali-resistant, drag-chain compatible, Sweat-resistant, seawater resistant, silicone-free, torsion-resistant, UV-resistant
Bending radius (moving) 10 x Ø-cable
Bending radius (fixed) 5 x Ø-cable
Halogen-free: Yes
LINE QUALITY S370, PUR, UL
Wire composition 32 x 0.10 mm
Sheath color: BK, similar to RAL9005
Material wire insulation: PP
Material cable jacket: PUR
Nominal voltage cable ≤300 V
Drag chain insert: 5 MIO. Cycles
Temperature range (drag chain): -25°C…+60°C.
Temperature range (moving): -30°C...+90°C.
Temperature range (fixed): -40°C...+90°C.
Torsion: +/-360°/m, ≥ 2 MIO. Cycles
Rated voltage (side A | side B): 60V
Forward resistance (side A | side B): 5 mΩ
Insulation resistance (side A | side B): ≥108 Ω
Material grip body (side A | side B): Plastic, TPU, BK
Material contacts (side A | side B): Metal, CuSn, gold plated
Material contact carrier (page A | page B): Plastic, TPU, BK
Material over-throw (side A | side B): Metal, CuZn, nickel-plated
Mechanical life (page A | page B): >100 mating cycles
Standards (page A | page B): IEC 61076-2-104
Pin assignment (page A | page B): 1 BN, 2 WH, 3 BU, 4BK
Number of pins (page A | page B): 4
Protection type (mounted) (side A | side B): IP65, IP67, IP68
Connector (side A | side B): Female, straight, M8;male, straight, M8
Current rating per pin (at 40°C) (side A | side B): 4.0 A.
Ambient temperature (page A | page B): -30°C...+90°C.
Pollution level (page A | page B): 3/2

Type: AL-SKP4-2-AL-SSP4/S370

Product type: Cable connection

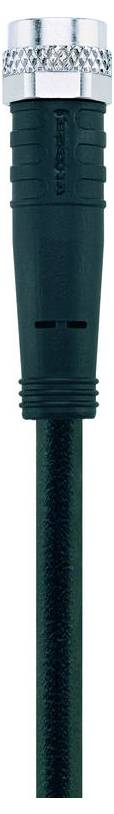

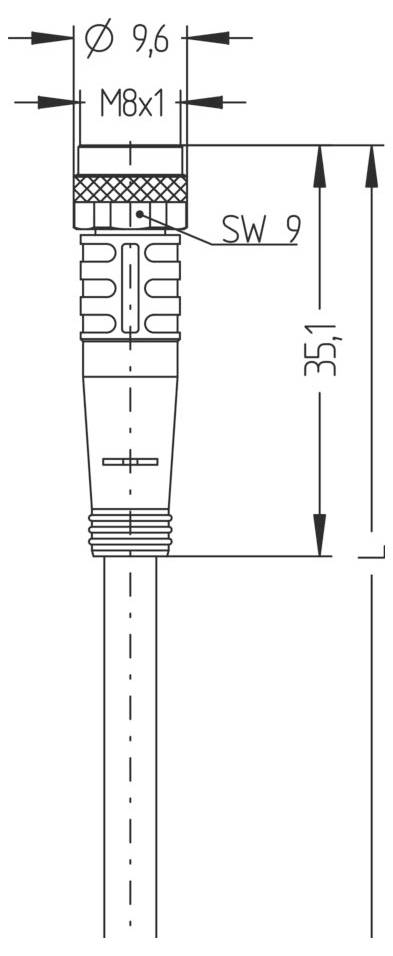

Connection side A: M8 socket, straight

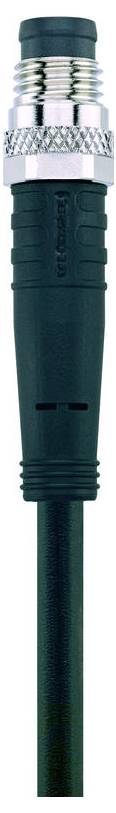

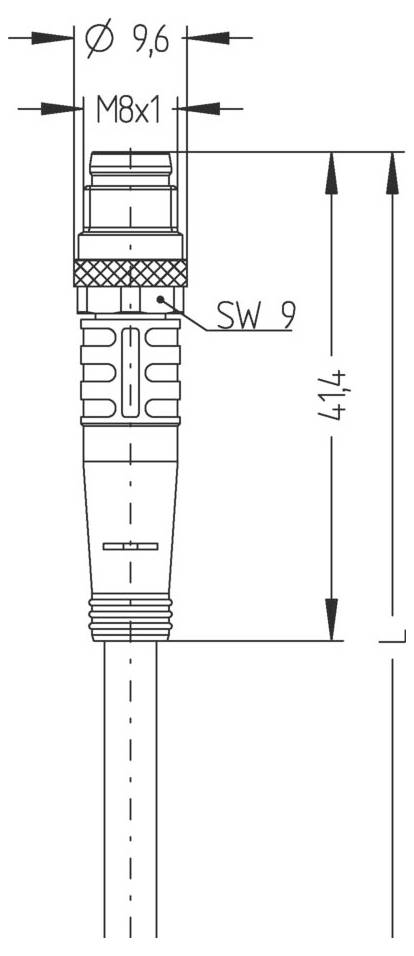

Connection side B: M8 plug, straight

No. of pins: 4

Cable length: 2.0 m

Jacket material: PUR

Nominal voltage: 60 V

Nominal current: 4.0 A

Nominal current - rounded value: 4 A

Connector cross-section (max.): 0.25 mm²

Outside Ø: 4.30 mm

Cross-section (sensor/actuator wiring): 0.25 mm²

Connection: Socket

Thread type connection side: M8

Thread type (wiring and installation): M8

Contact material: CuSn, gold plated

max. cross section: 0.25 mm²

Min. cross section: 0.25 mm²

Features: Suitable for drag chains

Min. temperature: -40 °C

Max. temperature: 90 °C

Manufacturer part #: 8044017

Content: 1 pc(s)

Cable Ø: 4.30 mm

Cable Ø (max.): 4.30 mm

Cable Ø range: 4.30 mm (max)

Documents & Downloads

Datasheet

Datasheet 3553407 Escha 8044017 Cable connection M8 2.0 m No. of pins (RJ): 4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553407 Escha 8044017 Cable connection M8 2.0 m No. of pins (RJ): 4 1 pc(s)

Description

Flexible, silicone and halogen-free control cable with high mechanical strength. The cable is resistant to chemicals, hydrolysis and microbes. The drag chain insert is at a bending radius of min. 10xd is possible. Due to its welding spark resistance, the wire is very well suitable for flexible use in the field of robot technology, machine tools and chip-repelling production. The lines meet the requirements of UL and CSA (UL10493/20549; cULus).
