Name: Escha 8045239 Sensor/actuator cable 10.0 m No. of pins (RJ): 4 1 pc(s)
Brand: Escha
SKU: 3553415
Availability: BackOrder

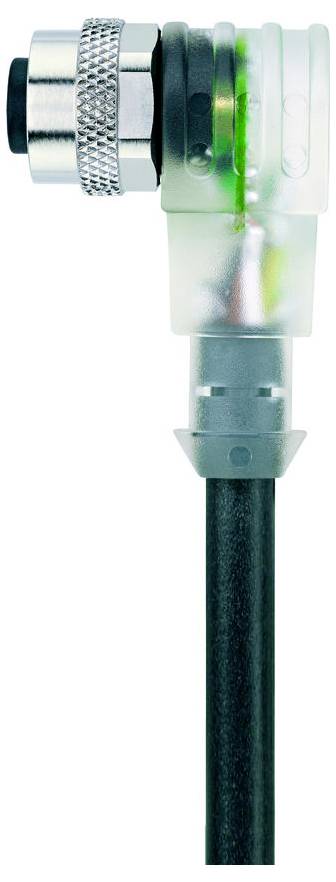

A close-up of a mechanical connector with a knurled metal ring and a cable attached, showing green internal wiring.

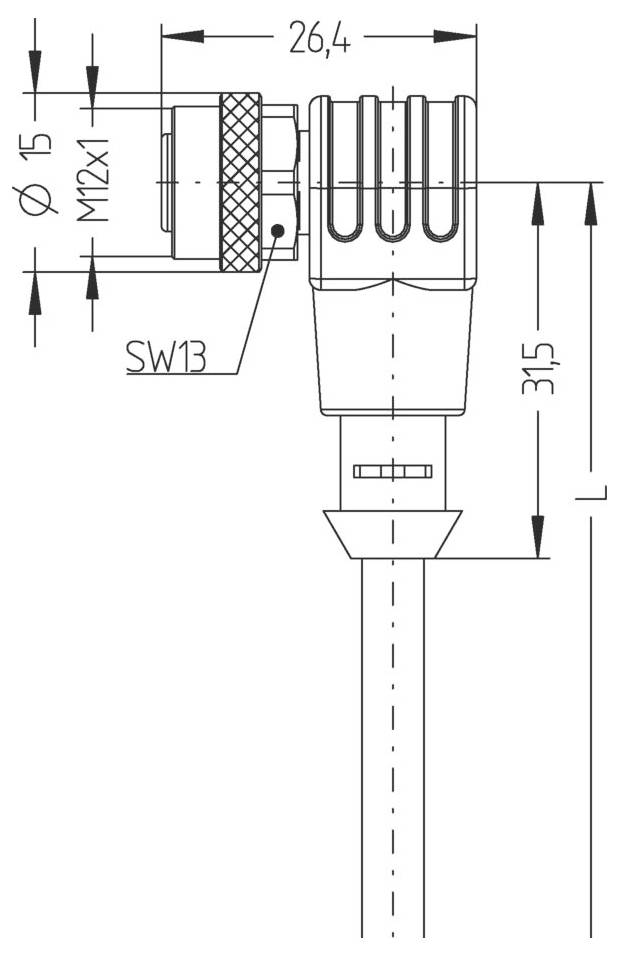

'Technical drawing of a cylindrical connector with dimensions: diameter 15, length 315, width 26.4, and thread M12x1.'

'Circular diagram with four numbered sections arranged around a central circle, arrows pointing to an output at the bottom.'

1/3

Product type

Sensor/actuator cable

Connection side A

M12 socket, right angle

Connection side B

Cable, open end

No. of pins

Cable length

10.0 m

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 35.99 / piece)

€ 35.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Rated voltage: 30V
Insulation resistance ≥108 Ω
Material seal (bush): FPM/FKM
Material of grip body: Plastic, TPU, transparent
Material contacts: Metal, CuZn, gold-plated
Material contact carrier: Plastic, TPU, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-101 standard
Pin assignment:1 BN 2 WH, 3 BU, 4 BK
Number of pins: 4
Protection type (mounted): IP65, IP67, IP68
Plug connector: Socket, angled M12, with LED
Current load capacity per pin (at 40°C): 4.0 A
Ambient temperature: -30°C...+90°C
Pollution level 3
WIRE COLORS: BN, WH, BU, BK
Wire cross-section 4 x 0.34 mm²
Outer diameter of sheath 4.70 mm
Special properties: Flame-resistant, halogen-free, hydrolysis-resistant, LABS-free, oil-resistant, Ozone-resistant, recyclable, RoHS-compliant, acid and alkali-resistant, drag-chain compatible, Sweat-resistant, seawater resistant, silicone-free, torsion-resistant, UV-resistant
Bending radius (moving) 10 x Ø-cable
Bending radius (fixed) 5 x Ø-cable
Halogen-free: Yes
LINE QUALITY S370, PUR, UL
Wire composition 42 x 0.10 mm
Sheath color: BK, similar to RAL9005
Material wire insulation: PP
Material cable jacket: PUR
Nominal voltage cable ≤300 V
Drag chain insert: 5 MIO. Cycles
Temperature range (drag chain): -25°C…+60°C.
Temperature range (moving): -30°C...+90°C.
Temperature range (fixed): -40°C...+90°C.
Torsion: +/-360°/m, ≥ 2 MIO. Cycles
Coding: A
Constant resistance 5 mΩ
End set: Open cable ends
Material over-throw: Metal, CuZn, nickel-plated
Switching logic PNP
Operating voltage display LED GN
Switching status display LED YE

Type: AL-WWAK4P2-10/S370

Product type: Sensor/actuator cable

Connection side A: M12 socket, right angle

Connection side B: Cable, open end

No. of pins: 4

Cable length: 10.0 m

Nominal voltage: 30 V

Nominal current: 4.0 A

Nominal current - rounded value: 4 A

Coding: A

Contact material: CuZn

Manufacturer part #: 8045239

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3553415 Escha 8045239 Sensor/actuator cable 10.0 m No. of pins (RJ): 4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553415 Escha 8045239 Sensor/actuator cable 10.0 m No. of pins (RJ): 4 1 pc(s)

Description

Flexible, silicone and halogen-free control cable with high mechanical strength. The cable is resistant to chemicals, hydrolysis and microbes. The drag chain insert is at a bending radius of min. 10xd is possible. Due to its welding spark resistance, the wire is very well suitable for flexible use in the field of robot technology, machine tools and chip-repelling production. The lines meet the requirements of UL and CSA (UL10493/20549; cULus).
