Escha 8045419 AL-SWKP3P2-5/S370

A black cable with a transparent, right-angled connector. The connector reveals internal wires and a metal fastening screw.

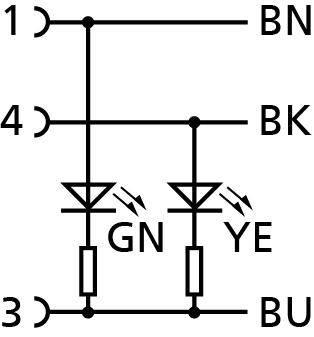

Circuit diagram shows four terminals (1, 3, 4, BN, BK) and two diodes ('GN', 'YE'). Lines connect terminals, with resistors parallel to diodes.
Pie chart with three numbers: 3, 4, 1.
Technical drawing of a hose with specific dimensions in millimetres: Ø 9.6, M8x1, SW 9, length 235.
1/4
Product type
Sensor/actuator connector (pre-fab)
Connector type
Socket, right angle
Connector standard
Sensor connector
Connection side A
Cable, open end
Connection side B
Customisable
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
3 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 13.99 / piece)
€ 13.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 3 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Escha 8045419 AL-SWKP3P2-5/S370

Our service for you

  • 'PC T' Logo in Black and White with a Stylised 'C' Encircling the 'P'.
  • 'CRAUS' logo in stylised lettering, predominantly in capital letters, on a white background.
  • 'HF Halogen-Free' label, indicating that the product contains no halogen substances.

Technical specifications

Type

AL-SWKP3P2-5/S370

Product type

Sensor/actuator connector (pre-fab)

Connector type

Socket, right angle

Connector standard

Sensor connector

Connection side A

Cable, open end

Connection side B

Customisable

No. of pins

3

Cable length

5.00 m

Jacket material

PUR

Nominal voltage

60 V

Nominal current

4 A

Nominal current - rounded value

4 A

Cross-section (sensor/actuator wiring)

0.25 mm²

Connection

Open end cable

Thread type connection side

M8

Cable colour

Grey

Coding

A

Contact material

CuSn

Contact surface

Gold plated

IP67/IP69K

Features

Halogen-free

flame-retardant

Ozone-resistant

Acid-resistant/non-caustic

Corrosion-resistant

UV-resistant

Twistable

Silicone-free

Oil-resistant

+ LED

Min. temperature

-30 °C

Max. temperature

+90 °C

Seal type

Screw-on

Manufacturer part #

8045419

Content

1 pc(s)

RoHS-compliant

Yes

Documents & Downloads

Datasheet

Datasheet 717981 Escha 8045419 AL-SWKP3P2-5/S370

User & Safety Instructions

User & Safety Instructions 717981 Escha 8045419 AL-SWKP3P2-5/S370
